Xerox Phaser 6180MFP Service Manual

5-46 Phaser 6180MFP Multifunction Printer Service Manual
Print-Quality Troubleshooting
Defects in One Color (C, M, Y, or K)
Only one color (Cyan, Magenta, Yellow, or Black) is too light on the printed
image.
Initial Actions
■ Check the paper transfer path.
■ Ensure there are no debris on the transfer path
Troubleshooting Reference Table

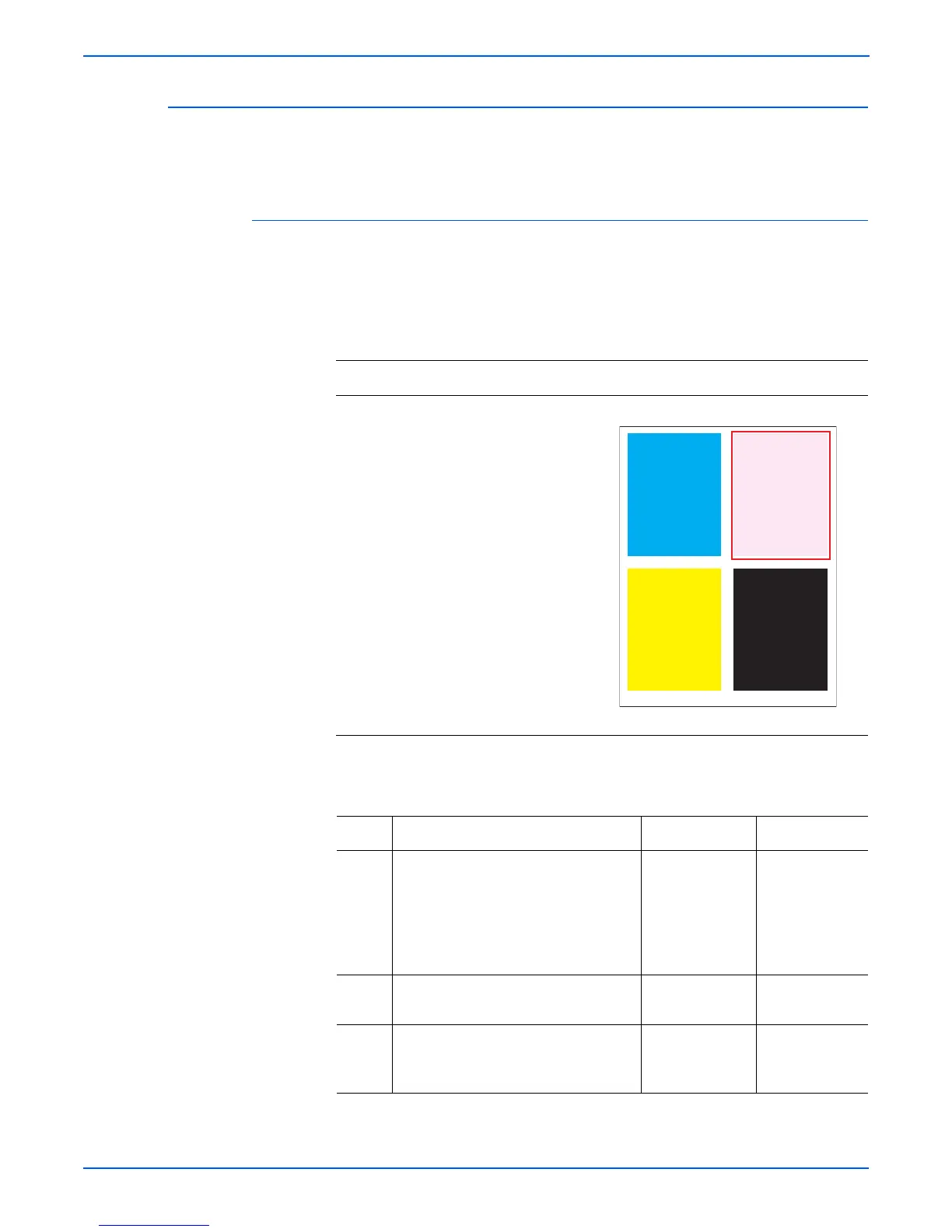

Applicable Parts Example Print
■ Laser Unit, PL5.1.12
■ Print Cartridge (C/M/Y/K)
PL5.1.17-20
■ HVPS, PL5.2.15
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 1.Perform Test Print (Cyan 20%,
Magenta 20%, Yellow 20%, or Black
20%): Service Mode > Printer Diag
> Test Print.
2.Does the error still occur when
printing?
Go to step 2. Complete.
2 1.Check the Print Cartridge (C/M/Y/K).
2.Is there a faint toner?
Go to step 3. Complete.
3 1.Check the Print Cartridge (C/M/Y/K)
for damages.
2.Is the Print Cartridge damaged?
Replace the
Print Cartridge
(page 8-11).
Go to step 4.
Light Print (One Color)

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
