Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 8-25
Service Parts Disassembly

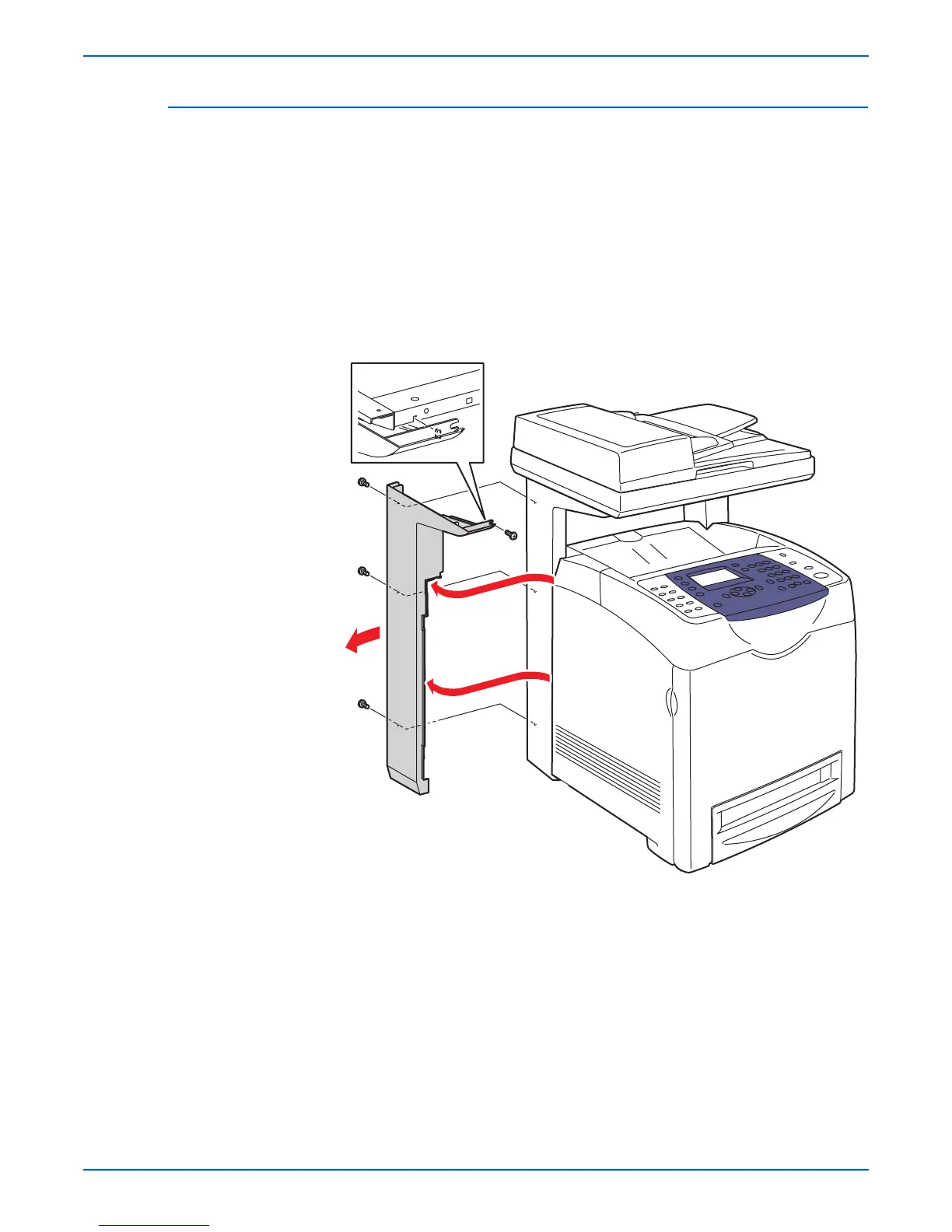

Left Pole Cover (PL1.1.11)
1. Remove the Rear Cover (page 8-18).
2. Remove the Bottom Cover (page 8-19).
3. Remove the Left Pole Inner Cover (page 8-24).
4. Remove 4 screws (6 mm) securing the Left Pole Cover.
5. Release the notches on the screw mounting positions on the front section
of the Left Pole Cover.
6. Slide the rear section of the Left Pole Cover outward.
7. Release the rim on the front section of the Left Pole Cover from the Top
Cover (PL1.1.1) and from the inside of the Left Cover (PL1.1.10). Remove
the Left Pole Cover.
s6180mfp-243
