Phaser 6180MFP Multifunction Printer Service Manual 8-9
Service Parts Disassembly
Maintenance Items and Consumables
Maintenance and Consumable items include the Transfer Unit, Fuser, and
Feed/Retard Rollers. Consumables consist of the four print cartridges.
Transfer Unit (PL4.1.1)
Caution
Do not touch the Transfer Unit belt area.
1. Open the Front Cover (PL13.2.1).

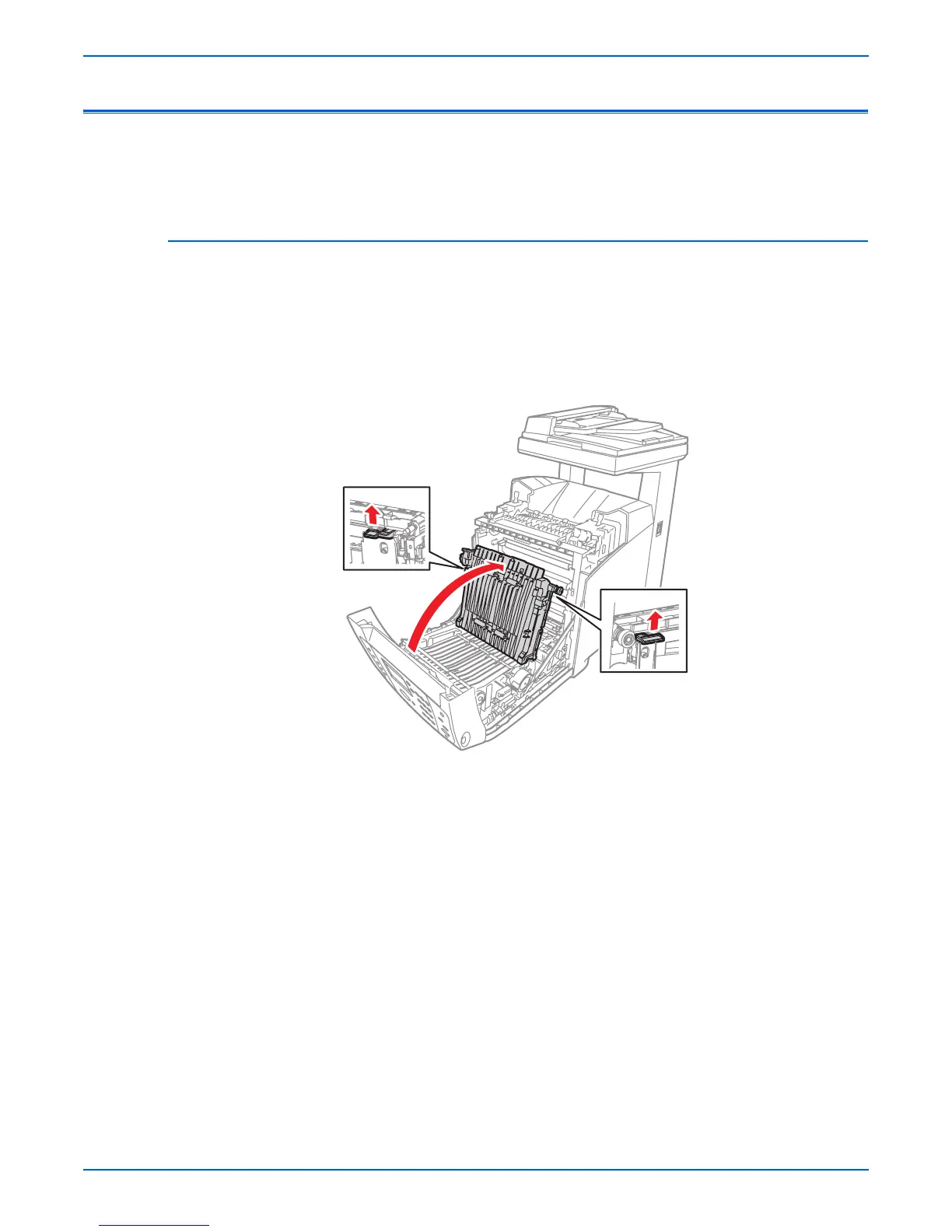

2. Release the levers on the left and right sides of the Transfer Unit and lift
the Transfer Unit at a 90° angle.
s6180mfp-124
To Next Page
