Xerox Phaser 6180MFP Service Manual

8-10 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly

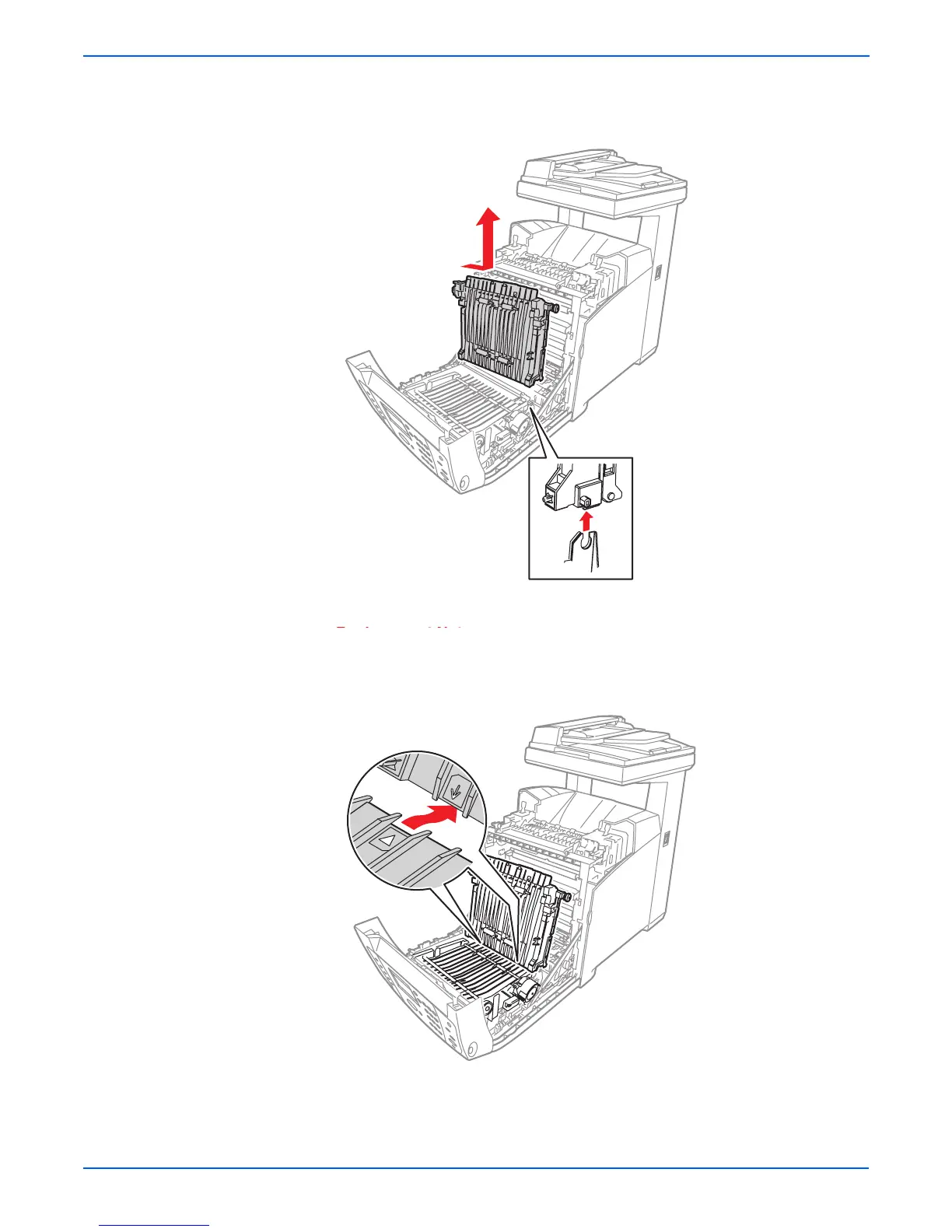

3. Tilt the right side of the Transfer Unit up toward the left side to move the
notch out of the U-shape groove and slide the notch on the left side away
from the hole.
R
ep
l
acemen
t
N
o
t
e
R
ep
l
acemen
t
N
o
t
e
If there is a Duplex Unit installed, be sure to align the arrows on the
bottom of the Transfer Unit with the arrows on top of the Duplex Unit.
s6180mfp-125
s6180mfp-205
