Xerox Phaser 6180MFP Service Manual

5-48 Phaser 6180MFP Multifunction Printer Service Manual
Print-Quality Troubleshooting
Repeating Bands, Lines, Marks, or Spots
There are recurring lines, marks, or spots on the page.
Initial Actions
■ Check the paper transfer path.
■ Ensure there are no debris on the transfer path.
W
arn
i
ng
Ensure to wait for the Fuser to cool down before starting the procedure.
Troubleshooting Reference Table

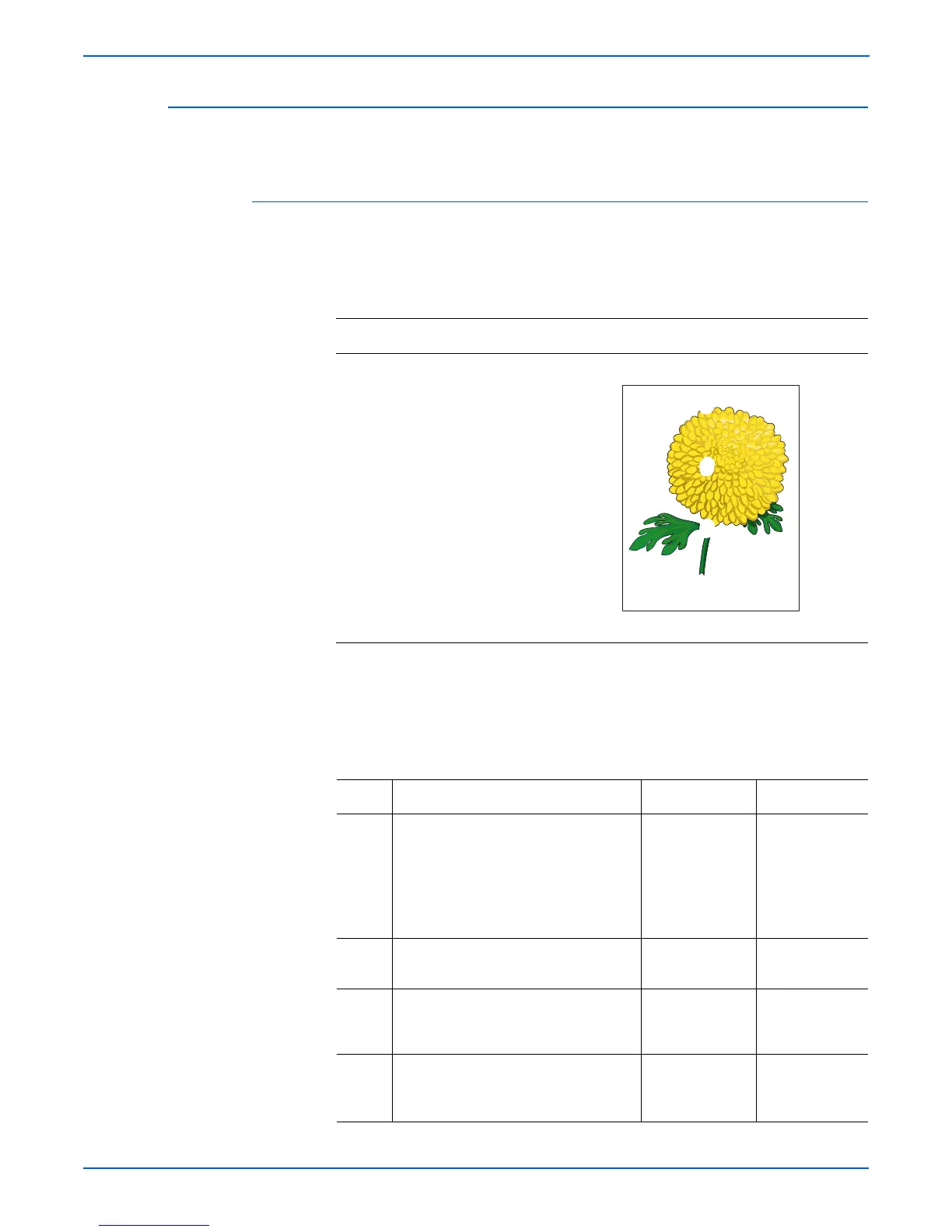

Applicable Parts Example Print
■ Transfer Unit, PL4.1.1
■ Laser Unit, PL5.1.12
■ Print Cartridge (C/M/Y/K),
PL5.1.17-20
■ Scanner Controller Board, PL9.1.1
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 1.Perform Test Print (Cyan 20%,
Magenta 20%, Yellow 20%, or Black
20%): Service Mode > Printer Diag
> Test Print.
2.Does the error still occur when
printing?
Go to step 6. Complete.
2 1.Perform a copy job.
2.Does the error still occur?
Go to step 3. Complete.
3 Is the original document normal? Go to step 4. Replace the
original
document.
4 1.Check the document path.
2.Are there any debris on the
document path?
Remove the
debris.
Go to step 5.
Repeating Defects

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
