Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 8-125
Service Parts Disassembly
Tray 3 Right Guide (PL13.3.11)
1. Remove the Optional 550-Sheet Feeder (page 8-116).
2. Remove the Tray 3 Rear Cover (page 8-118).
3. Remove the Optional Feeder Assembly (page 8-117).
4. Remove the Front Right Cover (page 8-121).
5. Remove the Tray 3 OPF Right Cover (page 8-122).
6. Remove the Tray 3 Size Switch (page 8-129).
7. Remove 1 screw (8 mm) securing the Tray 3 Tray Guide to the Optional
Frame Assembly (PL13.3.1).

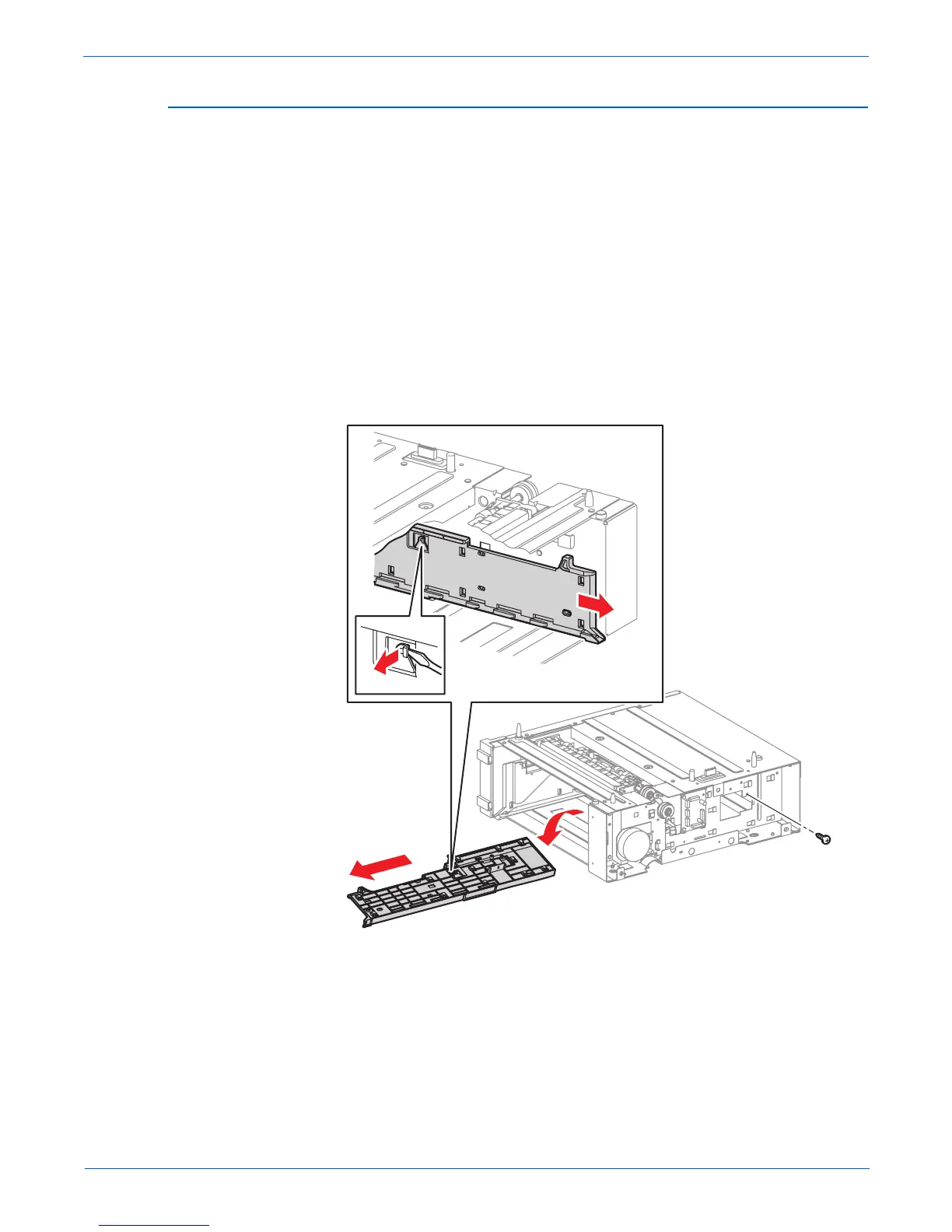

8. Use a small screwdriver to release the notch on the Tray 3 Right Guide.
Shift the Tray 3 Right Guide toward the front to release the 12 hooks on
the Tray 3 Right Guide from the Optional Frame Assembly.
9. Tilt the Tray 3 Right Guide toward the inside and remove the Tray 3 Right
Guide from the Optional Frame Assembly.
s6180mfp-420

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
