8-118 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly
Tray 3 Rear Cover (PL13.2.3)
1. Remove the Tray 2 Rear Cover (page 8-33).
2. Remove Tray 3 from the Optional 550-Sheet Feeder.
3. Pull the Tray 3 Cover backward until it stops.

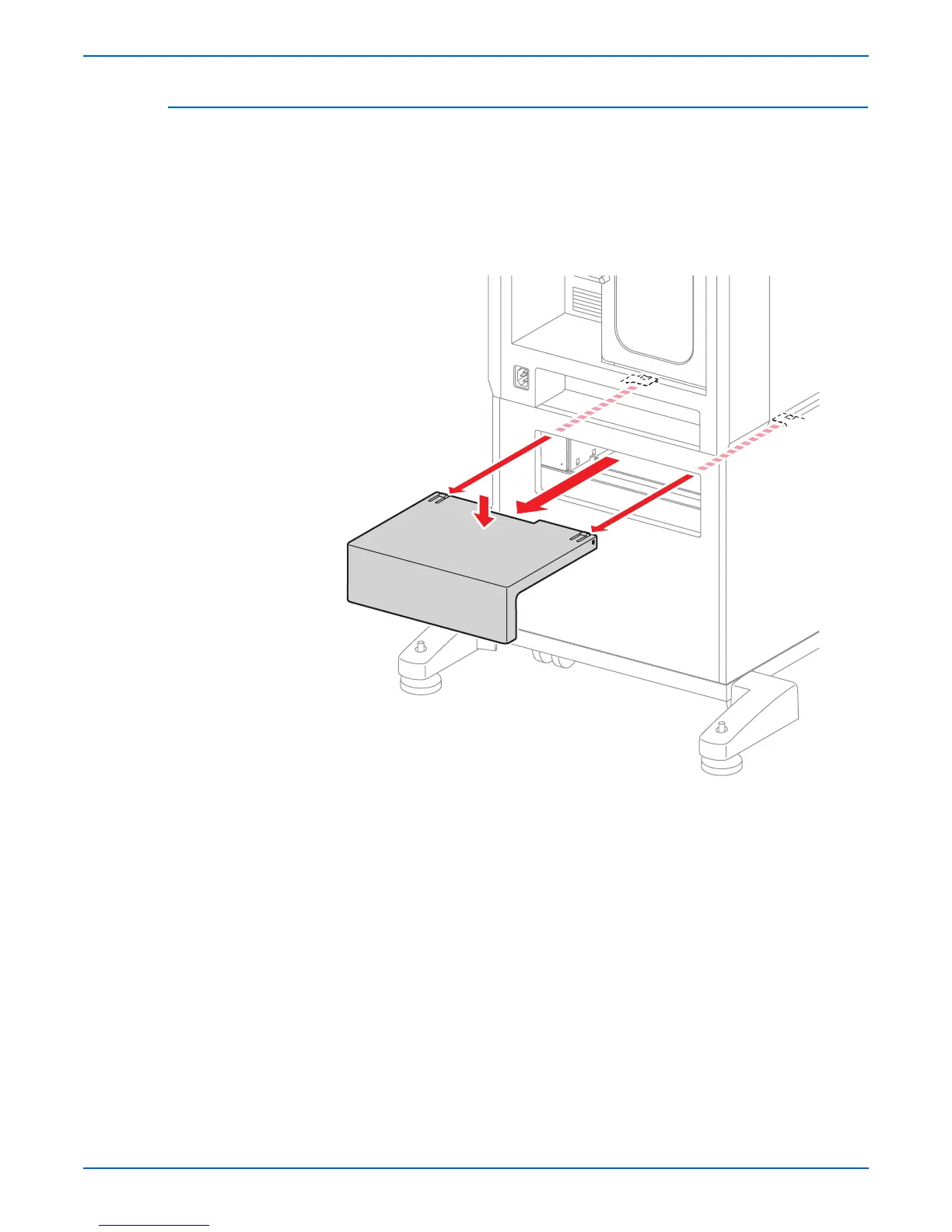

4. Press the center part of the Tray 3 Cover to release the 2 hooks (on the
left and right sides), and remove the Tray 3 Cover from the Optional 550-
Sheet Feeder.
s6180mfp-335
