Phaser 6180MFP Multifunction Printer Service Manual 8-69
Service Parts Disassembly
Frame

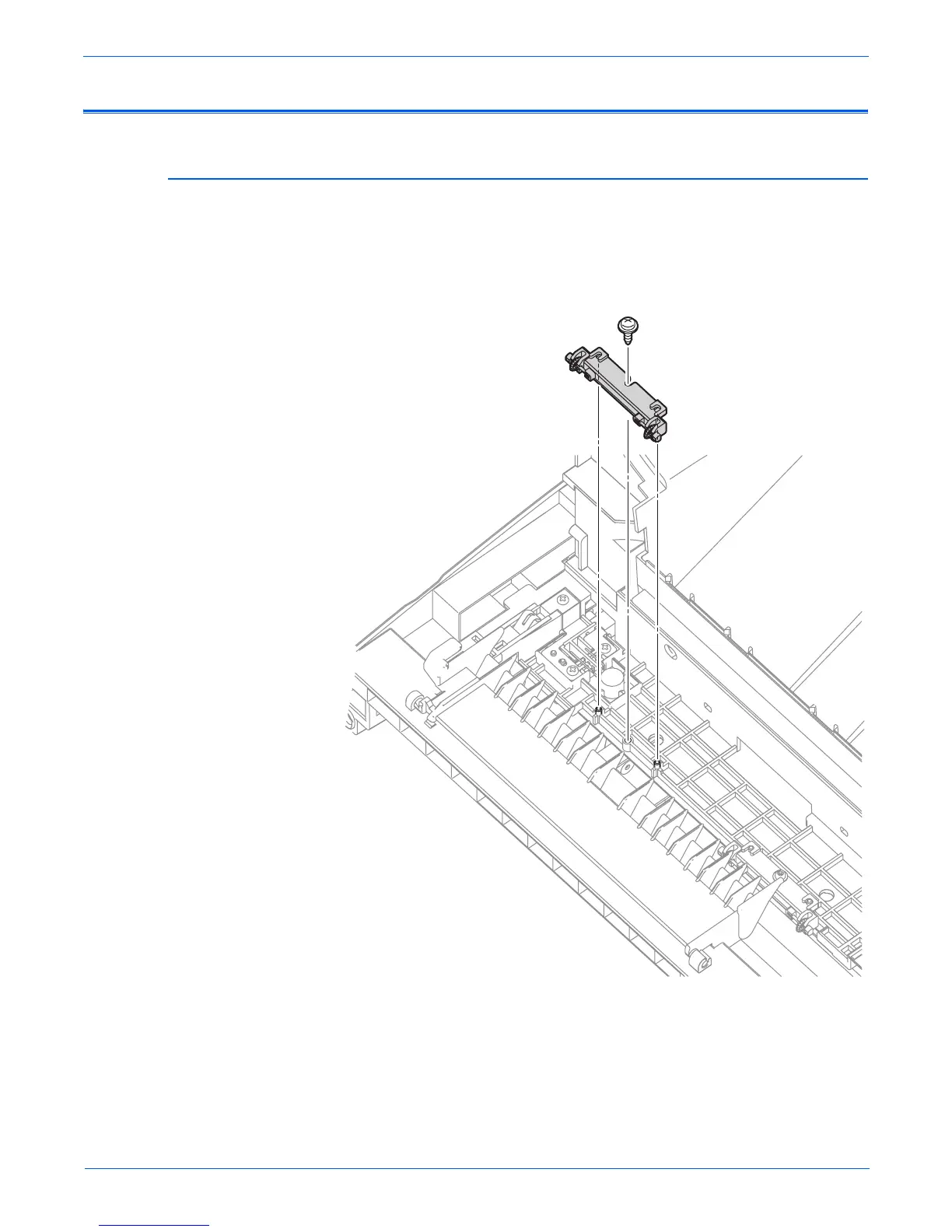

Star Wheel (Spur Assembly)(PL7.1.1)
1. Open the Front Cover.
2. Remove the Fuser (page 8-12).
3. Remove 1 screw (8 mm, flanged) securing the Star Wheel to the printer.
4. Remove the Star Wheel.
s6180mfp-300
