Xerox Phaser 6180MFP Service Manual

8-14 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly

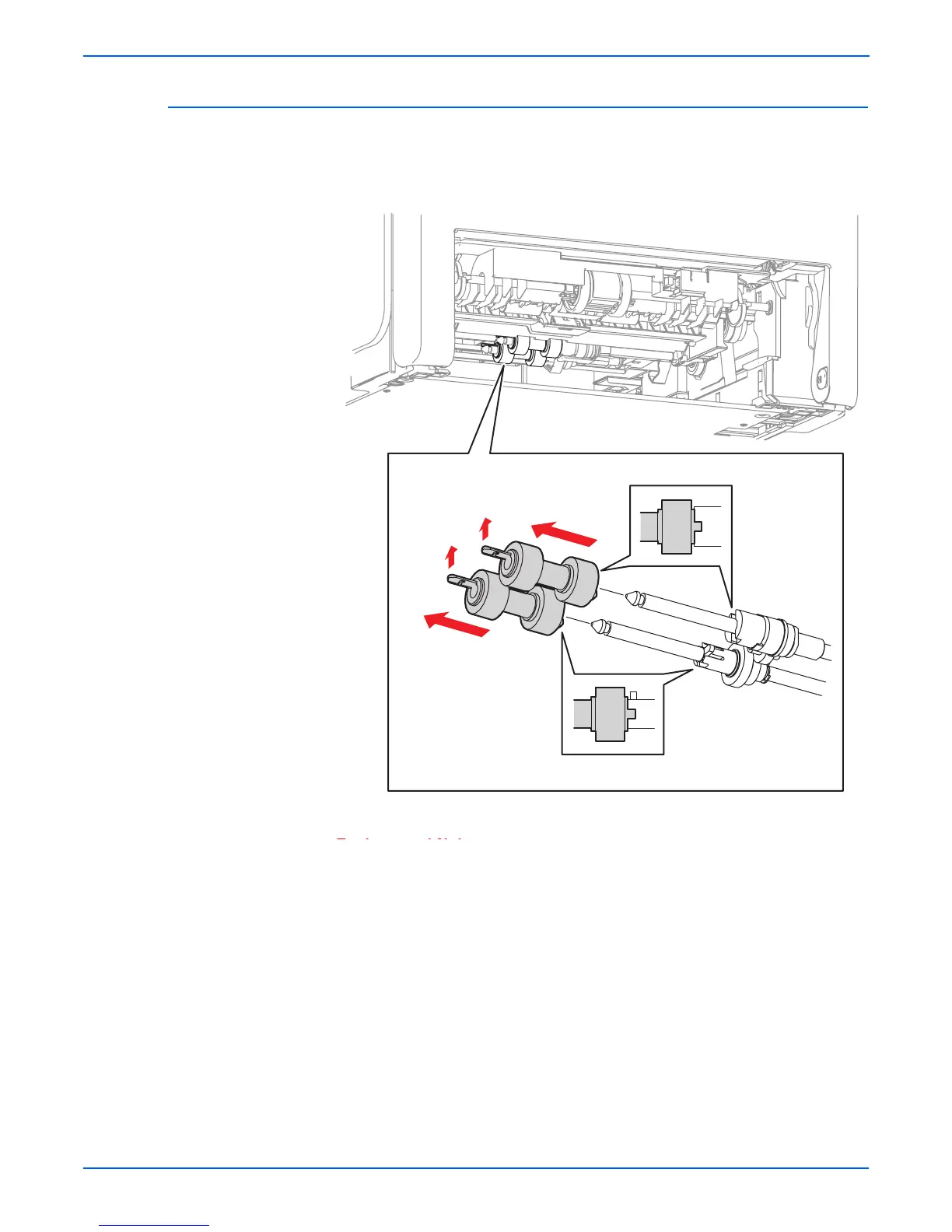

Tray 2 Feed Roller (PL3.2.53)
1. Remove Tray 2.
2. Release the hooks on the Tray 2 Feed Rollers and remove the Feed
Rollers from the Shafts.
R
ep
l
acemen
t
N
o
t
e
R
ep
l
acemen
t
N
o
t
e
Be sure to align the convex section of the Tray 2 Feed Roll with the
concave section of the Nudger Roll Gear (PL3.2.46) and the Oneway
Feed Clutch (PL3.2.52).
s6180mfp-207
