Phaser 6180MFP Multifunction Printer Service Manual 8-57
Service Parts Disassembly

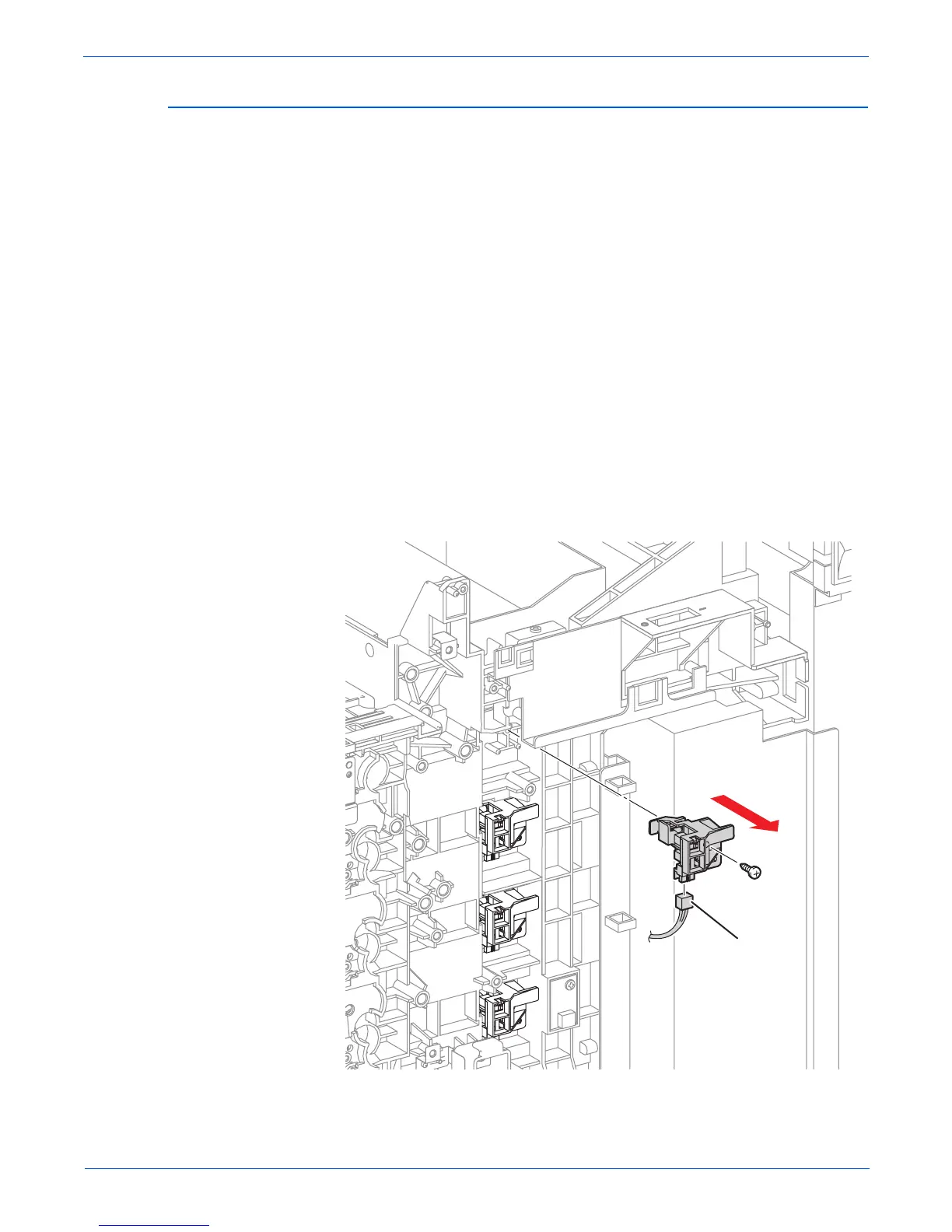

Print Cartridge Sensor Assembly (Black) (PL5.2.2)
1. Open the Front Cover.
2. Remove the Fuser (page 8-12).
3. Remove the Rear Cover (page 8-18).
4. Remove the Bottom Cover (page 8-19).
5. Remove Right Pole Inner Cover (page 8-21).
6. Remove the Right Pole Cover (page 8-22).
7. Remove the Right Cover (page 8-23).
8. Remove the Left Pole Inner Cover (page 8-24).
9. Remove the Left Pole Cover (page 8-25).
10. Remove the Left Cover (page 8-26).
11. Remove the Top Cover (page 8-27).
12. Remove the Interlock Switch (page 8-82).
13. Remove the Main Drive (page 8-75).
14. Remove 1 screw (10 mm) securing the Black Print Cartridge Sensor
Assembly to the printer.
15. Remove the Black Print Cartridge Sensor Assembly.
16. Disconnect the Black Print Cartridge Sensor Assembly connector P/J193.
s6180mfp-288
P/J193
