Xerox Phaser 6180MFP Service Manual

8-102 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly

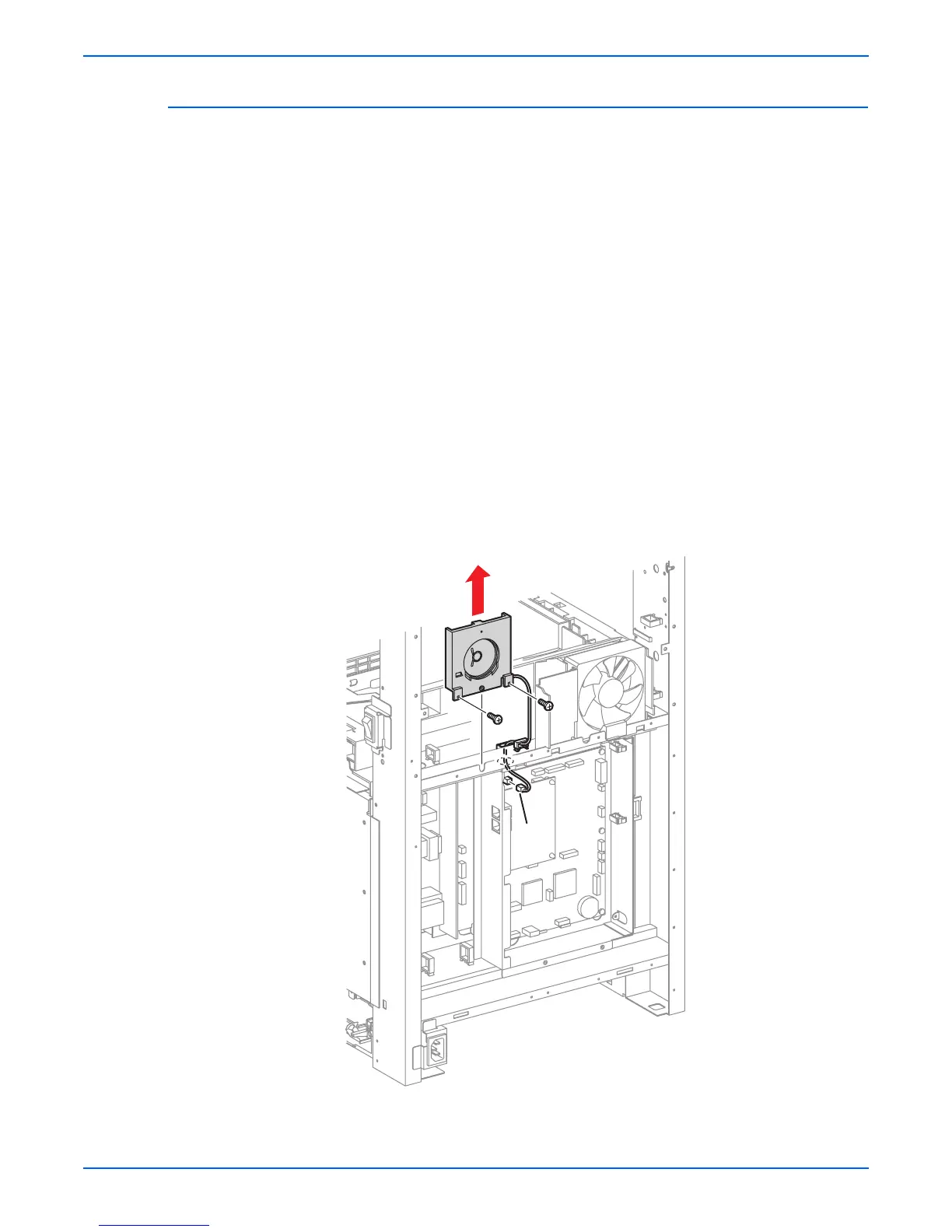

Speaker Assembly (PL9.2.6)
1. Open the Front Cover.
2. Remove the Fuser.
3. Remove the Rear Cover (page 8-18).
4. Remove the Bottom Cover (page 8-19).
5. Remove the Right Pole Inner Cover (page 8-21).
6. Remove the Right Pole Cover (page 8-22).
7. Remove the Right Cover (page 8-23).
8. Remove the Left Pole Inner Cover (page 8-24).
9. Remove the Left Pole Cover (page 8-25).
10. Remove the Left Cover (page 8-26).
11. Remove the Top Cover (page 8-27).
12. Remove the Controller Shield Box Assembly (page 8-92).
13. Disconnect the Speaker Assembly connector P/J52 from the Scanner
Controller Board (PL9.1.1).
14. Release the Speaker Assembly wiring harness from the 2 clamps and pull
them out of the hole on the printer.
15. Remove 2 screws (6 mm) securing the Speaker Assembly to the printer.
16. Slide the Speaker Assembly upward to remove it.
s6180mfp-327
P/J52
