Phaser 6180MFP Multifunction Printer Service Manual 8-117
Service Parts Disassembly
Optional Feeder Assembly (PL13.2.8)
1. Remove the Optional 550-Sheet Feeder (page 8-116).
2. Remove the Tray 3 Rear Cover (page 8-118).

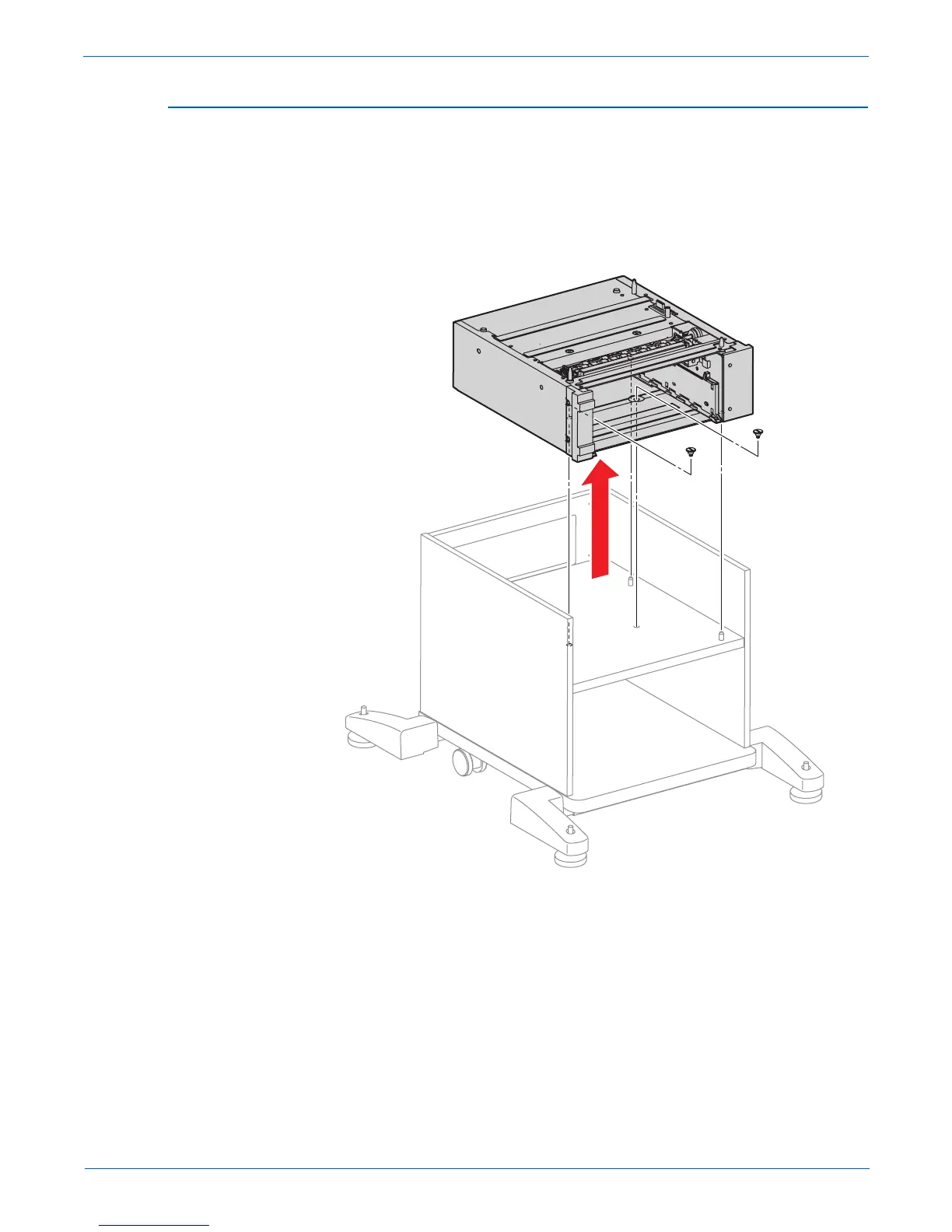

3. Remove 2 Joint screws securing the Optional Feeder Assembly to the
Cart Assembly (PL13.1.5).
4. Lift up the Optional Feeder Assembly to separate it from the Cart
Assembly.
s6180mfp-415
