8-120 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly
Tray 3 OPF Left Cover (PL13.2.2)
1. Remove the Optional 550-Sheet Feeder (page 8-116).
2. Remove the Tray 3 Rear Cover (page 8-118).
3. Remove the Optional Feeder Assembly (page 8-117).
4. Remove the Tray 3 Front Left Cover (page 8-119).
5. Rotate the Optional Feeder Assembly 90° from left to right.

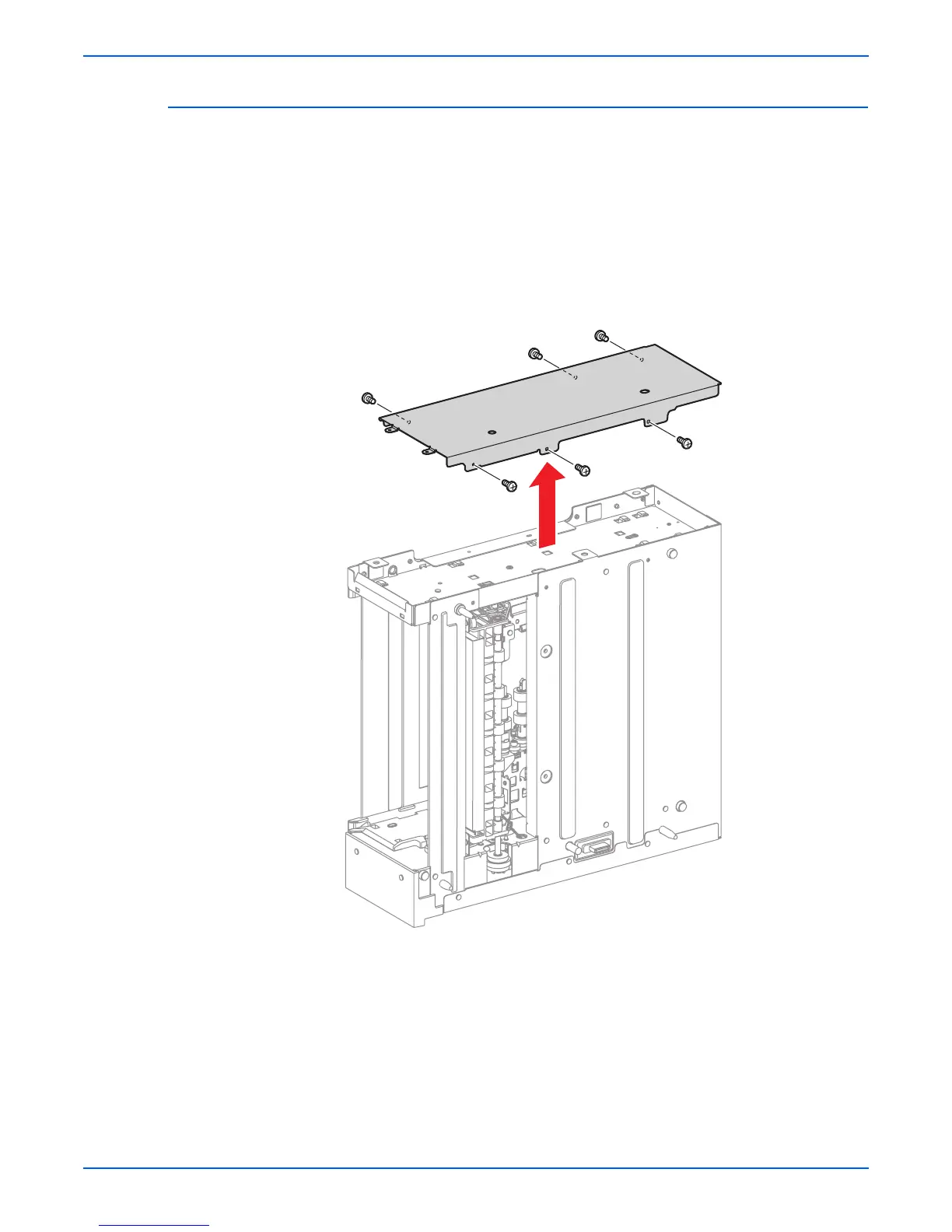

6. Remove 6 screws (6 mm) securing the Tray 3 Left Cover to the Optional
Frame Assembly (PL13.3.1).
7. Remove the Tray 3 Left Cover from the Optional Frame Assembly.
s6180mfp-417
To Next Page
