Phaser 6180MFP Multifunction Printer Service Manual 8-63
Service Parts Disassembly
LED Assembly (PL5.2.13)
1. Open the Front Cover.
2. Remove the Fuser (page 8-12).
3. Remove the Rear Cover (page 8-18).
4. Remove the Bottom Cover (page 8-19).
5. Remove the Left Pole Inner Cover (page 8-24).
6. Remove the Left Pole Cover (page 8-25).
7. Remove the Left Cover (page 8-26).

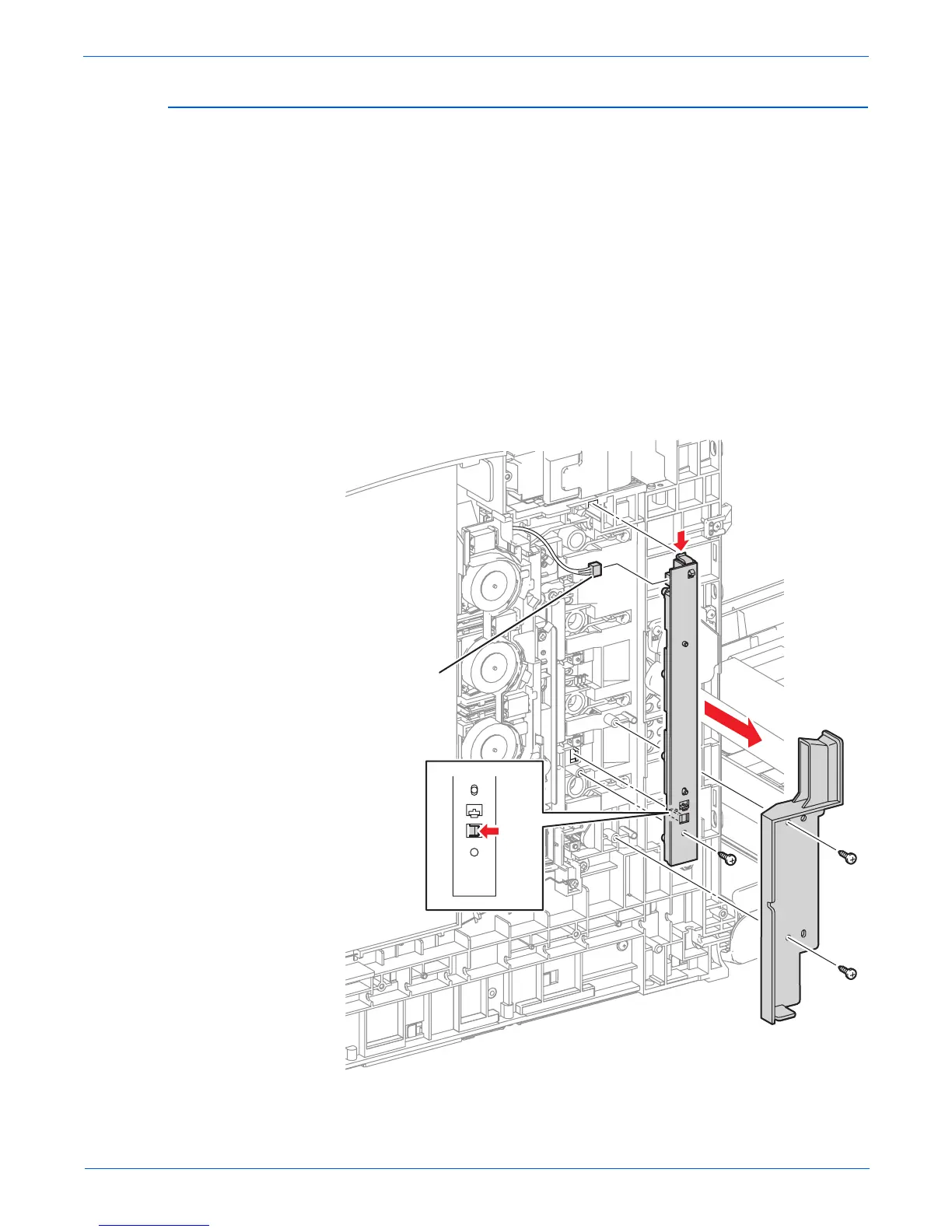

8. Remove 2 screws (8 mm) securing the Left Side Duct (PL7.1.23) and
remove the Duct.
9. Remove 1 screw (10 mm) securing the LED Assembly.
10. Release the 2 hooks securing the LED Assembly and remove the LED
Assembly.
11. Disconnect the LED connector P/J141.
s6180mfp-294
P/J141
To Next Page
