Phaser 6180MFP Multifunction Printer Service Manual 2-17
Theory of Operation
Paper Path Components

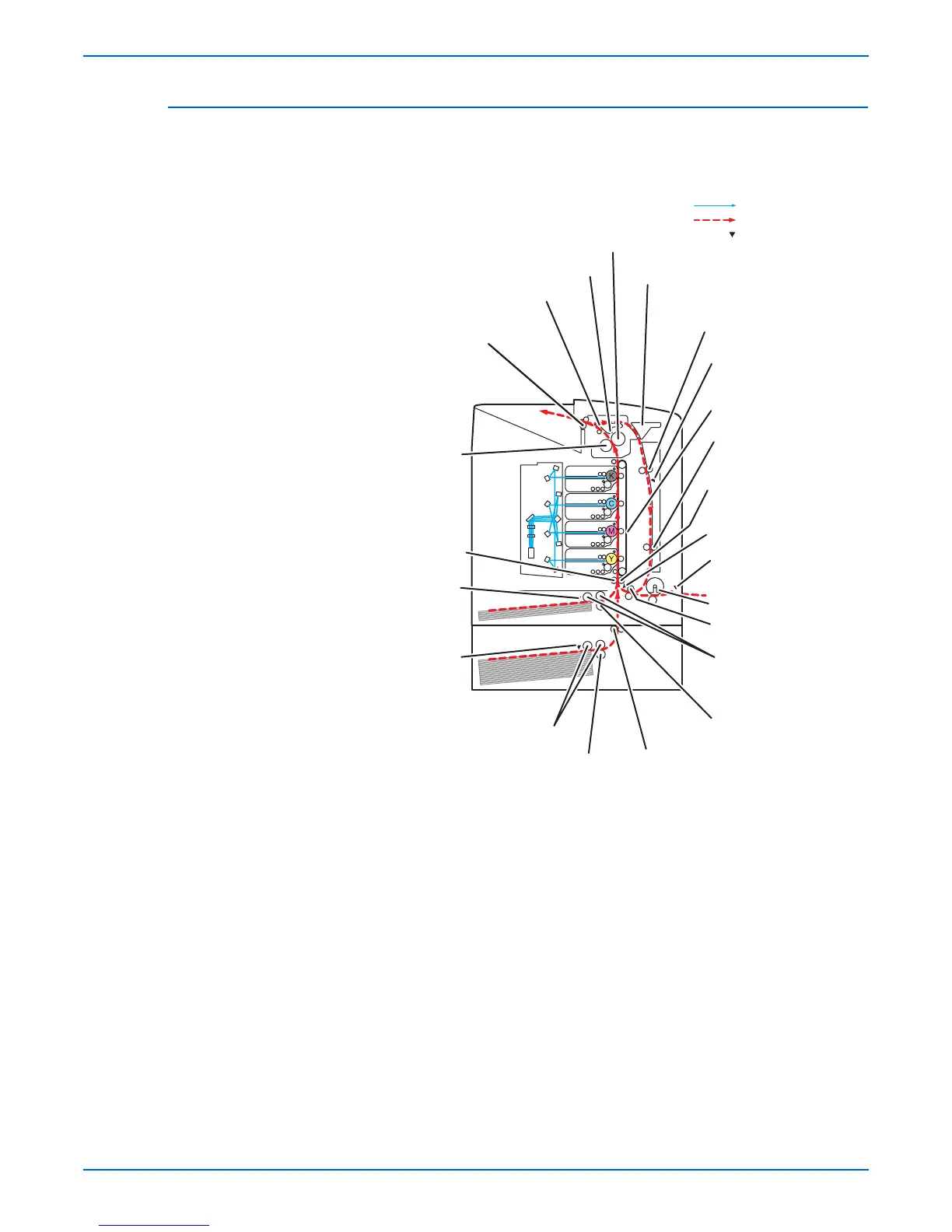

Paper path components for the printer and the Optional 550-Sheet Feeder are
shown in the following figure.
Laser Beam
Paper Transfer
Paper Sensors
Exit Roller (Fuser)
Duplex Gate (Fuser)
Exit Sensor (Fuser)
Pressure Belt (Fuser)
Duplex Gate
Heat Roller (Fuser)
Duplex Roller
(Duplex Module)
Duplex Roller
(Duplex Module)
Duplex Jam Sensor
(Duplex Module)
Belt (Transfer Unit)
Regi Roller (Metal)
(Registration)
Regi Roller (Rubber)
(Registration)
Regi Sensor
(Registration)
No Paper Sensor
(250-Sheet
Feeder)
No Paper Sensor
(550-Sheet
Feeder)
Tray 1 (MPT)
No Paper Sensor
Tray 1 (MPT) Roller
Tray 1 (MPT)
Turn Roller
Feed Roller
(250-Sheet Feeder)
Tray 2 Retard Roller
(250-Sheet Feeder)
Turn Roller
(550-Sheet Feeder)
Tray 3 Retard Roller
(550-Sheet Feeder)
Feed Roller
(550-Sheet Feeder)
s6180mfp-040

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
