Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 2-79
Theory of Operation
Scanner Assembly
The scanning section consists of a Scanner Assembly that reads a single-
sheet document placed on the document glass, and an Automatic Document
Feeder (ADF) that conveys the pages of a multiple-sheet document.
The optical image reflected from the document reaches the Charged Coupled
Device (CCD) image sensor via the light path.
Scanning on Document Glass
The Scanner Assembly travels to read the document. The following
components are installed on the Scanner Assembly:
■ Exposure Lamp that illuminates light onto the document,
■ CCD Image Sensor that reads light reflected from the document, and
■ Lenses and mirrors comprising the light path for the optical image.

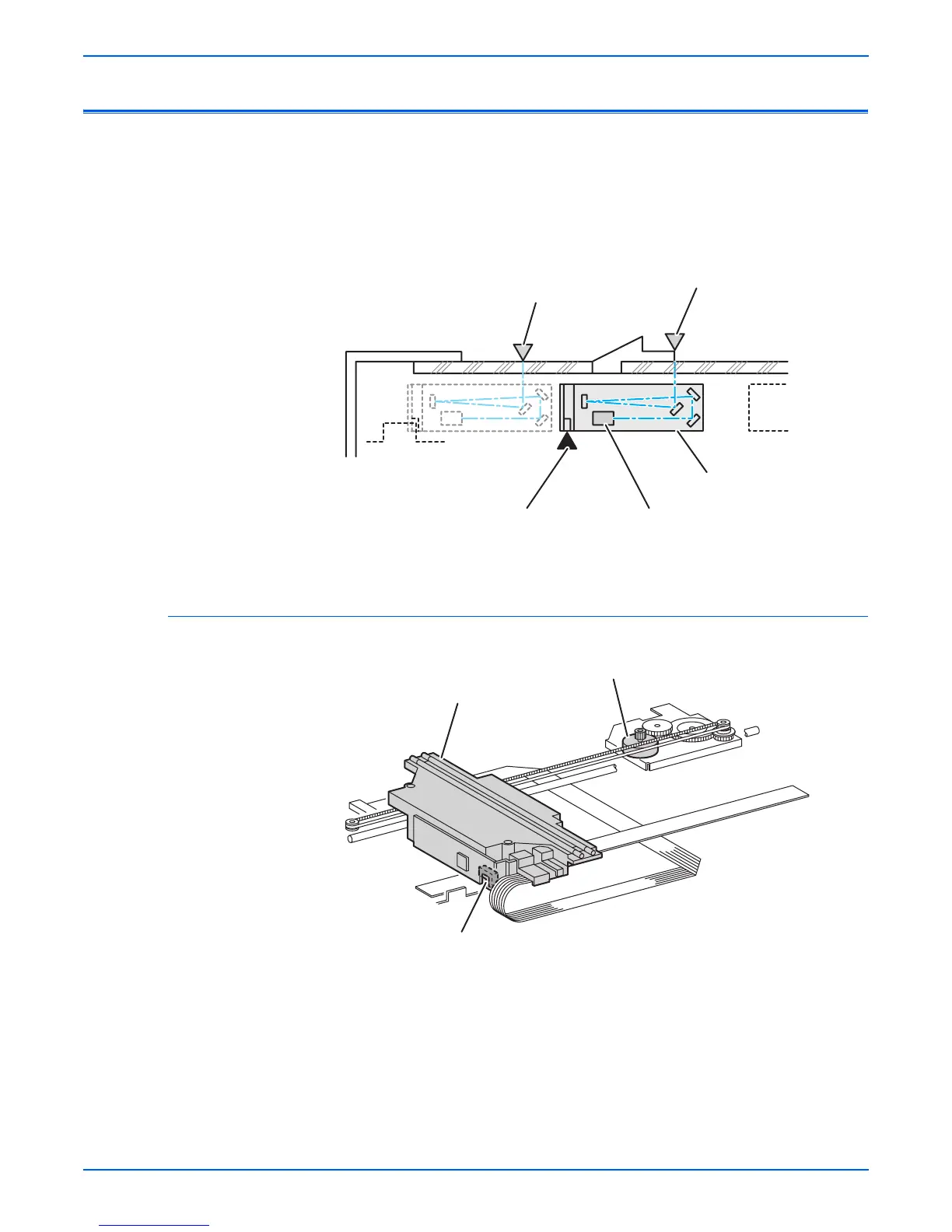

CVT Position
(Home Position)
Platen Registration Point
Scanner
Home Position Sensor
s6180mfp-087
CCD Image Sensor
Scanner Assy
s6180mfp-088
Scanner Assy
Scanner Home Position Sensor
Carriage Motor

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
