Xerox Phaser 6180MFP Service Manual

5-50 Phaser 6180MFP Multifunction Printer Service Manual
Print-Quality Troubleshooting
Residual Image or Ghosting
There are faint, ghostly images appearing on the page. The images may be
either from a previous page or from the page currently being printed.
Initial Actions
■ Check the paper transfer path.
■ Ensure there are no debris on the transfer path.
■ Verify the paper is within the printer specifications (refer to “Media and
Tray Specifications” on page 1-34).
W
arn
i
ng
Ensure to wait for the Fuser to cool down before starting the procedure.
Troubleshooting Reference Table

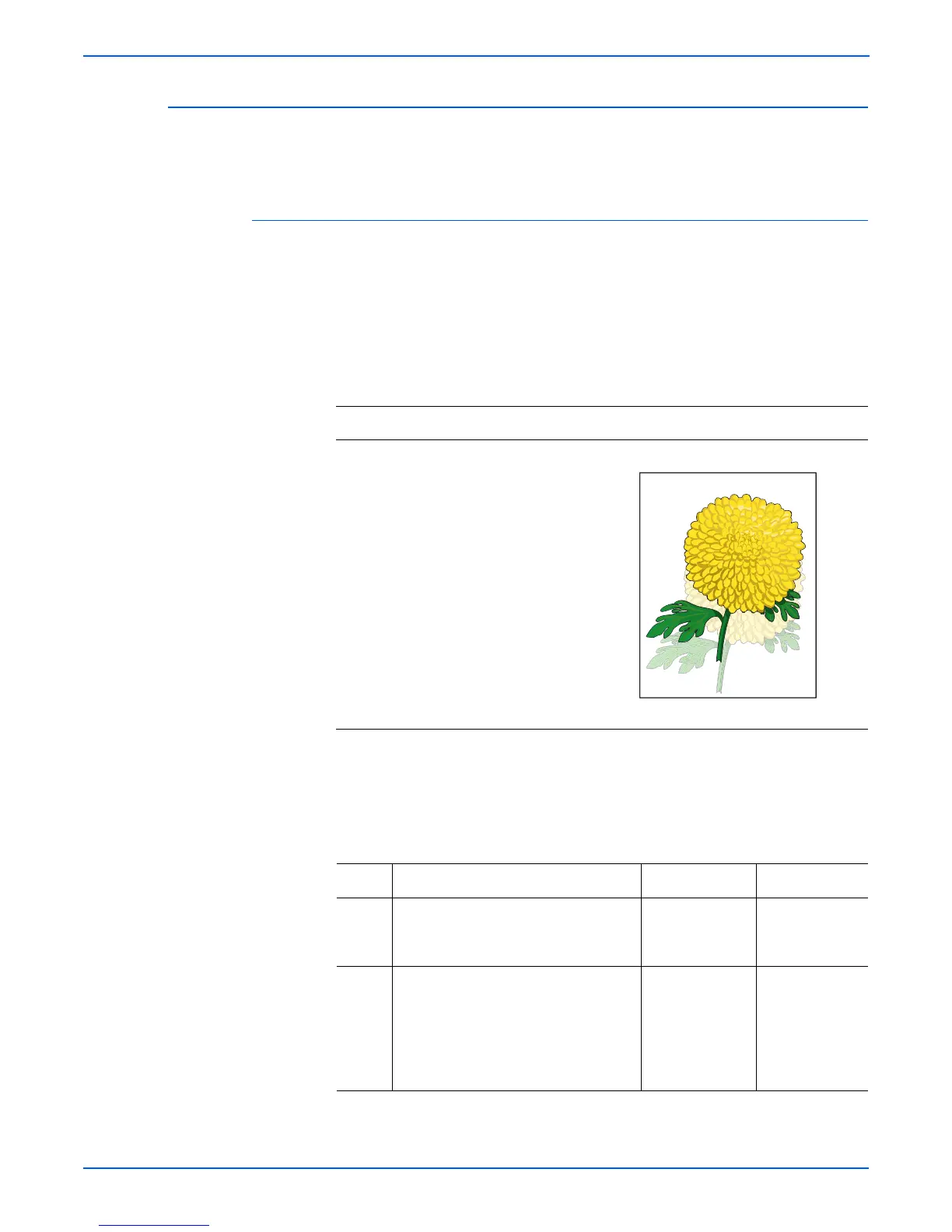

Applicable Parts Example Print
■ Transfer Unit, PL4.1.1
■ Print Cartridge (C/M/Y/K),
PL5.1.17-20
■ Fuser, PL6.1.10
■ Image Processor Board, PL9.1.20
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 1.Check the printing usage.
2.Did the user print the same image at
a large volume?
Go to step 2. Go to step 3.
2 1.Print a page including color
photograph. If not possible, perform
Test Print (Cyan 20%, Magenta
20%, Yellow 20%): Service Mode >
Printer Diag > Test Print.
2.Does the image quality improve?
Complete. Go to step 3.
Residual Image/Ghosting

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
