Theory of Operation
Paper Feeder
■ Tray 2 Feed Roller
The Feed Roller (Takeaway Roller) feeds the paper when the Feed Clutch
operates.
■ Tray 2 Feed Clutch
The Feed Clutch transmits drive energy from the Drive Assembly to the
Feed Roller.

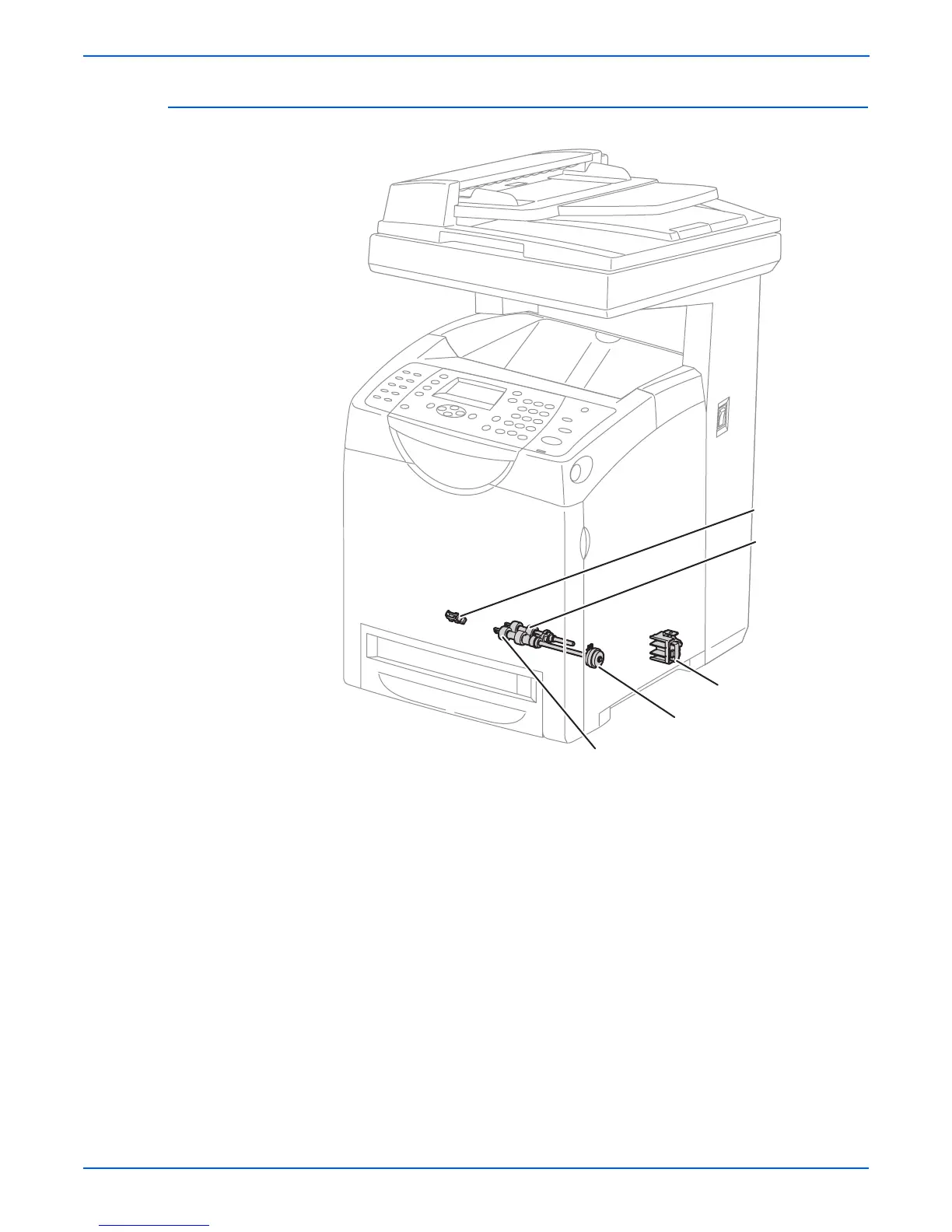

s6180mfp-143
No Paper Sensor
Feed Roller (Takeaway Roller)
Feed Roller
(Nudger Roller)
Feed Clutch
Tray 2 Paper Size Switch
