Xerox Phaser 6180MFP - Options; Duplex Unit (PL12.1.1)

Phaser 6180MFP Multifunction Printer Service Manual 8-115
Service Parts Disassembly
Options

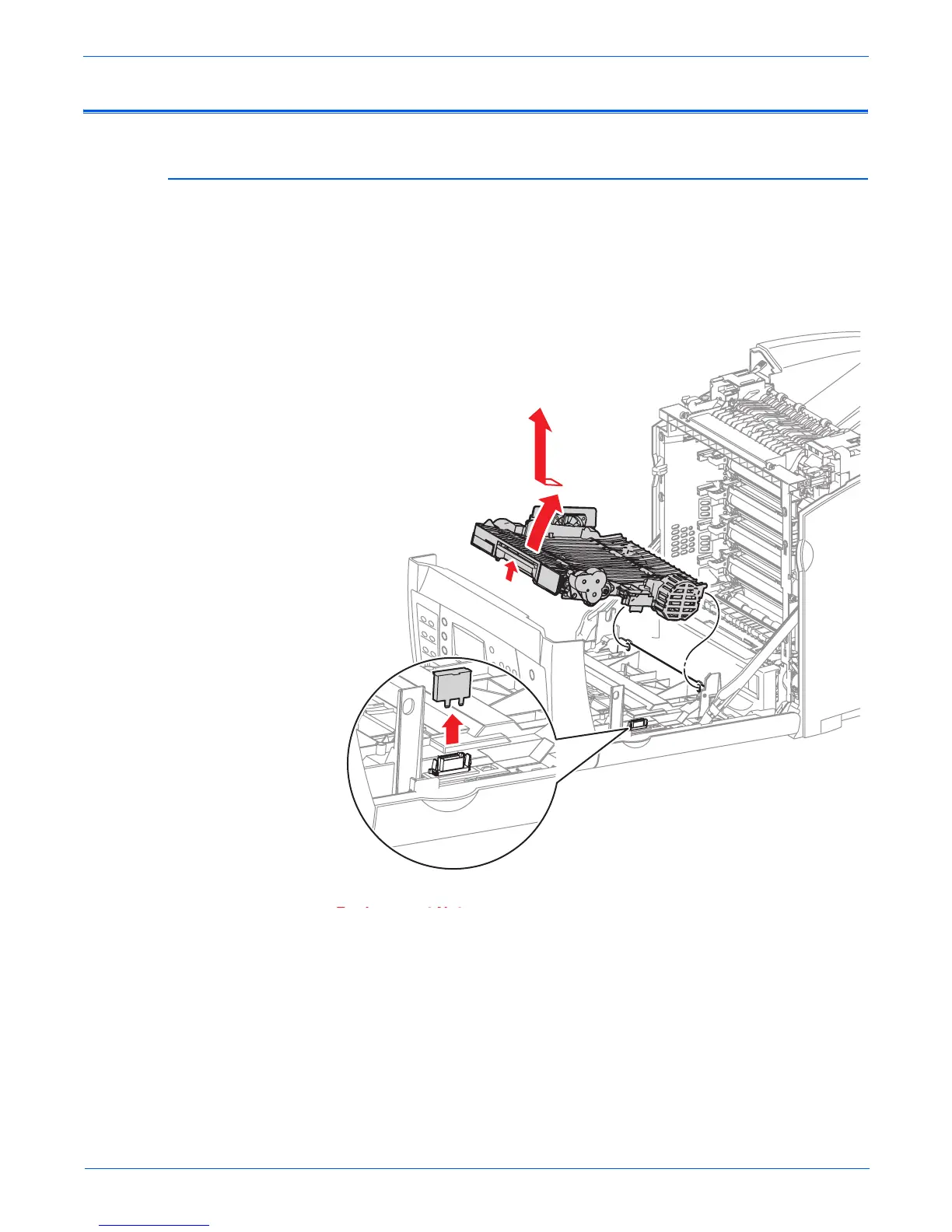

Duplex Unit (PL12.1.1)
1. Open the Front Cover.
2. Remove the Transfer Unit (page 8-9).
3. Lift the Duplex Unit lever to release the lock.
4. Release the notches on the bottom of the Duplex Unit out from the holes
of the Front Cover and remove the Duplex Unit.
R
ep
l
acemen
t
N
o
t
e
R
ep
l
acemen
t
N
o
t
e
Be sure to remove the plastic Connector Cover from the Duplex Unit
connector location (if installed). The cover is only installed if the
printer never had a Duplex Unit installed.
s6180mfp-126
