Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 2-7
Theory of Operation

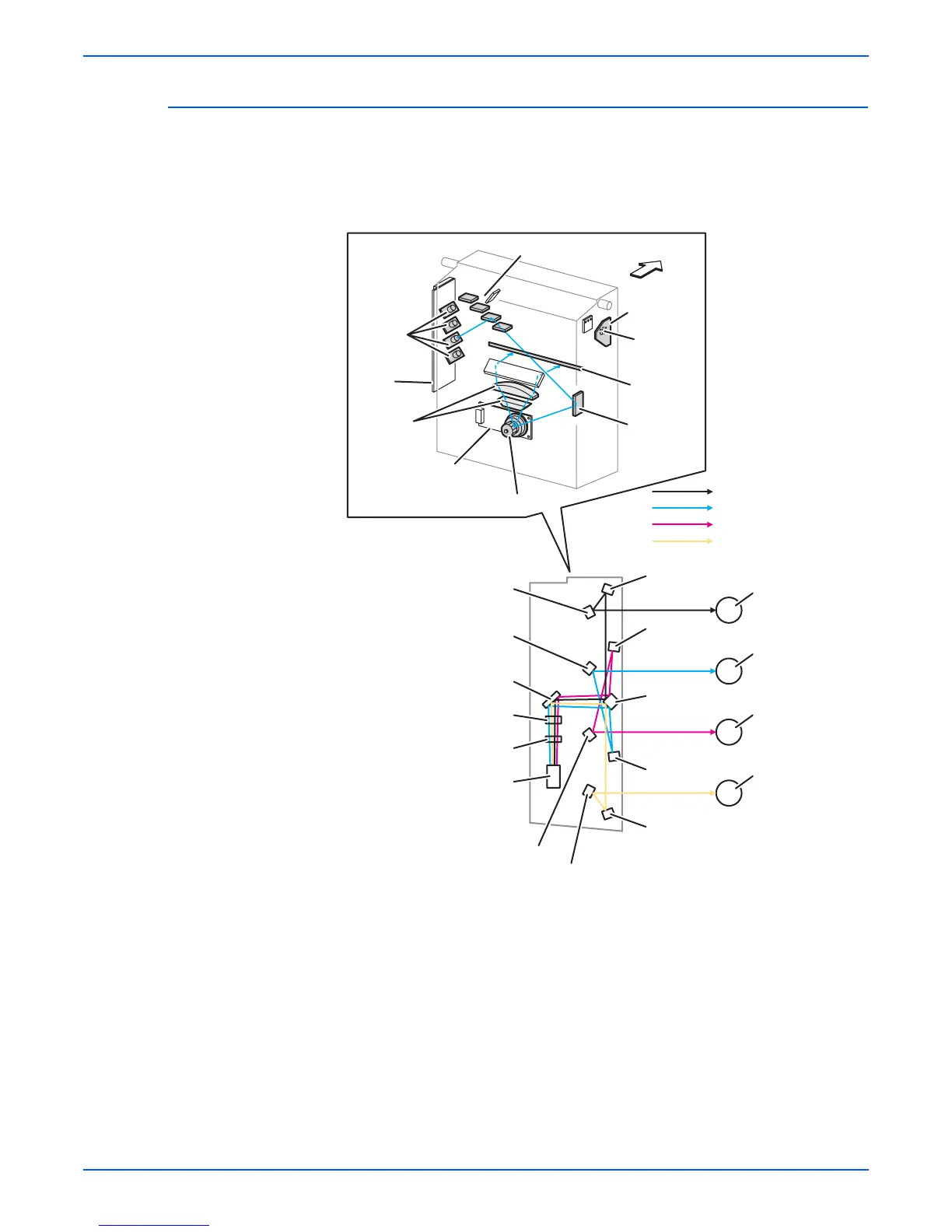

Exposure
Laser beams are emitted from the laser diodes in the Laser Unit. The Drum
for each color is scanned from end to end in the axial direction as the polygon
mirror rotates, which attaches the fixed mirror and lenses to the Scanner
Motor of the Laser Unit.
Rear View
Mirror
Mirror
Laser
Diodes
Laser
Diode
Board
Lens
Scanner
Polygon Mirror
Window
SOS
Sensor
SOS Board
Front
s6180mfp-031
Laser Beam (K)
Laser Beam (C)
Laser Beam (M)
Laser Beam (Y)
Mirror
Mirror
Mirror
Mirror
Mirror
Mirror
Mirror
Mirror
Mirror
Mirror
Polygon
Mirror
Lens
Lens
Drum (K)
Drum (C)
Drum (M)
Drum (Y)

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
