Xerox Phaser 6180MFP Service Manual

2-8 Phaser 6180MFP Multifunction Printer Service Manual
Theory of Operation

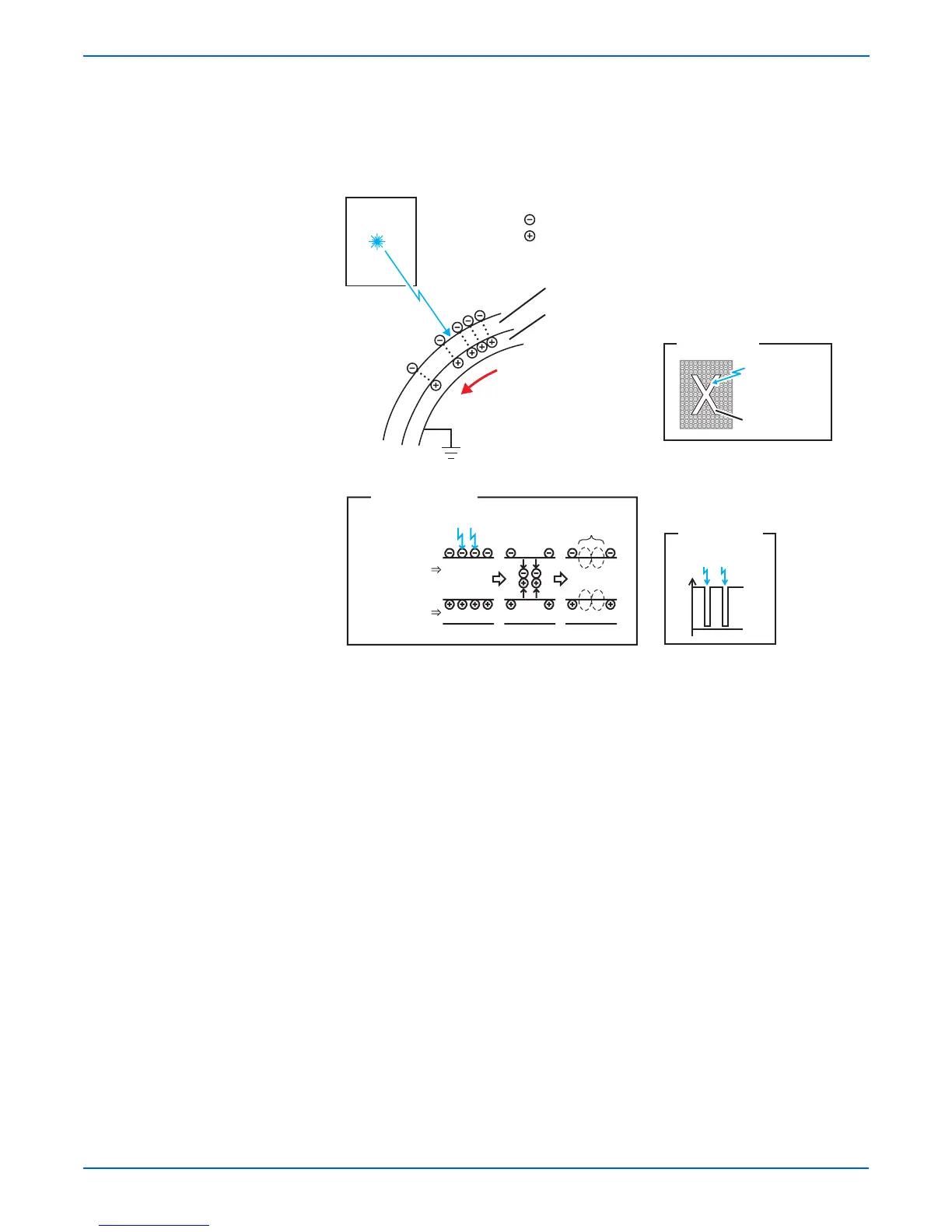

The negative charged Drum surface is scanned by the laser beams to form an
invisible electrostatic latent image on the drum surface. The process is
performed in parallel for Cyan, Magenta, Yellow, and Black colors.
The area on the surface where the voltage potential drops due to exposure to
the laser beam becomes the electrostatic latent image.
Laser Unit
Laser Beams
Laser Beam
Laser Beam
Laser Beam
Negative Electric Charge
Positive Electric Charge
Photoreceptor
Photoreceptor
Conductor
Conductor
Drum
Electrostatic
Latent Image
Electrostatic
Latent Image
Potential on
Drum Surface
-V
0
Drum Surface
Concept of Drum
s6180mfp-032

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
