Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 8-59
Service Parts Disassembly
Toner Dispenser Motor (C/M/Y/K) (PL5.2.10)
1. Open the Front Cover.
2. Remove the Fuser (page 8-12).
3. Remove the Rear Cover (page 8-18).
4. Remove the Bottom Cover (page 8-19).
5. Remove the Left Pole Inner Cover (page 8-24).
6. Remove the Left Pole Cover (page 8-25).
7. Remove the Left Cover (page 8-26).
8. Disconnect the 4 Toner Dispenser Motor wiring harnesses from the Motor
Harness Duct (PL5.2.14).
9. Release the 2 hooks securing the Motor Harness Duct to the printer.

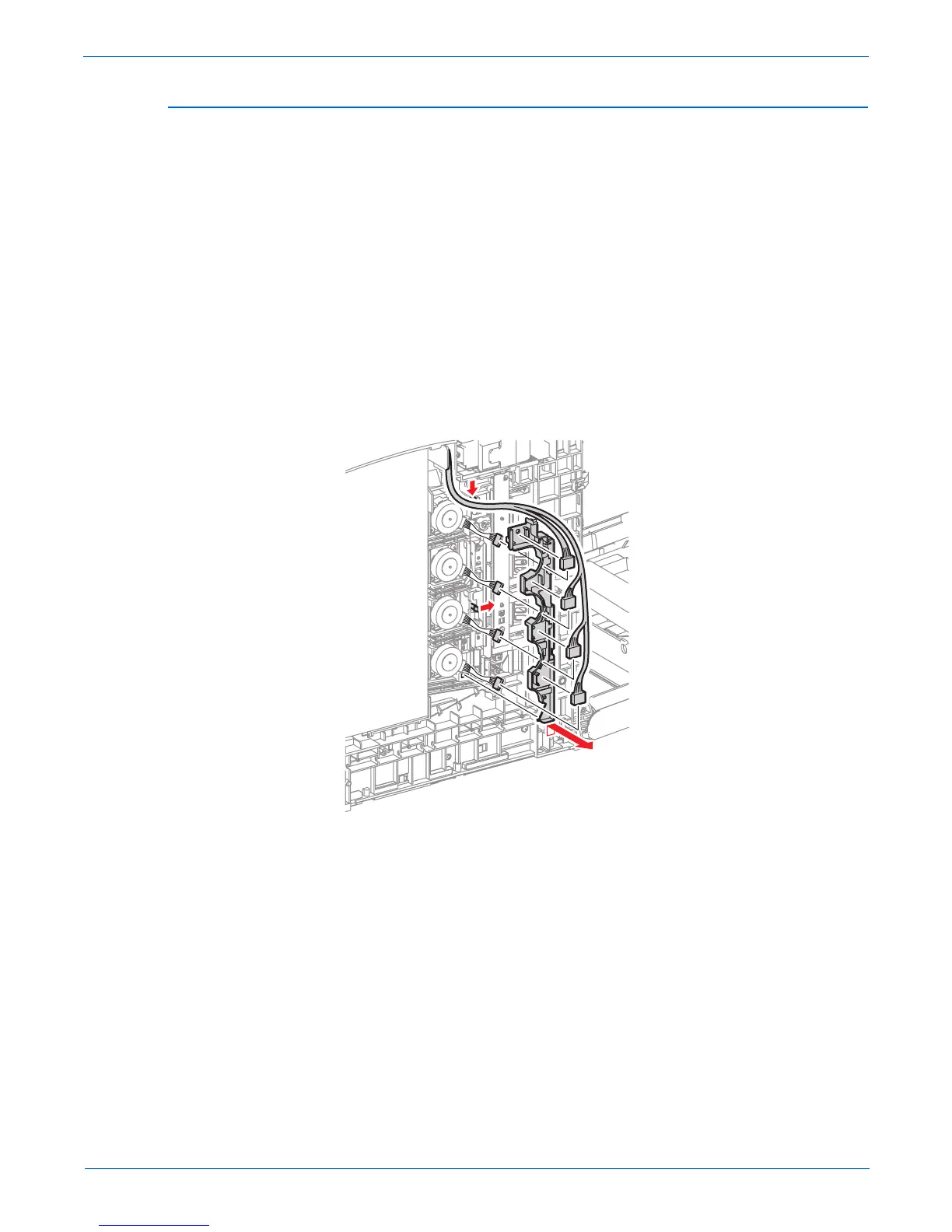

10. Slightly shift the Motor Harness Duct upward and release the convex
sections of the Duct from the printer. Pass the 4 connectors through the
hole of the Motor Harness Duct and remove the Duct.
s6180mfp-291
