Xerox Phaser 6180MFP Service Manual

8-18 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly
Covers
Rear Cover (PL1.1.6)

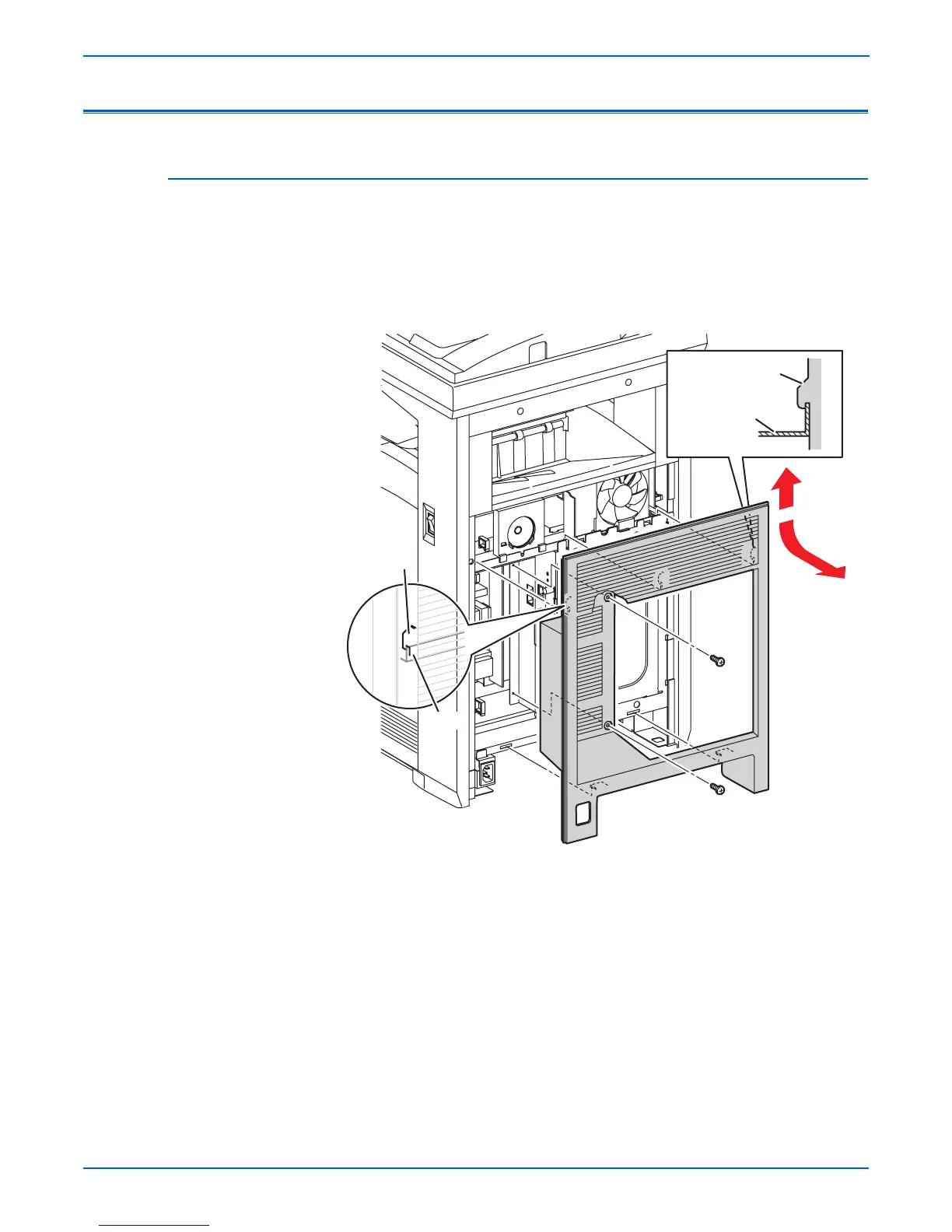

1. Remove 2 screws (6 mm) securing the Rear Cover.
2. Push the Rear Cover up to release the 5 hooks on the back side of the
Rear Cover.
3. Release the rim on the upper section of the Rear Cover from the inside of
the Top Cover (PL1.1.1) and remove the Rear Cover.
R
ep
l
acemen
t
N
o
t
e
R
ep
l
acemen
t
N
o
t
e
Be sure to hold down the metal clips on the Parallel connector while
inserting the Rear Cover to prevent bending the clips.
s6180mfp-211
1
2
Rear Cover Hook
Frame
Hook
Frame
