Phaser 6180MFP Multifunction Printer Service Manual 8-21
Service Parts Disassembly
Right Pole Inner Cover (PL1.1.4)
1. Remove the Bottom Cover (page 8-19).

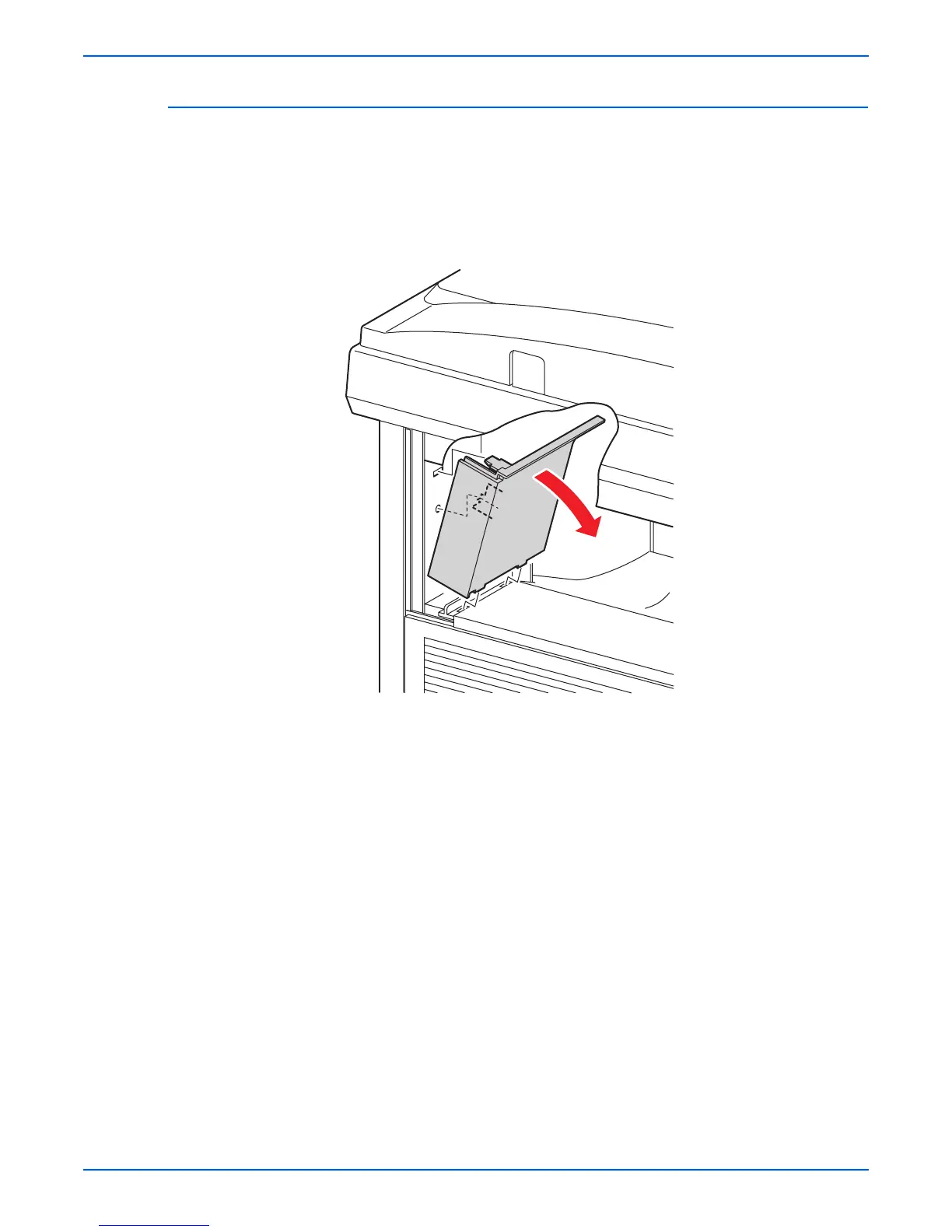

2. Tilt the Right Pole Inner Cover inward to release the hook on the rear side
of the Right Pole Inner Cover.
3. Release the 2 hooks on the bottom side of the Right Pole Inner Cover
from the holes on the Top Cover (PL1.1.1) and remove the Right Pole
Inner Cover from the printer.
s6180mfp-217
