Xerox Phaser 6180MFP Service Manual

2-86 Phaser 6180MFP Multifunction Printer Service Manual
Theory of Operation
Functions of Components
Scanner
■ ADF Open Sensor
The ADF Open Sensor detects whether or not the ADF is open and
determines the timing of document size detection.
■ Carriage Motor
The Carriage Motor drives the Scanner Assembly.
■ Scanner Home Position Sensor
The Scanner Home Position Sensor is a part of the rear section of the
Scanner Assembly frame that functions as an Actuator which shields the
Scanner Home Position Sensor, thus detecting the Registration position.
■ Cold Cathode Fluorescent Lamp (Exposure Lamp)
The Cold Cathode Fluorescent Lamp exposes the document.
■ Charged Coupled Device Board
The Charged Coupled Device (CCD) Board (Image Sensor) converts
optical images into electrical signals.

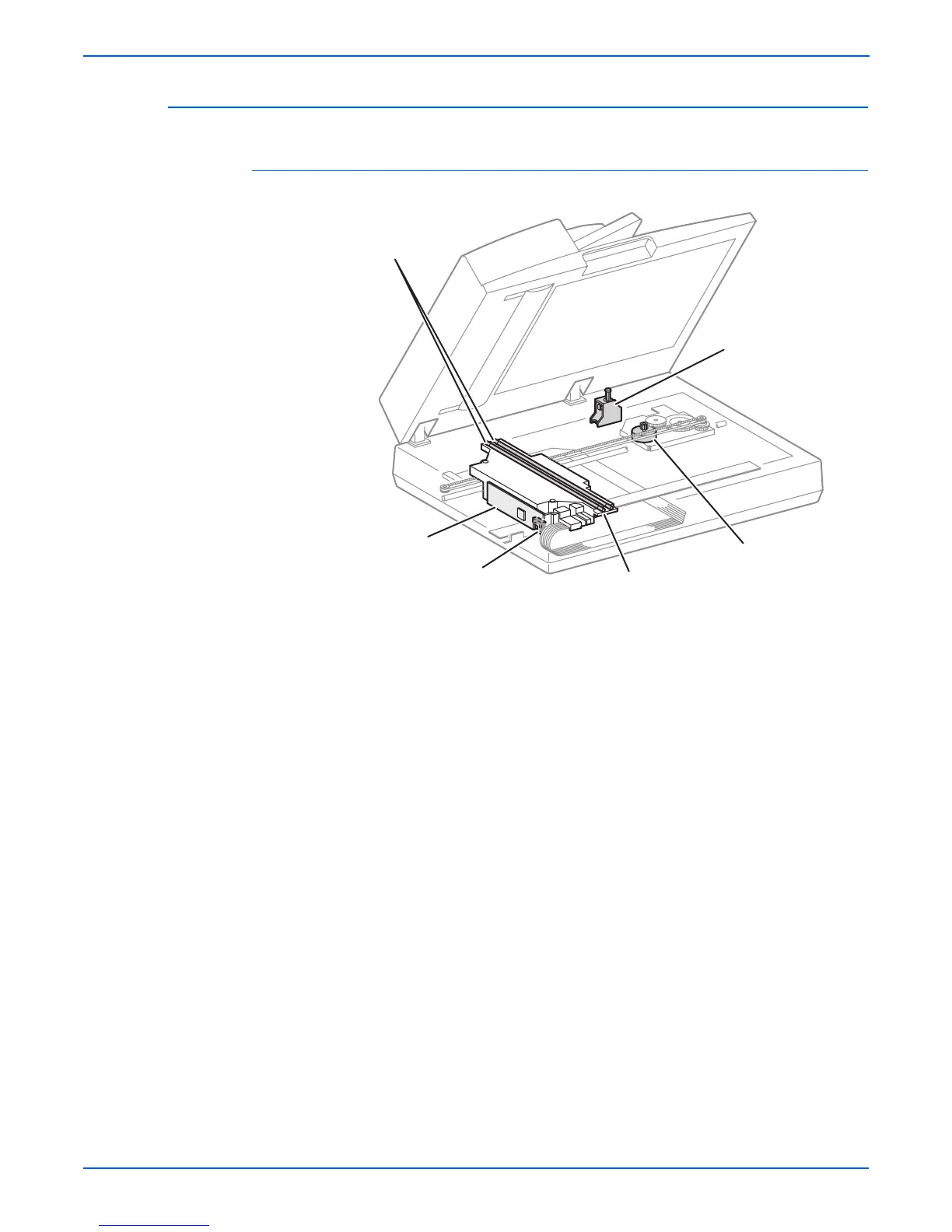

s6180mfp-094
Cold Cathode
Fluorescent Lamp
CCD Board
Scanner
Home Position Sensor
Scanner Assembly
ADF Open Sensor
Carriage Motor

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
