Phaser 6180MFP Multifunction Printer Service Manual 10-15
Plug/Jack and Wiring Diagrams

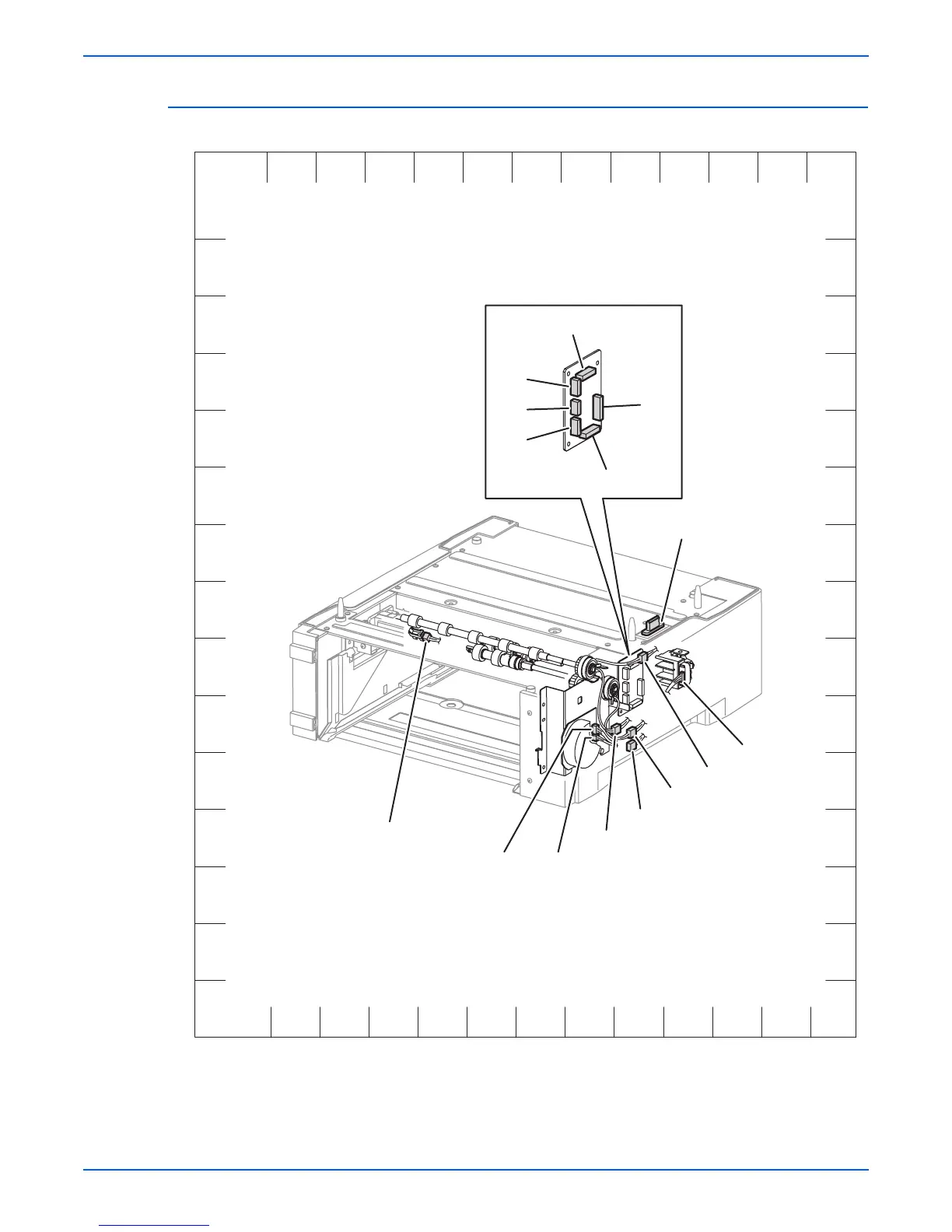

Map 6 - Optional 550-Sheet Feeder
273
4212
4213
4202
4201
42121
422
421
419
423
420
1
4211
4222
*(CN2)
4221
*(CN1)
*The CN1 and CN2 are printed on the board.
A
177
178
179
180
181
182
183
184
185
186
187
188
189
190
176
BCDEFGHI JKL
s6180mfp-407
