Xerox Phaser 6180MFP Service Manual

8-36 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly
Wiring Harness A-OP-OPP (PL1.2.24)
1. Open the Front Cover.
2. Remove the Fuser (page 8-12).
3. Remove the Rear Cover (page 8-18).
4. Remove the Bottom Cover (page 8-19).
5. Remove the Right Pole Inner Cover (page 8-21).
6. Remove the Right Pole Cover (page 8-22).
7. Remove the Right Cover (page 8-23).
8. Remove the Control Panel (page 8-30).
9. Disconnect the Control Panel (PL1.2.2) wiring harness connector P/
J5301.

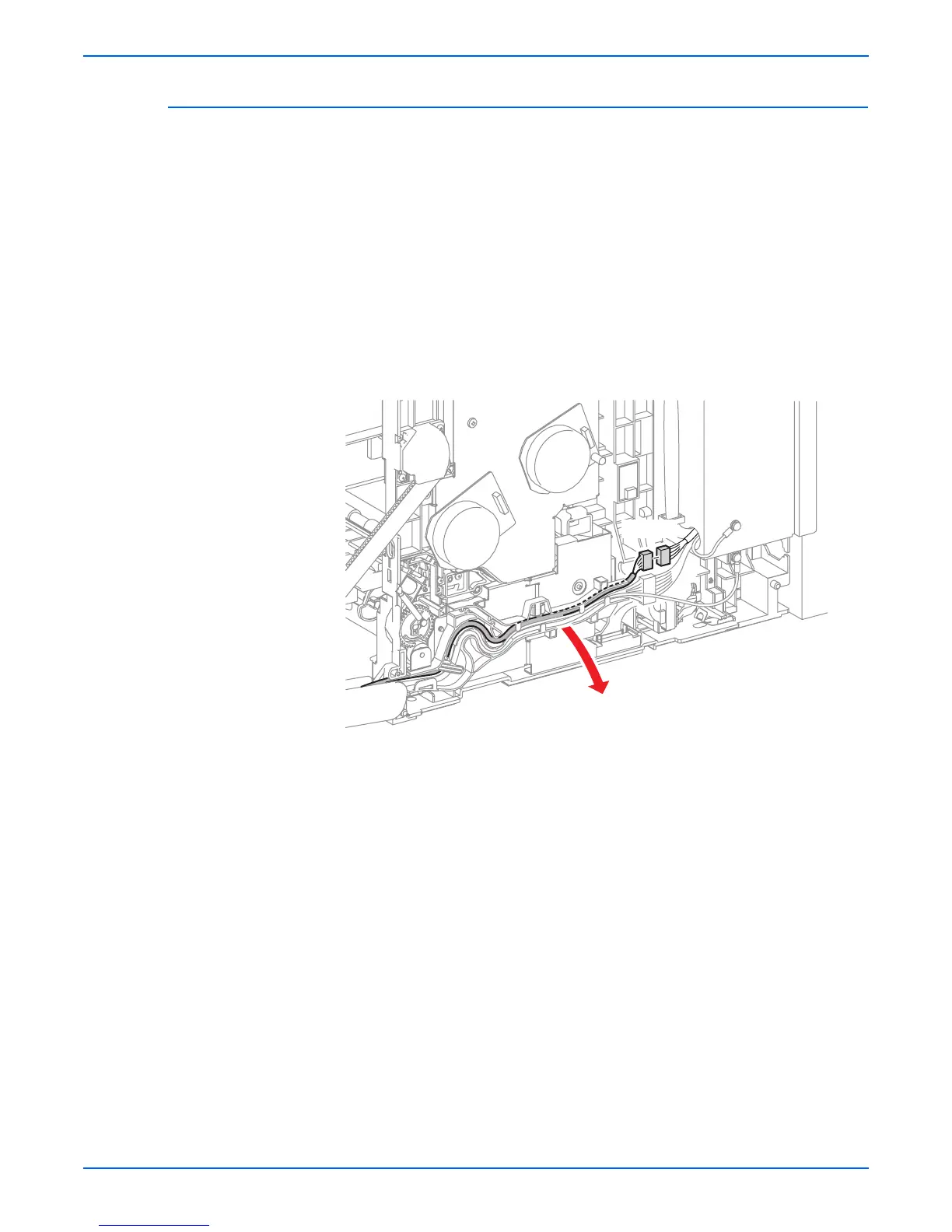

10. Release the A-OP-OPP Wiring Harness from the Drive Duct (PL8.1.8).
s6180mfp-410
P/J5301
