8-28 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly
Front Cover (PL1.2.1)
1. Open the Front Cover.
2. Remove the Fuser (page 8-12).
3. Remove the Rear Cover (page 8-18).
4. Remove the Bottom Cover (page 8-19).
5. Remove the Right Pole Inner Cover (page 8-21).
6. Remove the Right Pole Cover (page 8-22).
7. Remove the Right Cover (page 8-23).
8. Remove 1 screw (6 mm) securing the Ground Wire on the printer.
N
o
t
e
When performing the following steps, leave the junction connector on the
printer side cable.

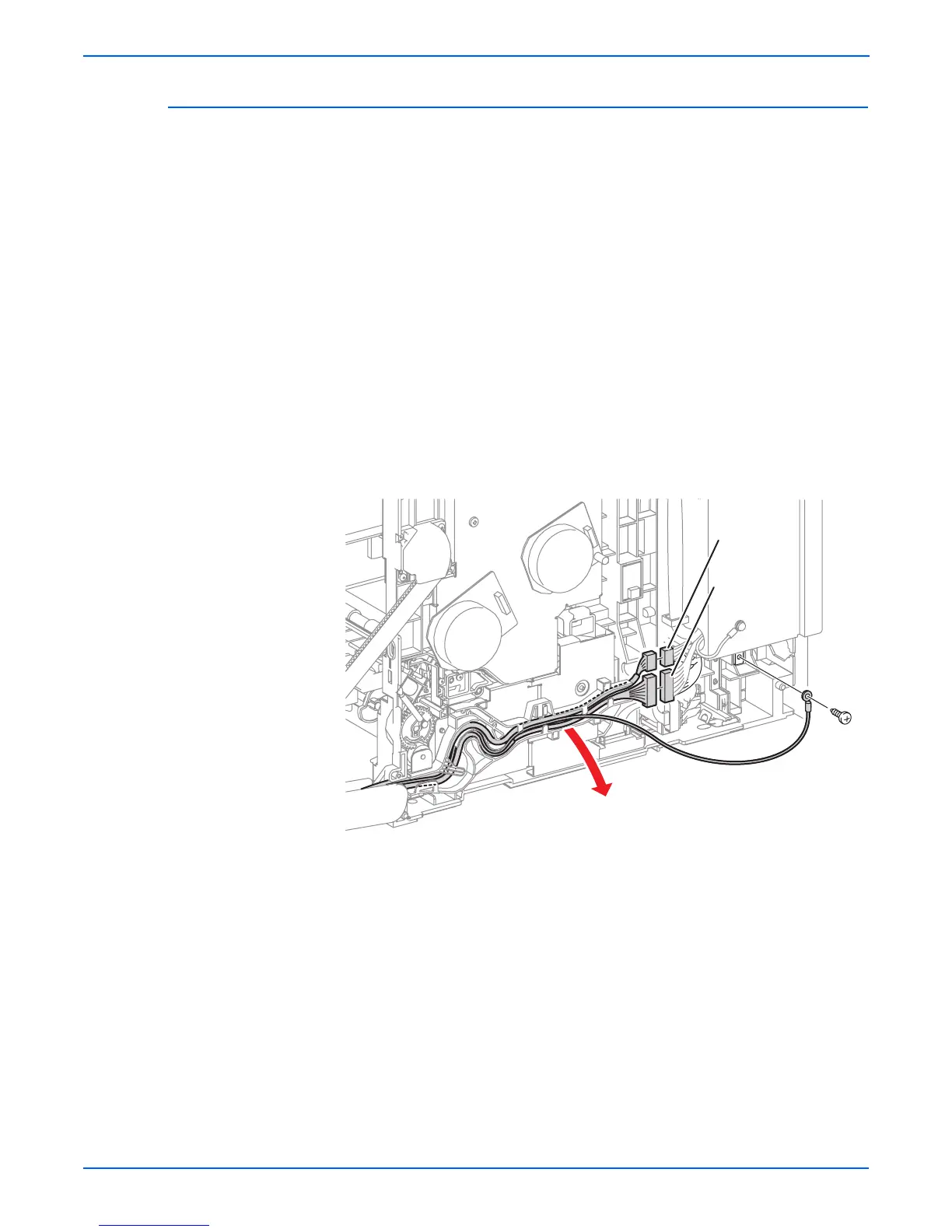

9. Disconnect the Front Cover connector P/J272 and the A-OP-OPP
Harness (Control Panel) connector P/J5301 (PL1.2.24).
10. Release the Ground Wire and the wiring harness from the Drive Duct
(PL8.1.8).
s6180mfp-214
P/J5301
P/J272
