Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 8-29
Service Parts Disassembly

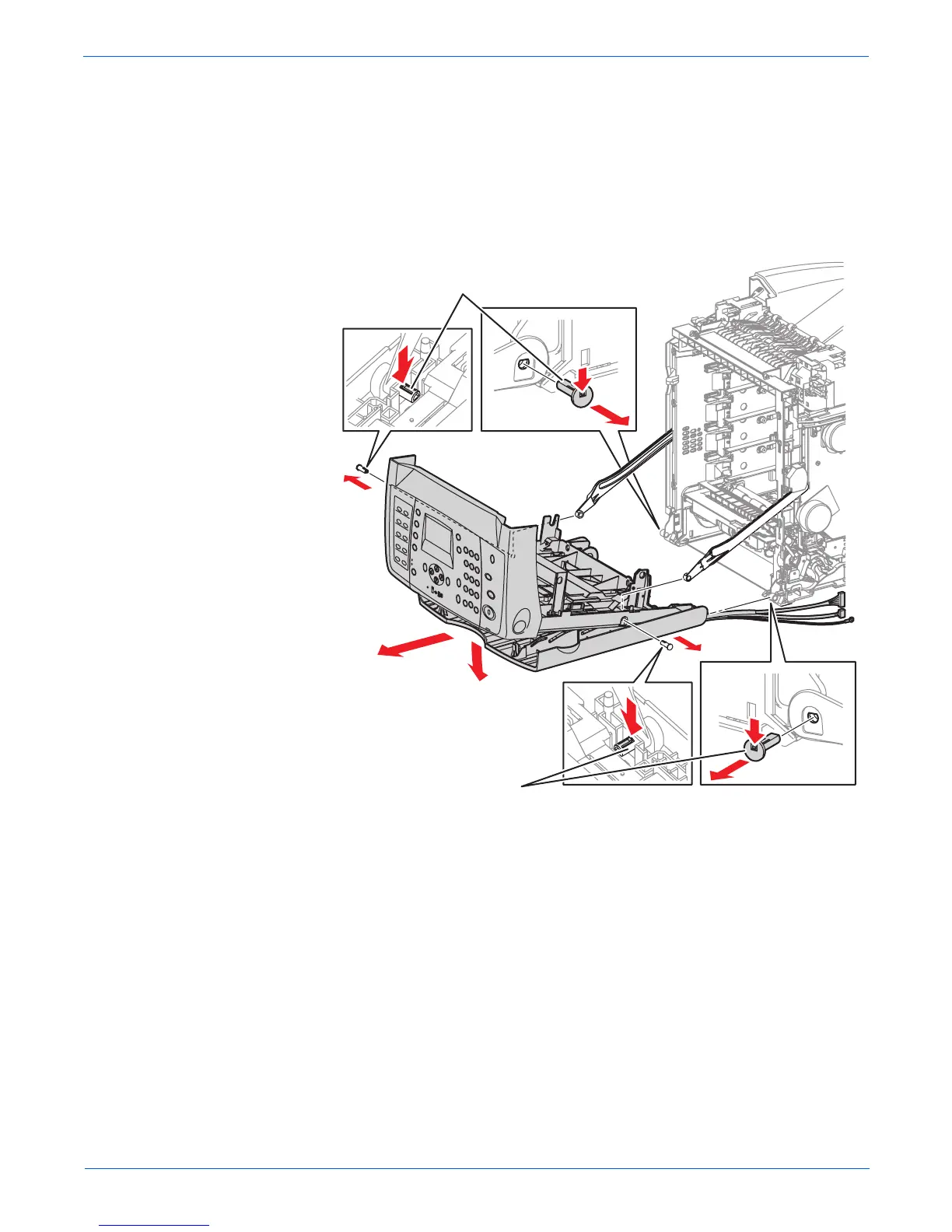

11. Open the Tray 1 (MPT) Cover (PL1.2.26).
12. Release the hook of the Shaft Pivot (PL1.2.10) on the left and right side of
the Front Cover. Pull the Shaft Pivot outward while holding the Front
Cover and remove the Cover from the Left (PL7.1.3) and Right Links (PL
7.1.13).
13. Release the hooks of the Tray 1 (MPT) Shaft Pivot (PL1.2.33) securing
the Front Cover and the MPT Cover to the printer and pull out the MPT
Shaft Pivot.
14. Remove the Front Cover together with the Tray 1 (MPT) Cover.
R
ep
l
acemen
t
N
o
t
e
R
ep
l
acemen
t
N
o
t
e
Be sure to tilt the Front Cover accordingly when mounting the Front
Cover. Push the Shaft Pivot in all the way to secure the hooks of the
Shaft Pivots to the Left and Right Links.
s6180mfp-216
Shaft Pivots
Right
Link
Left Link
Shaft Pivots

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
