Phaser 6180MFP Multifunction Printer Service Manual 2-25
Theory of Operation
Tray 1 (MPT) & Registration
■ Tray 1 (MPT) Turn Clutch
The Turn Clutch transmits drive energy from the Drive Assembly to the
Tur n Ro ller.
■ Tray 1 (MPT) Turn Roller
The Turn Roller is rotated by the drive from the Drive Assembly through
the Turn Clutch to feed paper from the Tray 1 (MPT) or duplex paper path
to the Registration Chute.
■ Tray 1 (MPT) Registration Sensor
The Registration Sensor detects paper when the paper leading edge
reaches the Registration Chute. When paper is fed from Tray 1 (MPT), the
Registration Sensor measures the paper length. The On time of the
Registration Sensor is converted into the paper length.
N
o
t
e
On: The paper activates the Actuator.

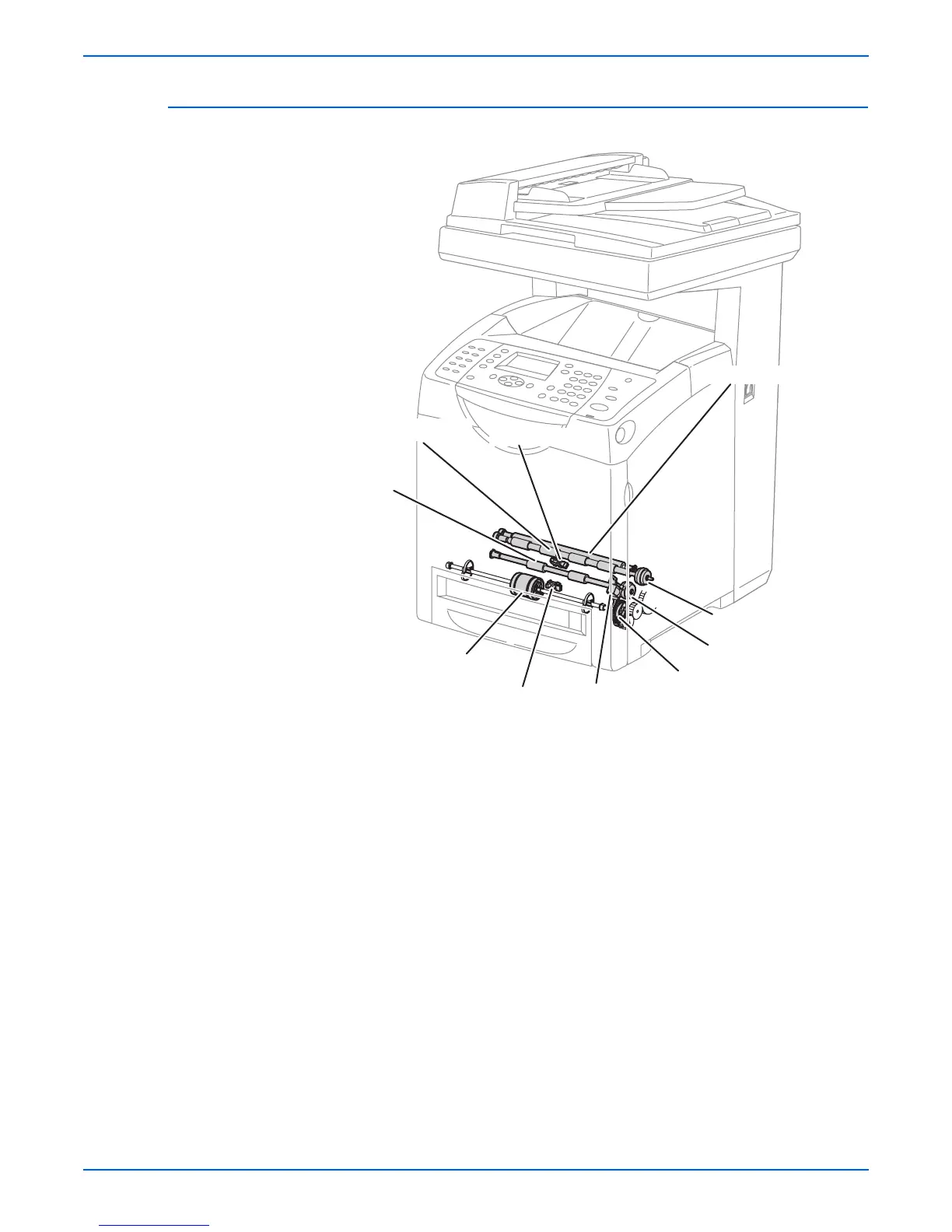

s6180mfp-144
Tray 1 (MPT) Feed Roller
Tray 1 (MPT) No Paper Sensor
Tray 1 (MPT) Feed Solenoid
Tray 1 (MPT) Gear
Turn Clutch
Registration Clutch
Turn Roller
Rubber
Registration Roller
Registration Sensor
Metal Registration Roller

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
