Xerox Phaser 6180MFP Service Manual

2-26 Phaser 6180MFP Multifunction Printer Service Manual
Theory of Operation
■ Tray 1 (MPT) Registration Clutch
The Registration Clutch transmits drive energy from the Main Drive to the
Registration Rubber Roller, and transports paper from Tray 1 (MPT) and
the duplex path to the Print Cartridge direction. The timing of sheets
feeding from the Registration is adjusted by the duration of the
Registration Clutch operation so that the toner image on the drum can be
transferred to the appropriate position on the sheet.

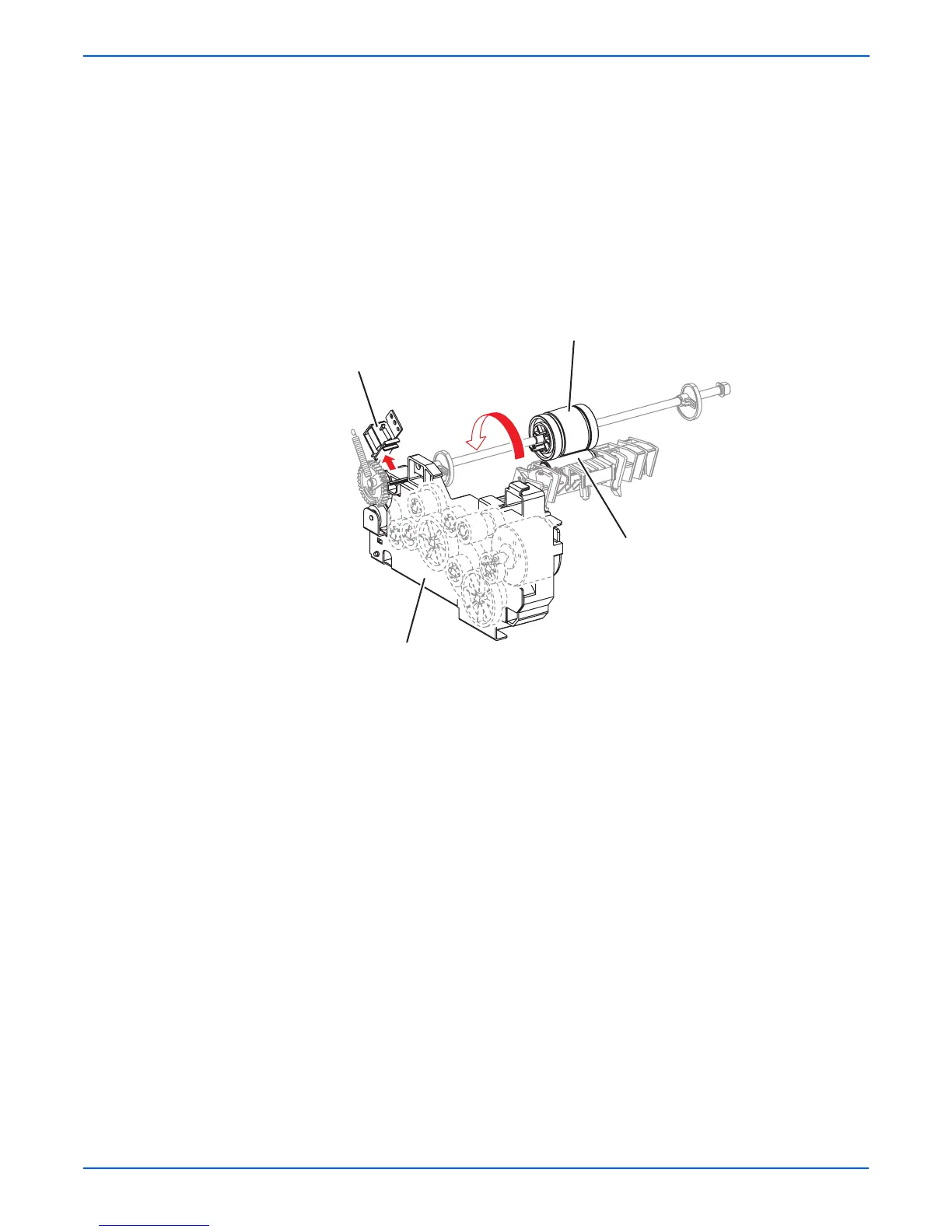

■ Tray 1 (MPT) Feed Solenoid
The Feed Solenoid controls drive energy from the Drive Assembly to the
Tray 1 (MPT) Feed Roller.
s6180mfp-048
Tray 1 (MPT) Feed Solenoid
Tray 1 (MPT) Feed Roller
Retard Roller
Drive Assembly
