Phaser 6180MFP Multifunction Printer Service Manual 8-103
Service Parts Disassembly
Automatic Document Feeder and Scanner Assembly
ADF Scanner Assembly (PL11.1.1)

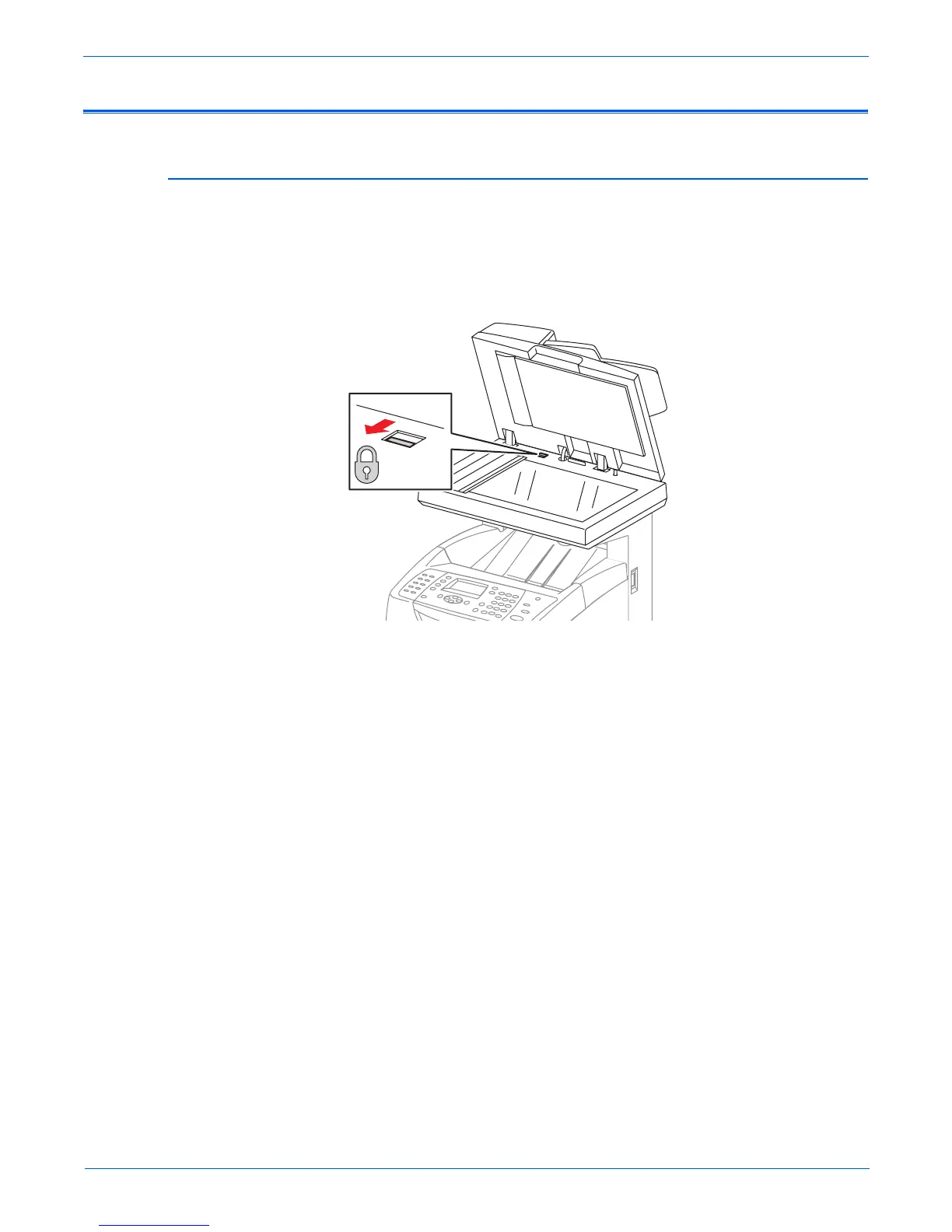

Caution
Prior to removing the Automatic Document Feeder (ADF), open the ADF
Assembly (PL11.1.2) and move the Carriage Lock Lever toward the front
to the locking position.
1. Open the Front Cover.
2. Remove the Fuser (page 8-12).
3. Remove the Rear Cover (page 8-18).
4. Remove the Bottom Cover (page 8-19).
5. Remove the Right Pole Inner Cover (page 8-21).
6. Remove the Right Pole Cover (page 8-22).
7. Remove the Right Cover (page 8-23).
8. Remove the Left Pole Inner Cover (page 8-24).
9. Remove the Left Pole Cover (page 8-25).
10. Remove the Left Cover (page 8-26).
11. Remove the Top Cover (page 8-27).
12. Remove the Controller Shield Box Assembly (page 8-92).
s6180mfp-354
