Xerox Phaser 6180MFP - Paper Feeder; Tray 1 (MPT) Feed Solenoid (PL3.1.3)

8-40 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly
Paper Feeder
Tray 1 (MPT) Feed Solenoid (PL3.1.3)
1. Open the Front Cover.
2. Remove the Fuser (page 8-12).
3. Remove the Rear Cover (page 8-18).
4. Remove the Bottom Cover (page 8-19).
5. Remove the Right Pole Inner Cover (page 8-21).
6. Remove the Right Pole Cover (page 8-22).
7. Remove the Right Cover (page 8-23).
8. Remove the MPT Feed Spring (PL3.1.4).
9. Release the hook and remove the MPT Gear (PL3.1.5) from the MPT
Shaft (PL3.1.12).

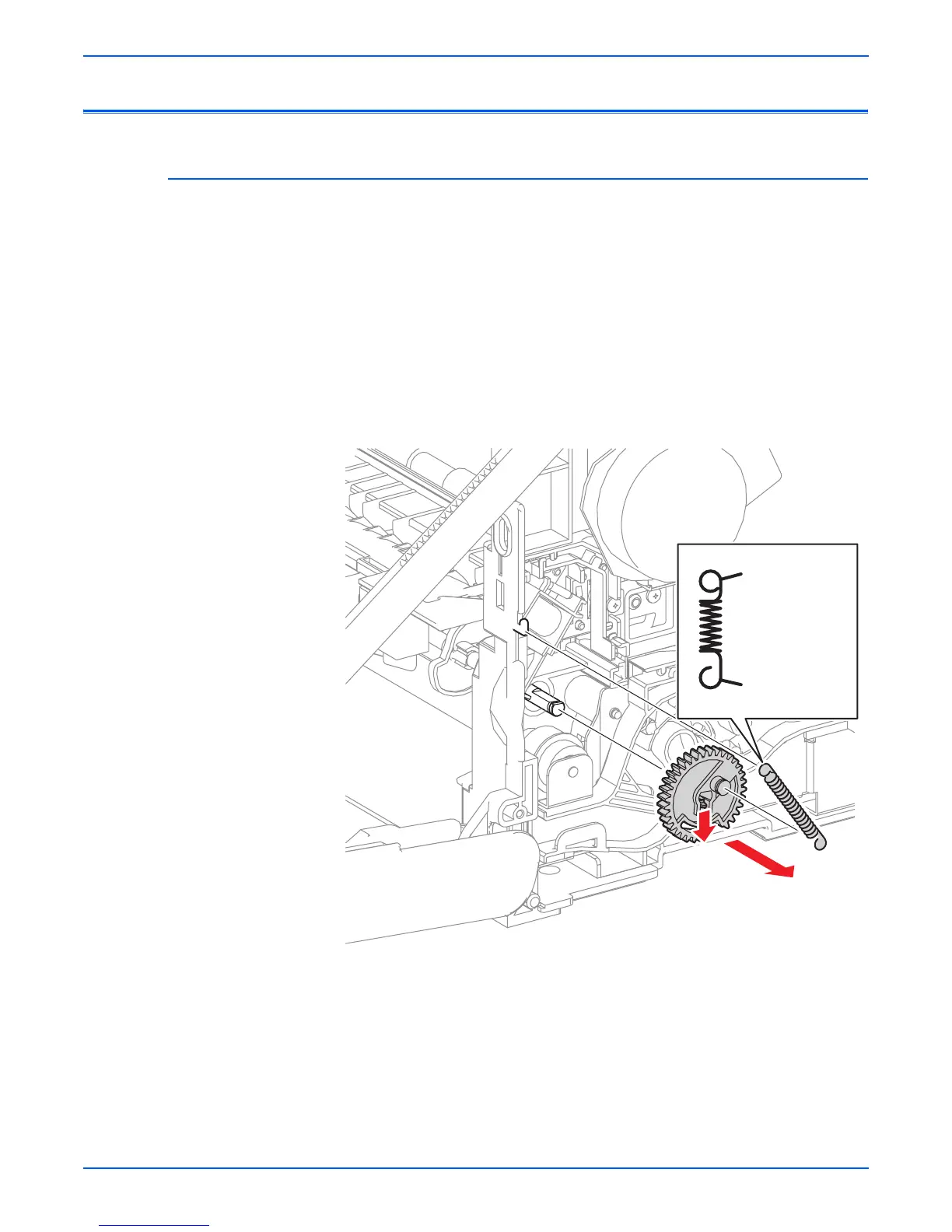

s6180mfp-266
Printer Side
MPT Gear Side
