Phaser 6180MFP Multifunction Printer Service Manual 8-41
Service Parts Disassembly

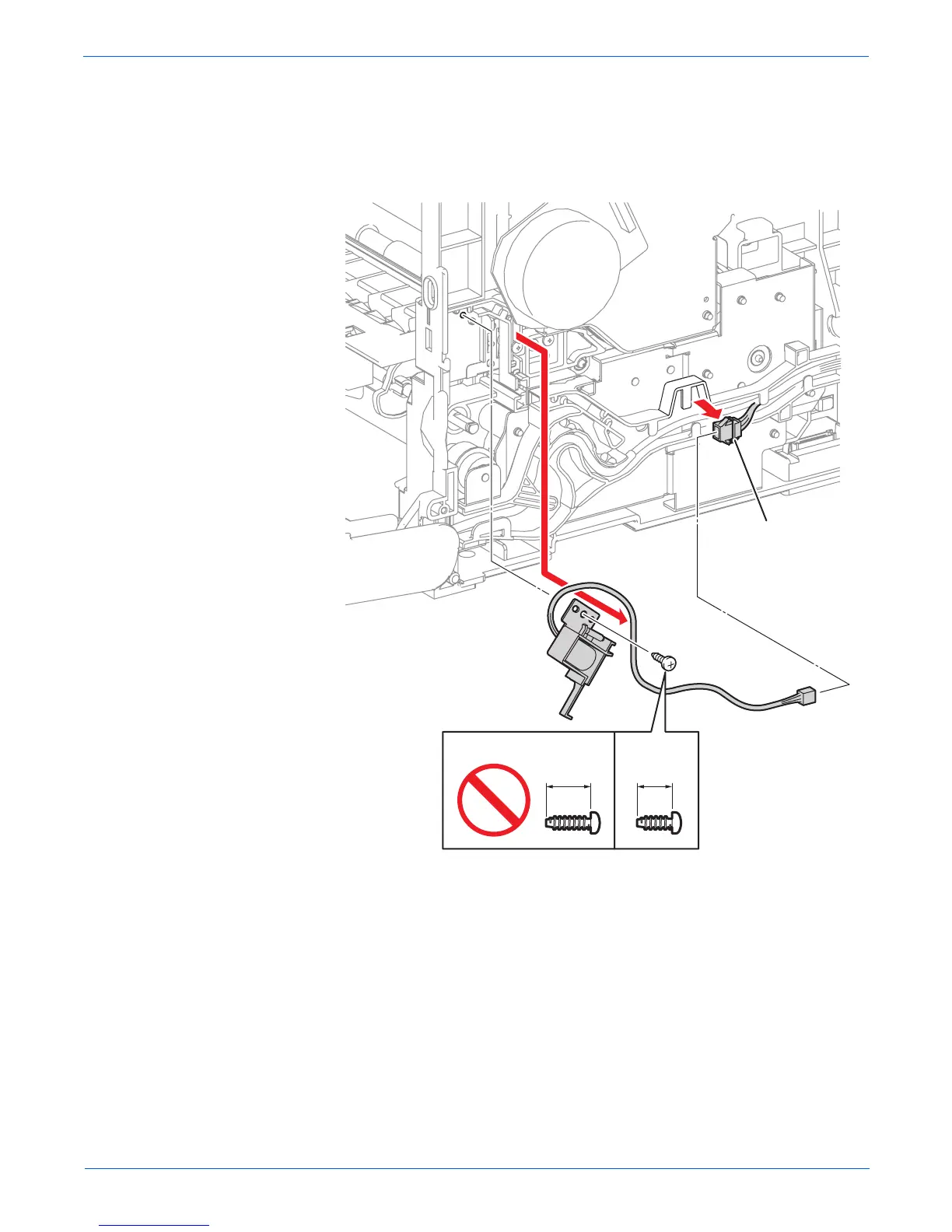

10. Disconnect the Tray 1 (MPT) Feed Solenoid connector P/J256.
11. Release the Feed Solenoid wiring harness from the Solenoid Duct
(PL3.1.2) and the Drive Duct (PL8.1.8).
12. Remove 1 screw (8 mm) securing the Feed Solenoid to the printer.
13. Remove the Tray 1 (MPT) Feed Solenoid.
s6180mfp-265
P/J256
10mm 8mm
To Next Page
