8-110 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly
ADF Feeder Roller (PL11.1.3, ADF Separator Pad, PL11.1.5), ADF Separator
Spring (PL11.1.6)

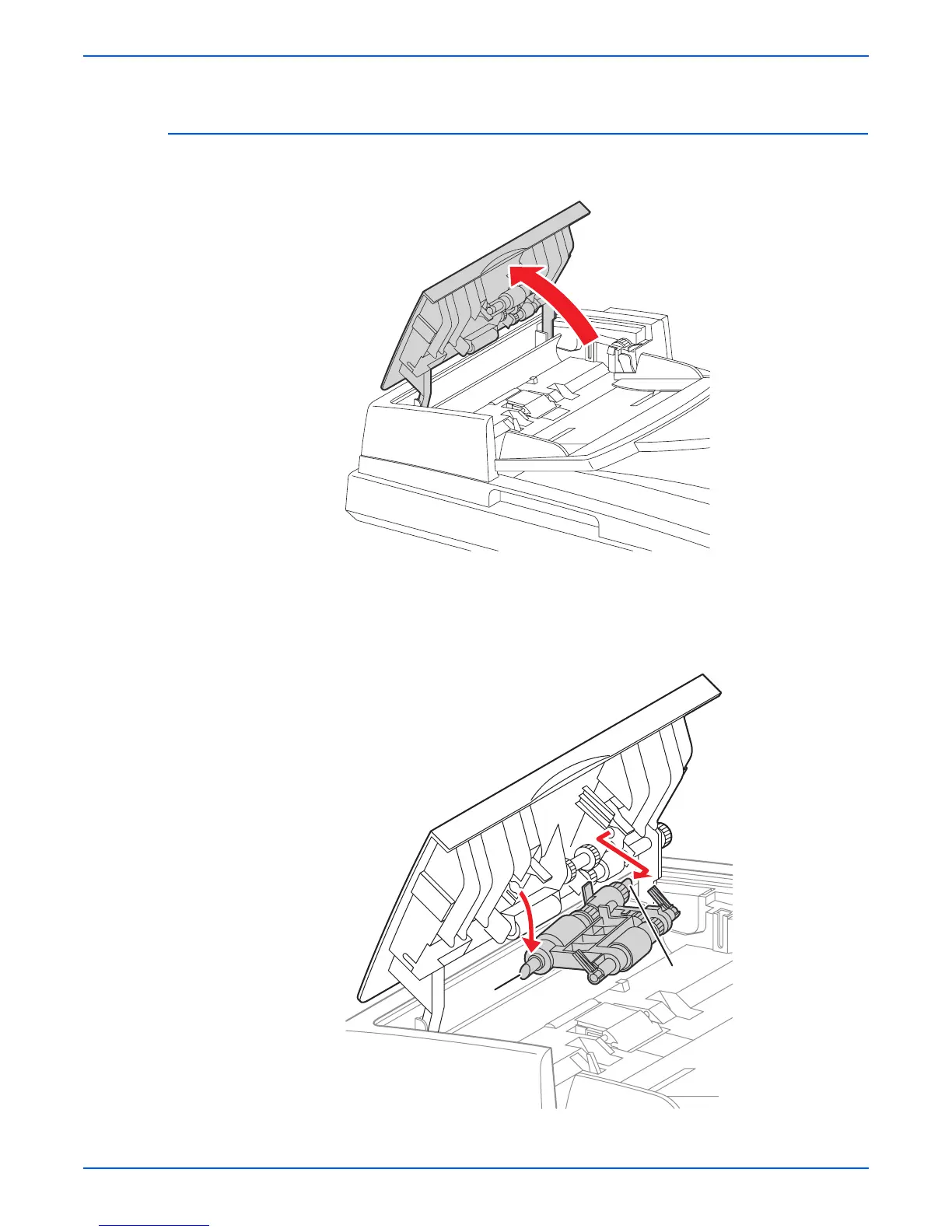

1. Open the ADF Assembly Cover.
2. Release the front shaft of the ADF Feed Roller (PL11.1.3) from the ADF
Assembly.
3. Release the rear shaft of the ADF Feed Roller from the ADF Assembly to
remove the ADF Feed Roller.
s6180mfp-360
s6180mfp-361
Front
Rear
