Phaser 6180MFP Multifunction Printer Service Manual 8-111
Service Parts Disassembly

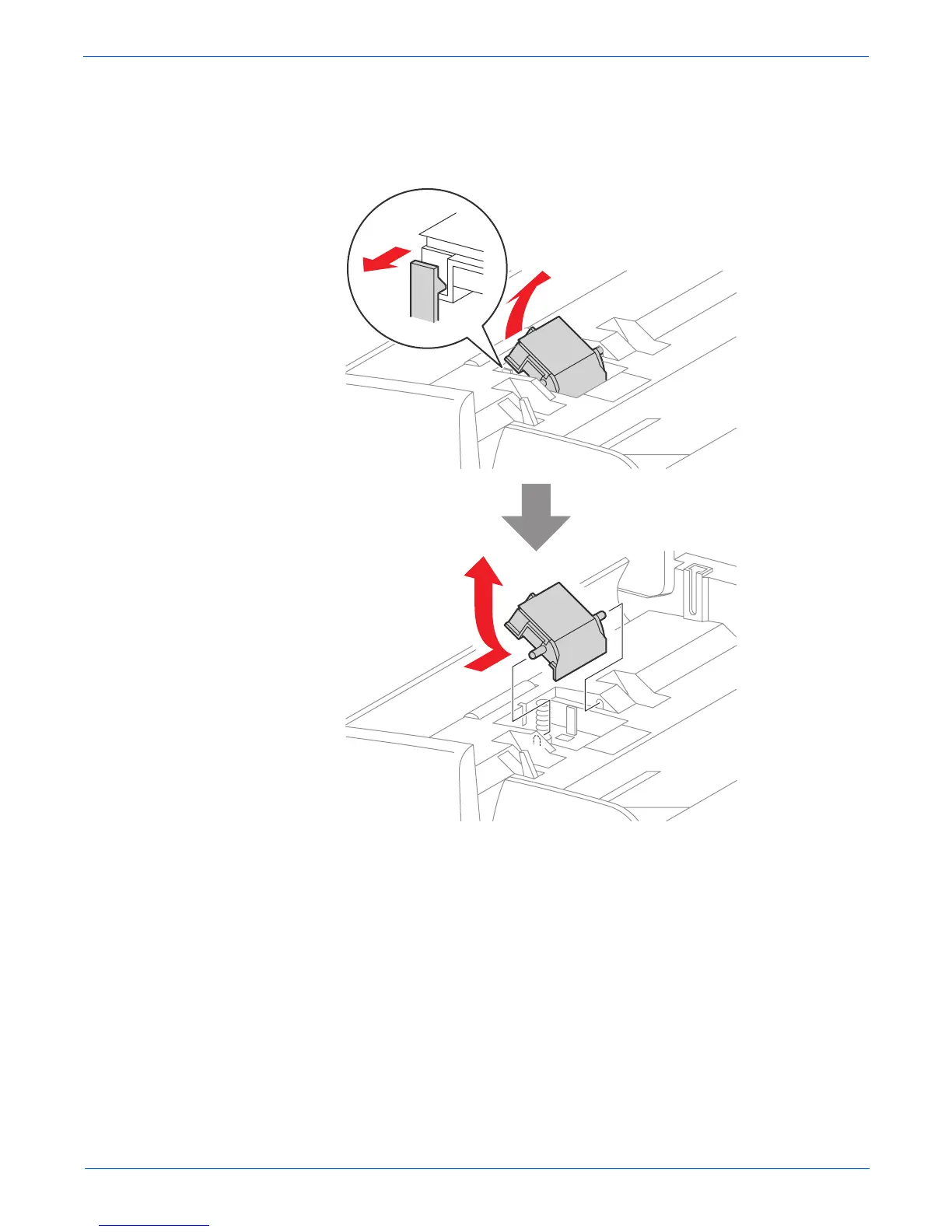

4. Release the hook securing the ADF Separator Pad (PL11.1.5) to the ADF
Assembly.
5. Slide the ADF Separator Pad backward until the front shaft of the ADF
Separator Pad is released from the hole on the ADF Assembly. Release
the rear shaft and remove the ADF Separator Pad.
s6180mfp-362
