Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 8-123
Service Parts Disassembly

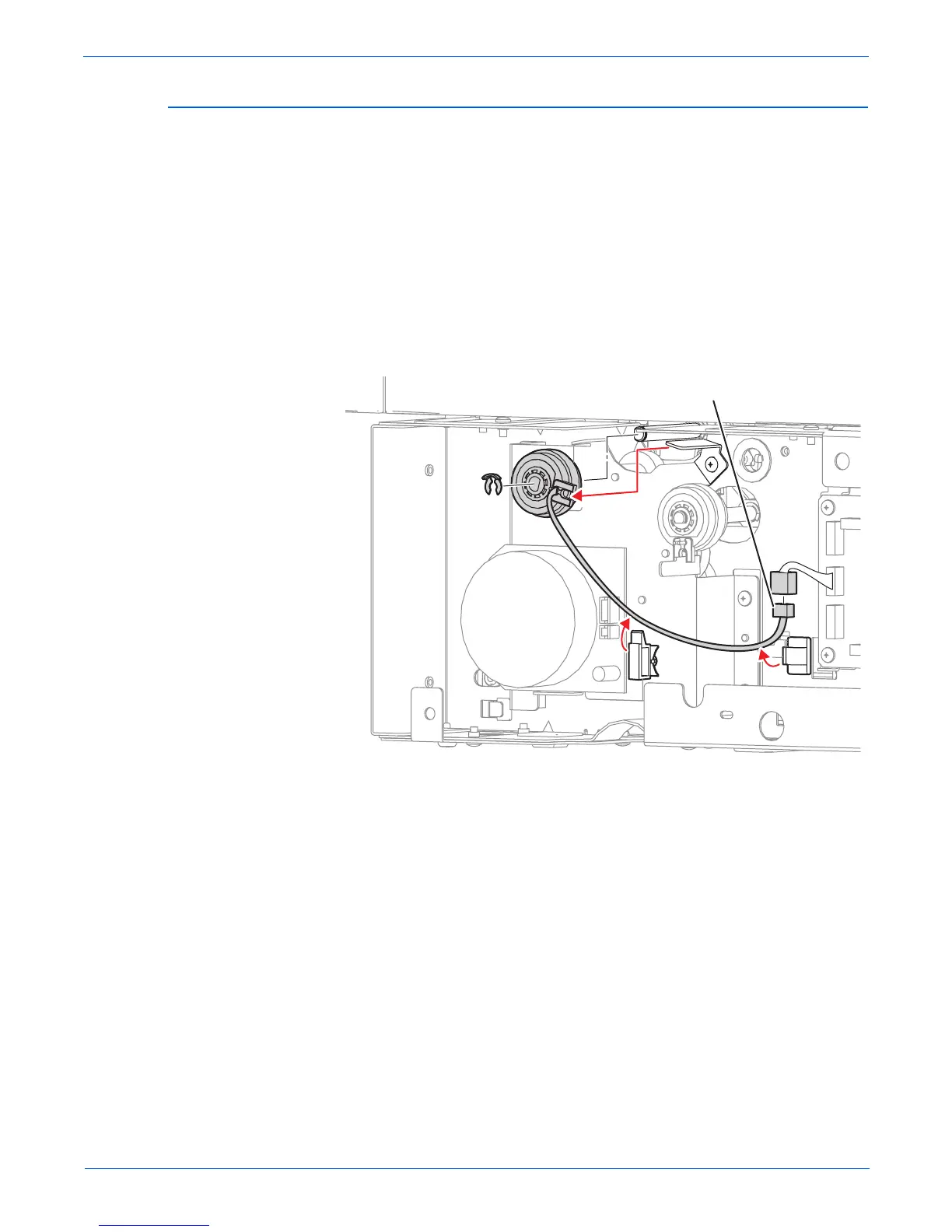

Tray 3 Turn Clutch (PL13.2.4)
1. Remove the Optional 550-Sheet Feeder (page 8-116).
2. Remove the Tray 3 Rear Cover (page 8-118).
3. Remove the Optional Feeder Assembly (page 8-117).
4. Remove the Front Right Cover (page 8-121).
5. Remove the Tray 3 OPF Right Cover (page 8-122).
6. Disconnect the Tray 3 Turn Clutch connector P/J4201.
7. Release the 2 Clamps securing the Tray 3 Turn Clutch wiring harness and
remove the harness.
8. Remove the KL-ring securing the Tray 3 Turn Clutch to the Turn Roller.
9. Remove the Tray 3 Turn Clutch from the Turn Roller.
s6180mfp-336
P/J4201

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
