Xerox Phaser 6180MFP Service Manual

8-26 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly
Left Cover (PL1.1.10)
1. Open the Front Cover.
2. Remove the Fuser (page 8-12).
3. Remove the Rear Cover (page 8-18).
4. Remove the Bottom Cover (page 8-19).
5. Remove the Left Pole Inner Cover (page 8-24).
6. Remove the Left Pole Cover (page 8-25).

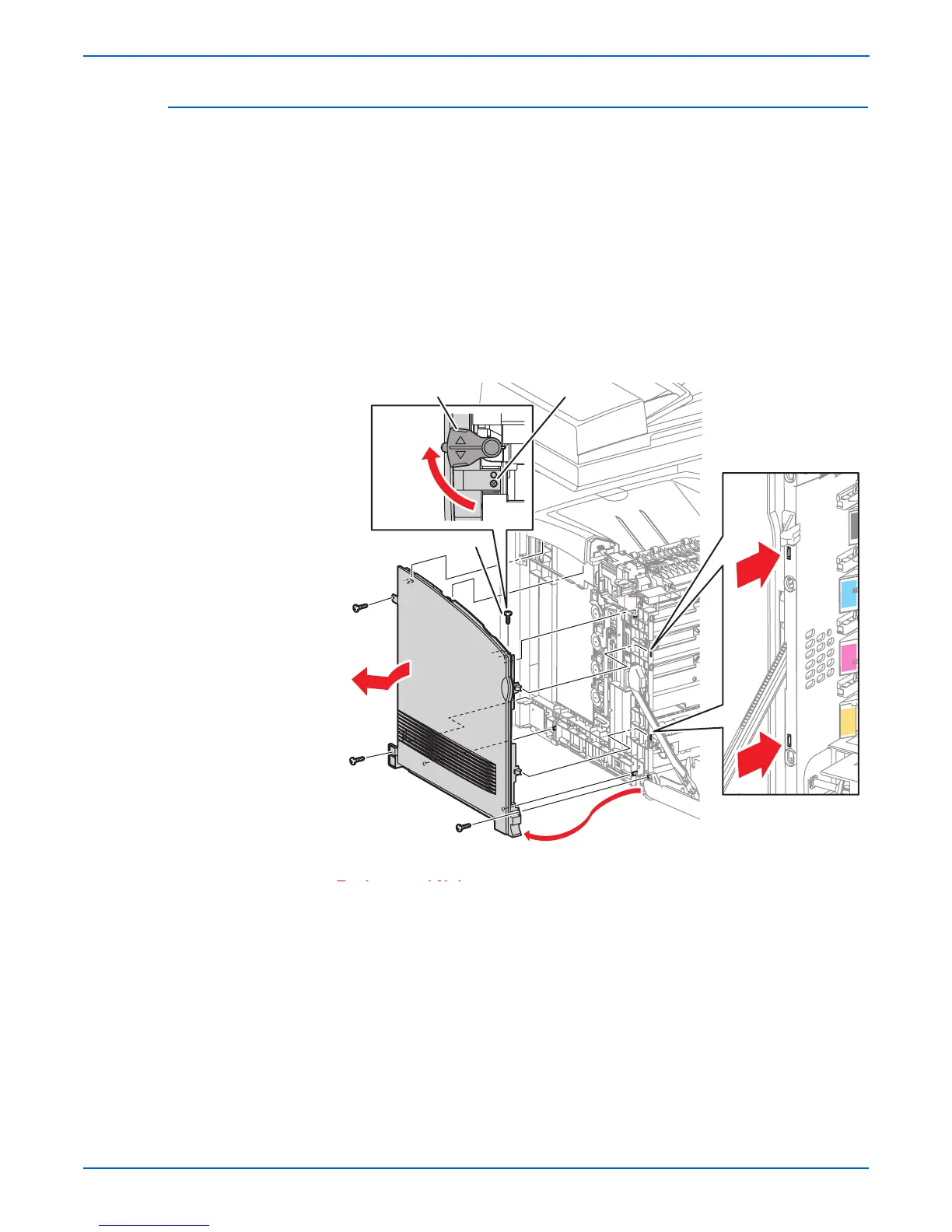

7. Remove 2 screws (10 mm) and 2 screws (6 mm) securing the Left Cover.
8. Release the Left Cover from the rear side while releasing the Cover from
the tab from the top front notch.
9. Slide the Left Cover outward and backward to remove it.
R
ep
l
acemen
t
N
o
t
e
R
ep
l
acemen
t
N
o
t
e
Insert the top and bottom tabs of the Left Side Cover at an angle in
order to fit the Left Side Cover in the correct position.
Be sure the notch on the printer frame is secured to the top tab of the
Left Cover.
s6180mfp-213
Lock Lever
Tab
Top View
6 mm
6 mm
10 mm
10 mm
