Phaser 6180MFP Multifunction Printer Service Manual 8-37
Service Parts Disassembly

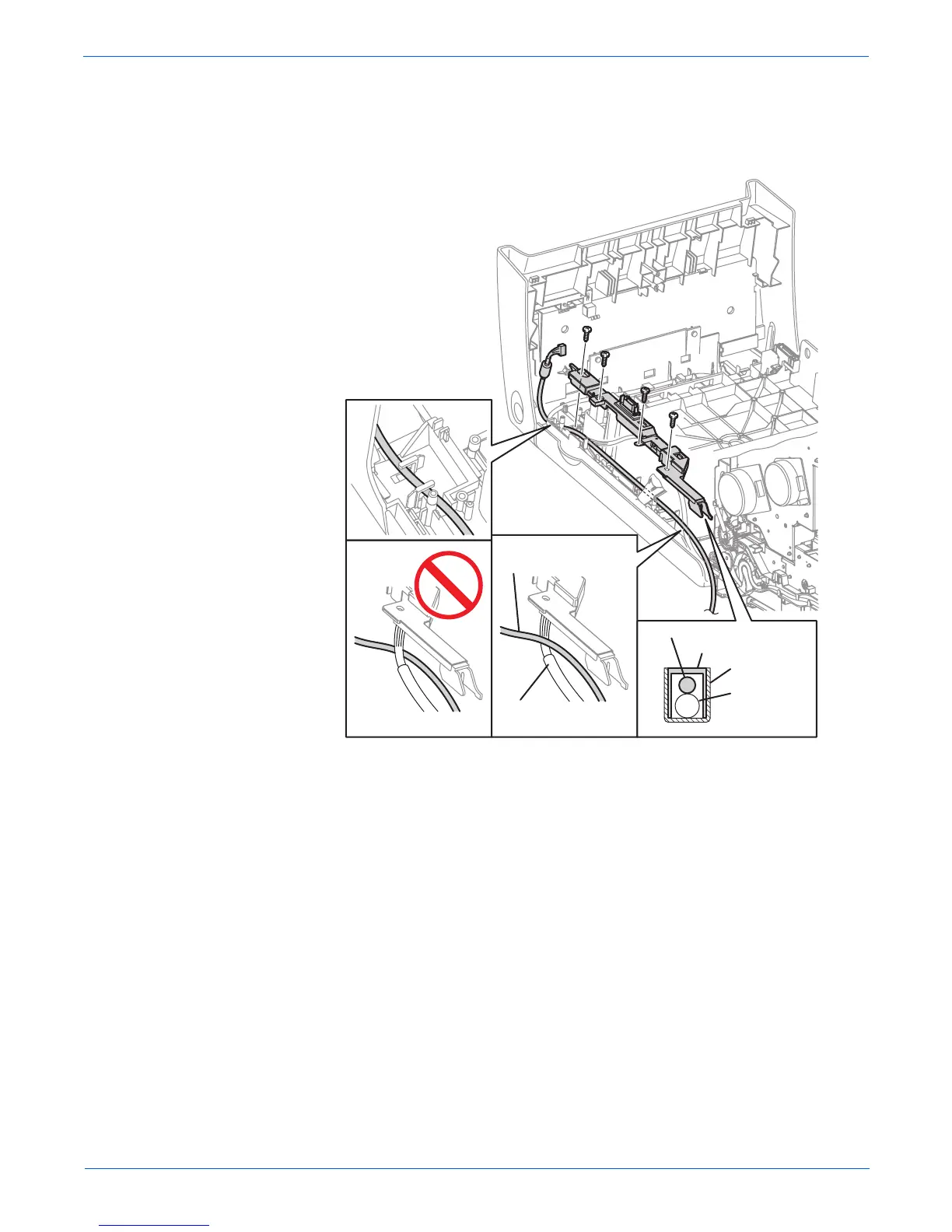

11. Remove 4 screws (8 mm) securing the Harness Cover (PL1.2.7) to the
Front Cover.
12. Remove the Harness Cover from the Front Cover.
13. Remove the A-OP-OPP Wiring Harness from the Front Cover.
s6180mfp-411
12)
12)
Harness Assembly
A-OP-OPP
Front Cover
Harness Assembly
Front Cover
Harness
Assembly
Harness Assy A-OP-OPP
Harness Cover
Pivot Bracket
