Phaser 6180MFP Multifunction Printer Service Manual 8-93
Service Parts Disassembly

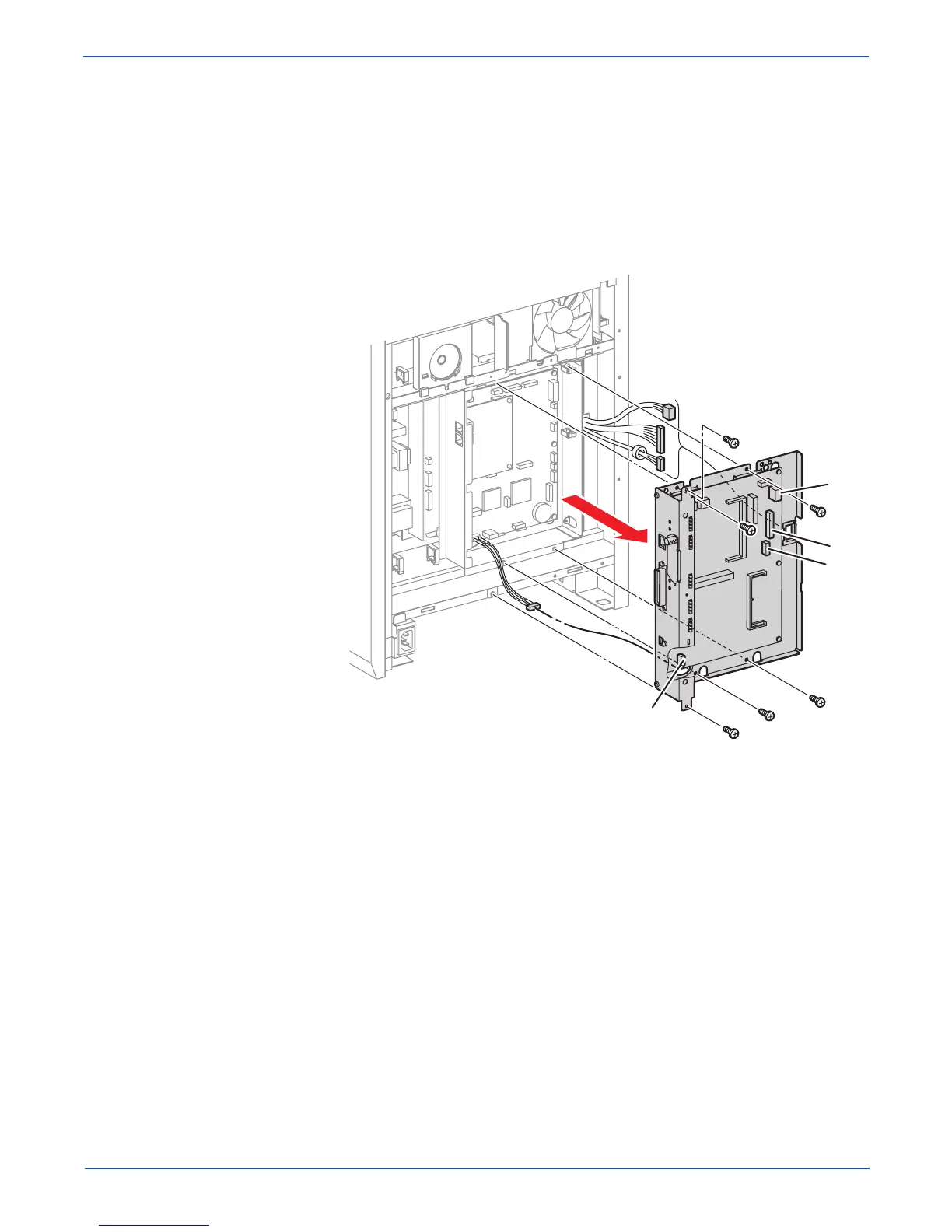

8. Disconnect all the Image Processor Board (PL9.1.20) connectors.
9. Remove 6 screws (6 mm) securing the Controller Shield to the printer.
10. Slightly pull out the Controller Shield forward and release the 3 wiring
harnesses on the right side from the LES-1017 Saddle Clamp (PL9.1.19).
11. Disconnect the Controller AIO-ESS wiring harness (PL10.1.14) from the
Image Processor Board.
12. Release the wiring harness clip to remove the wiring harnesses from the
Controller Shield Box Assembly. Remove the Controller Shield together
with the Image Processor Board.
s6180mfp-375
P101
P111
P480
P401
To Next Page
