Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 2-53
Theory of Operation

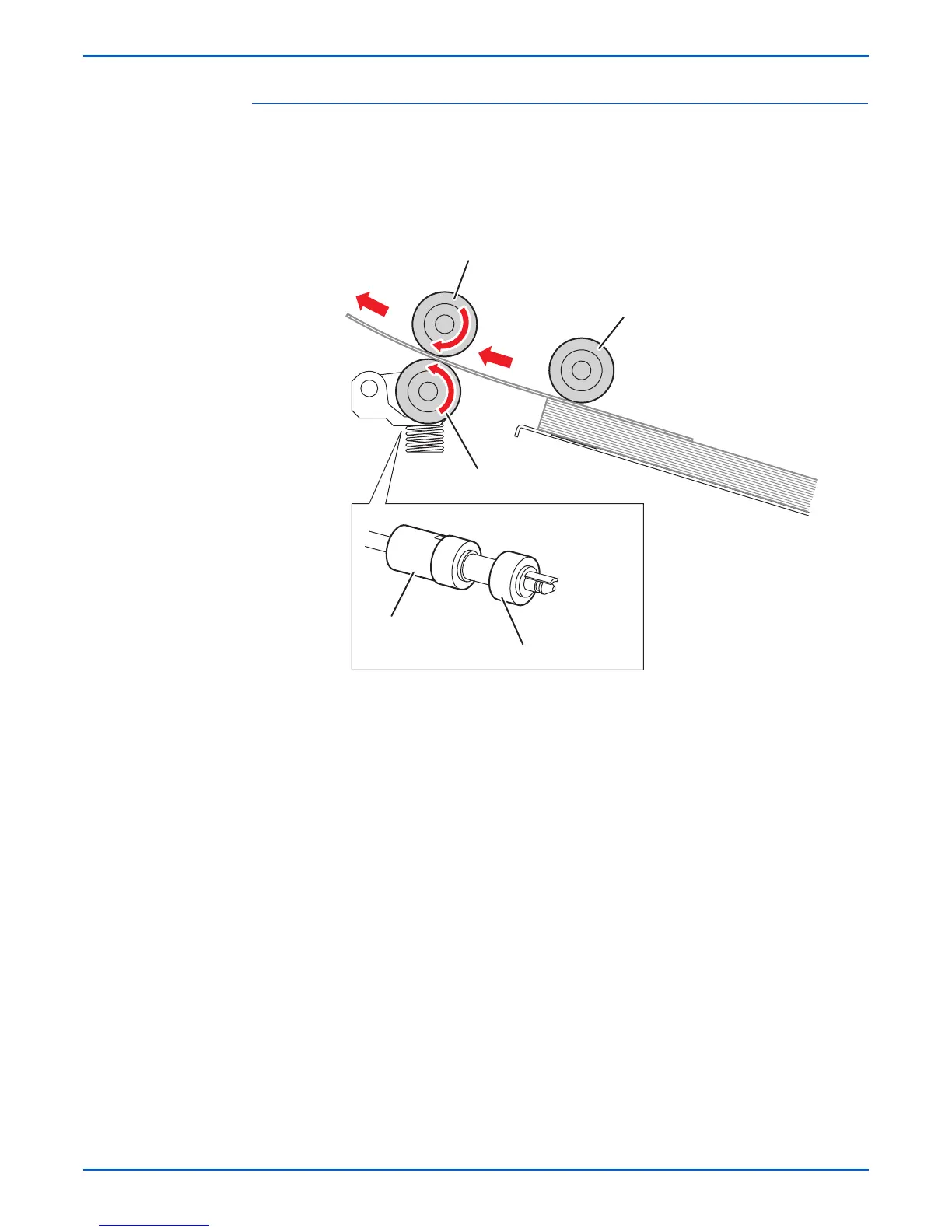

Tray 3 Multiple Sheet Feed Prevention
The sheets loaded in Tray 3 are occasionally stuck together along the edges,
which can cause a multiple sheet feed or a jam. The Nudger Roller feeds the
sheets to a position between the Feed Roller and the Retard Roller. Normally,
when only one sheet is fed, both the Feed Roller and Retard Roller rotate to
allow the sheet to pass.
s6180mfp-085
Feed Roller (Takeaway Roller)
Feed Roller (Nudger Roller)
Retard Roller (Separator)
Retard Roller (Separator)
Friction Clutch
Single Feed

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
