Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 2-83
Theory of Operation

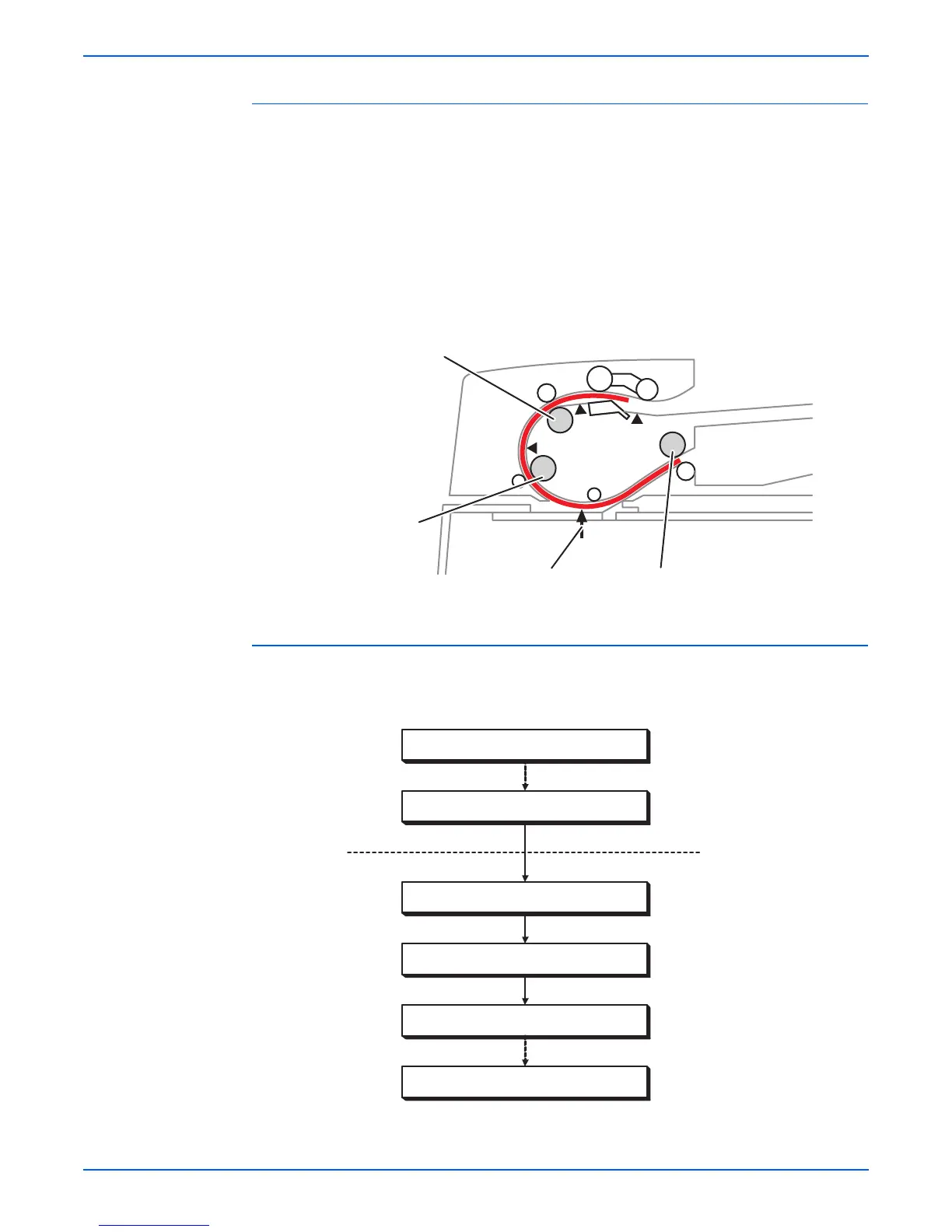

Simplex Document
For simplex document, media feed is performed as follows:
1. The media is fed to the Takeaway Roller, the Registration Roller, and then
fed to the scan feed reference position.
2. The media is fed to the Registration Roller, and then fed to the scan feed
reference position.
3. The media is fed at the feed speed corresponding to the selected
magnification, and the image on it is scanned with the Exposure Lamp at
the CVT position.
4. As the image is scanned, the media is fed and ejected by the Exit Roller
that is driven by the ADF Motor.
Image Data Flow
The image data from the media set on the Scanner or ADF goes through the
following components before it is printed at the Engine section.
s6180mfp-092
Registration
Roller
Exit RollerCVT Position
Takeaway Roller
Media
CCD Image Sensor (Scanner Assy)
Scanner Controller Board
Controller (Image Processor Board)
Laser Unit
Drum (CRU)
Scanner
Engine
s6180mfp-095

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
