Xerox Phaser 6180MFP Service Manual

2-104 Phaser 6180MFP Multifunction Printer Service Manual
Theory of Operation
Overview of Protocol Monitor
Protocol Monitor allows the user to monitor and print the transmission/
reception records of signals during a G3 fax session that is in conformance to
the ITU-T Recommendation T.30, thereby helping to isolate fax
communication issues.
Protocol Monitor covers the following sequence of a fax session:
■ Sending side: From the detection of incoming CED signal to the
transmission of DCN signal.
■ Receiving side: From the transmission of CED signal to the detection of
incoming DCN signal.

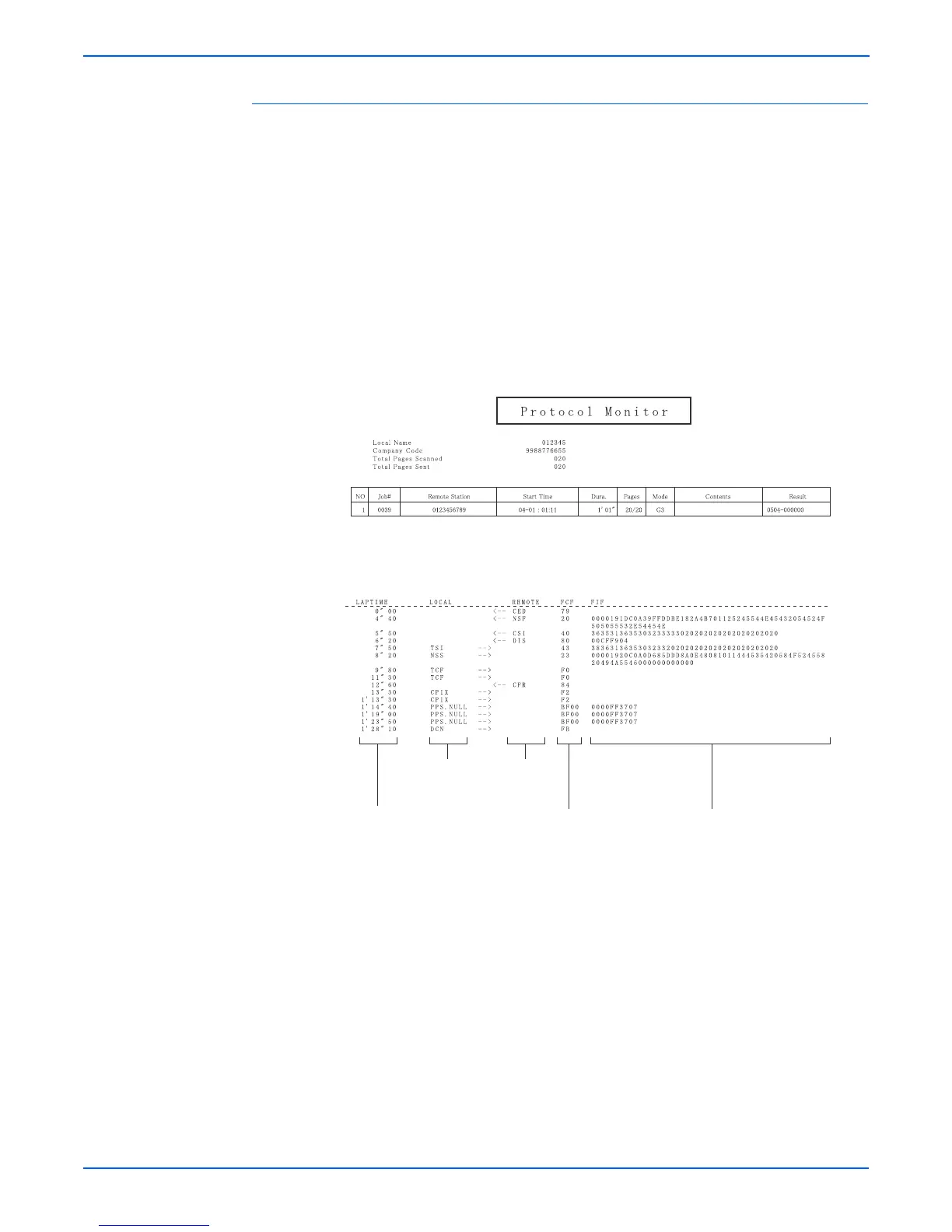

The following example provides a Protocol Monitor report sample with the
descriptions of signals handled by Protocol Monitor.
Time passed
since the
communication
started.
Signal sent
from this
station.
Signal received
from the other
station.
Facsimile control field:
8bit information that
identifies each signal
by type.
Facsimile information field:
Information regarding the
content of each signal.
s6180mfp-430

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
