Xerox Phaser 6180MFP Service Manual

1-10 Phaser 6180MFP Multifunction Printer Service Manual
General Information

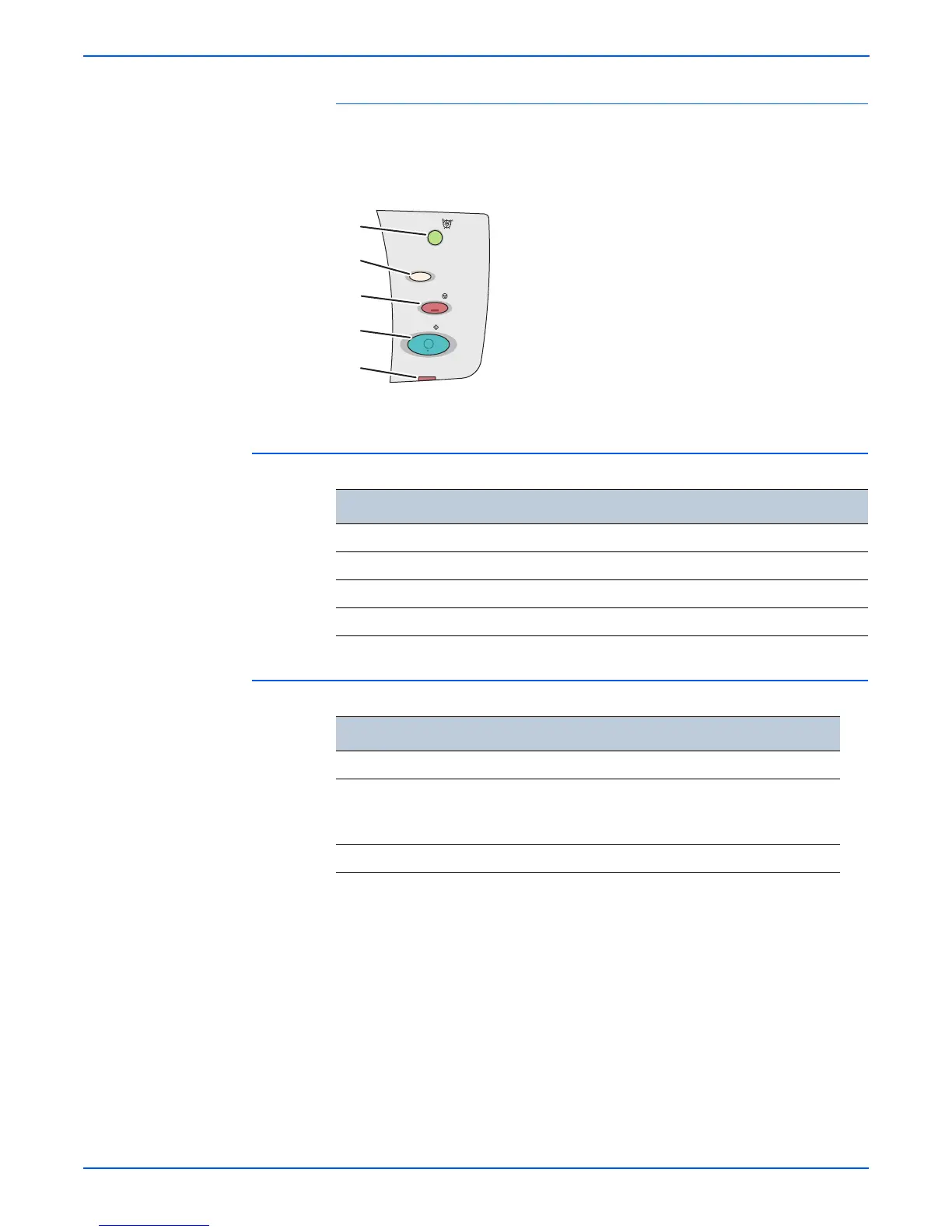

Control Panel - Right Side
The right side of the Control Panel contains the Start, Stop, Error, Clear All,
Wake Up buttons, and Error LED.
LED Indicators
Control Panel Shortcuts
1. Wake Up button – This light is On in Power Saver
mode. Press the button to exit the Power Saver
mode.
2. Clear All button – Clears job and returns to the
default main menu. All job settings are reset to
default when the button is pressed.
3. Stop button – Cancels the current Print, Copy, Scan,
or Fax job.
4. Start button – Starts the Copy, Scan, or Fax job.
5. Error – Red light indicates an error has occurred.
LED State Printer State
Green Ready to Print or in Power Saver mode
Flashing Green Processing print job
Red Error occurs, can be fixed by user
Flashing Red Error occurs, cannot be fixed by user
Function Buttons Pressed at Power On
Enter Service Diagnostics Up + Down Arrow buttons
Reset Password to 0000
(used when the Control Panel menus
are locked)
Menu
Boot Controller Update Up + Down + OK buttons
Clear All
Error
Wake Up
Stop
Start
s6180mfp-382
1
2
3
4
5

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
