Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 6-9
Adjustments and Calibrations
6. Enter the value using the numbers provided underneath the Scanner.
■ Index[Hex]: 00
■ Value[Hex]:
N
o
t
e
Use the Left and Right Arrow buttons to move the cursor. Use the Up
and Down Arrow buttons to change the value.
a. Enter the Index information and press the OK button.
b. The Value is displayed with an “*”, which should match the provided
value from the table. Ensure to confirm that there is an “*” in front of
the Value number. This represents the value has been updated and
saved.
Examples:
■ Index[Hex]: 04
■ Value[Hex]: *52
c. Press the Exit button to return to the Parameter screen. Continue to
enter the Index and Value information using the provided scanner
calibration information.

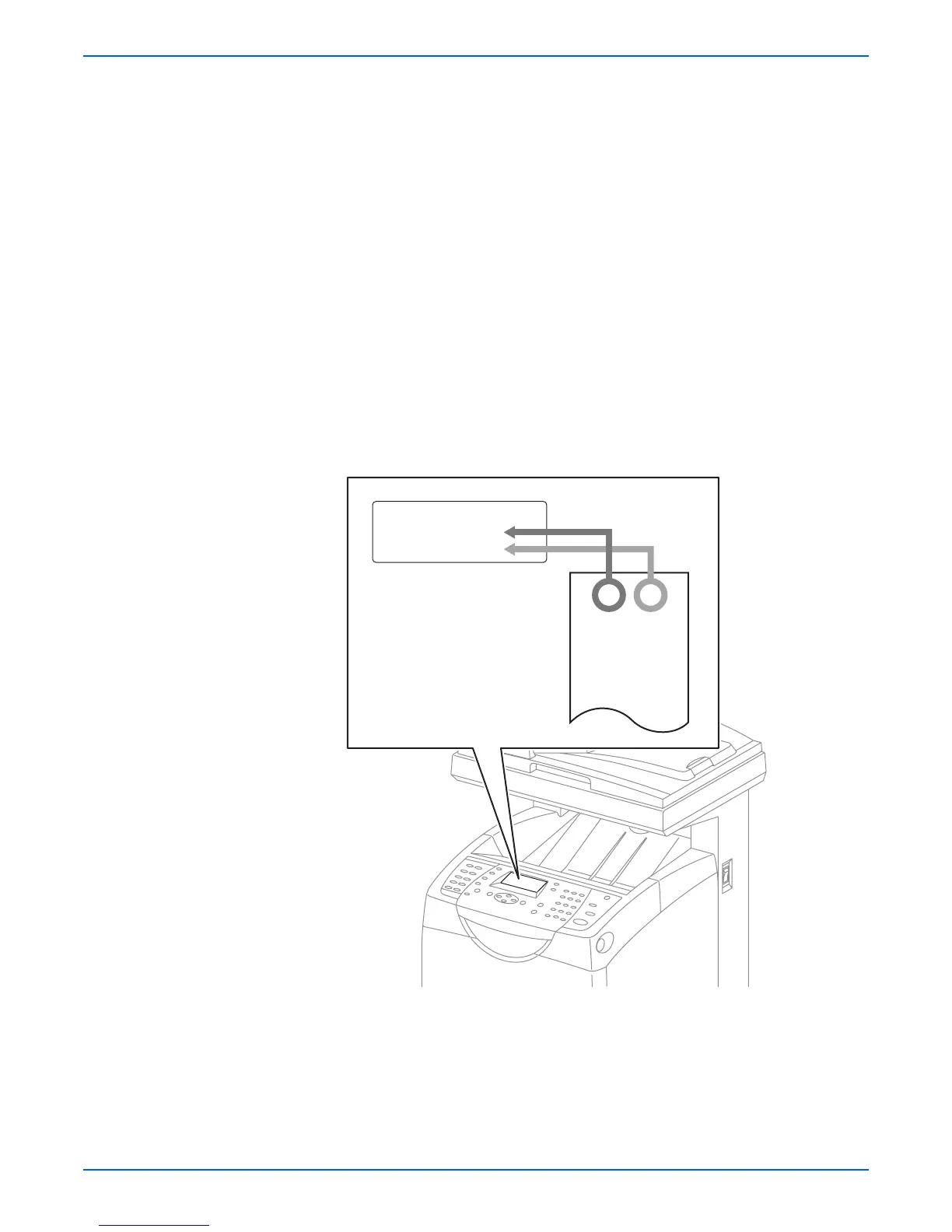

s6180mfp-422
Parameter
Index (Hex) : 04
Value (Hex) : 51
04 : 51
05 : 28
06 : 1E
07 : 24
08 : 34
09 : 21
0A : 1F

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
