Phaser 6180MFP Multifunction Printer Service Manual 1-33
General Information

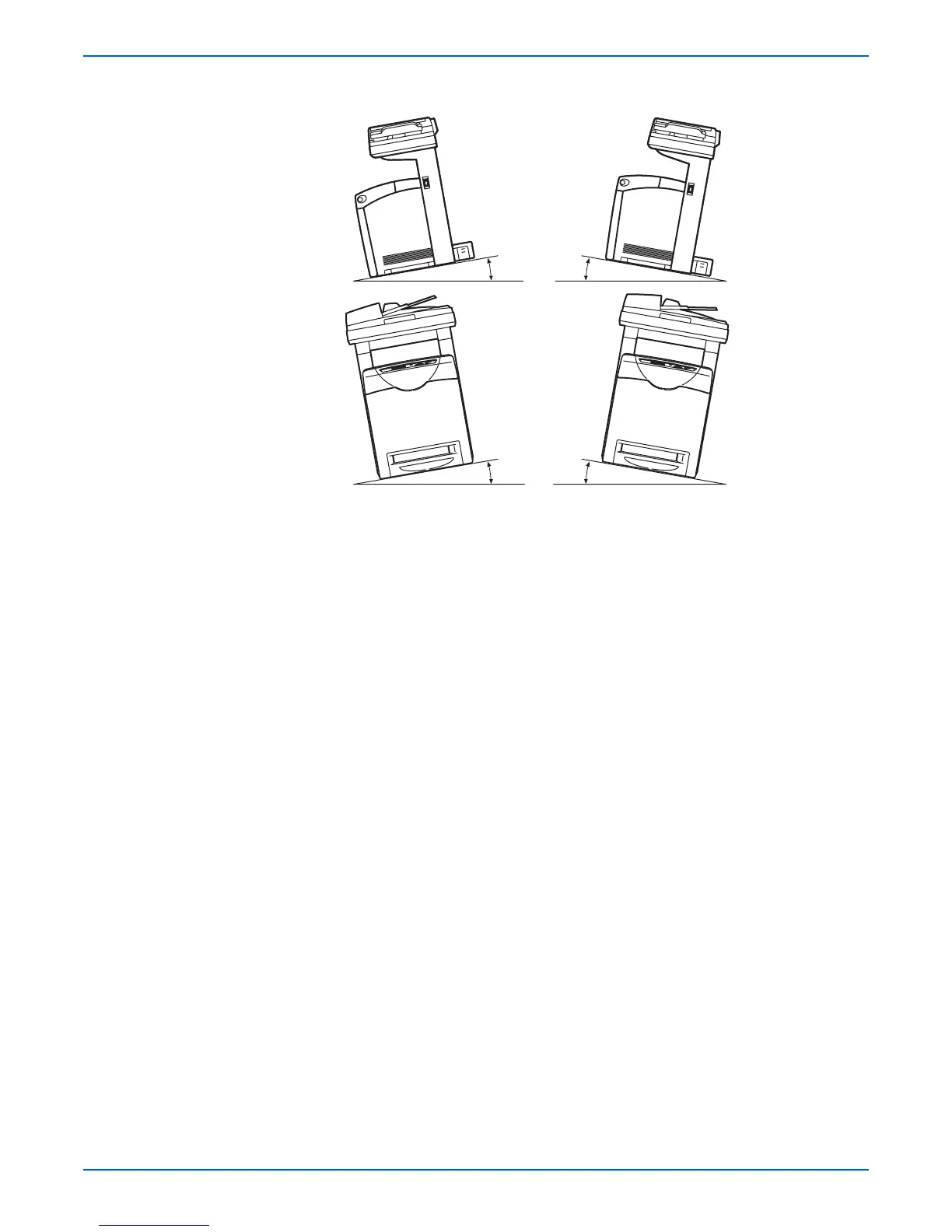

3. The printer must not be tipped or tilted more than 7 mm.
Failure to adhere to the specified mounting specifications will void all
guarantees of print-quality and/or performance. Known problems that can
occur as a result of exceeding the mounting surface specifications are:
■ Color-to-Color mis-registration, primarily in the horizontal (laser scan)
direction.
■ A smear or line of toner approximately 40 mm from the training edge of
the print.
s6180mfp-140
10° or 7 mm
(2.75 in.)
10° or 7 mm
(2.75 in.)
