CHAPTER57 Reporting Information to External Party
Mediant 1000 Gateway & E-SBC | User's Manual
● Call originator (i.e., caller)
● Call duration
● Call time
■ For Gateway calls, the CDR includes both media and signaling CDR fields. The CDR can be
one of the following report types (CDRReportType field), depending at which stage of the SIP
dialog it was sent:
● "CALL_START": CDR is sent upon an INVITE message.
● "CALL_CONNECT": CDR is sent upon a 200 OK response (i.e., call is established).
● "CALL_END": CDR is sent upon a BYE message (i.e., call ends).
The CDR Report Types and the SIP dialog stages are shown in the following figure:

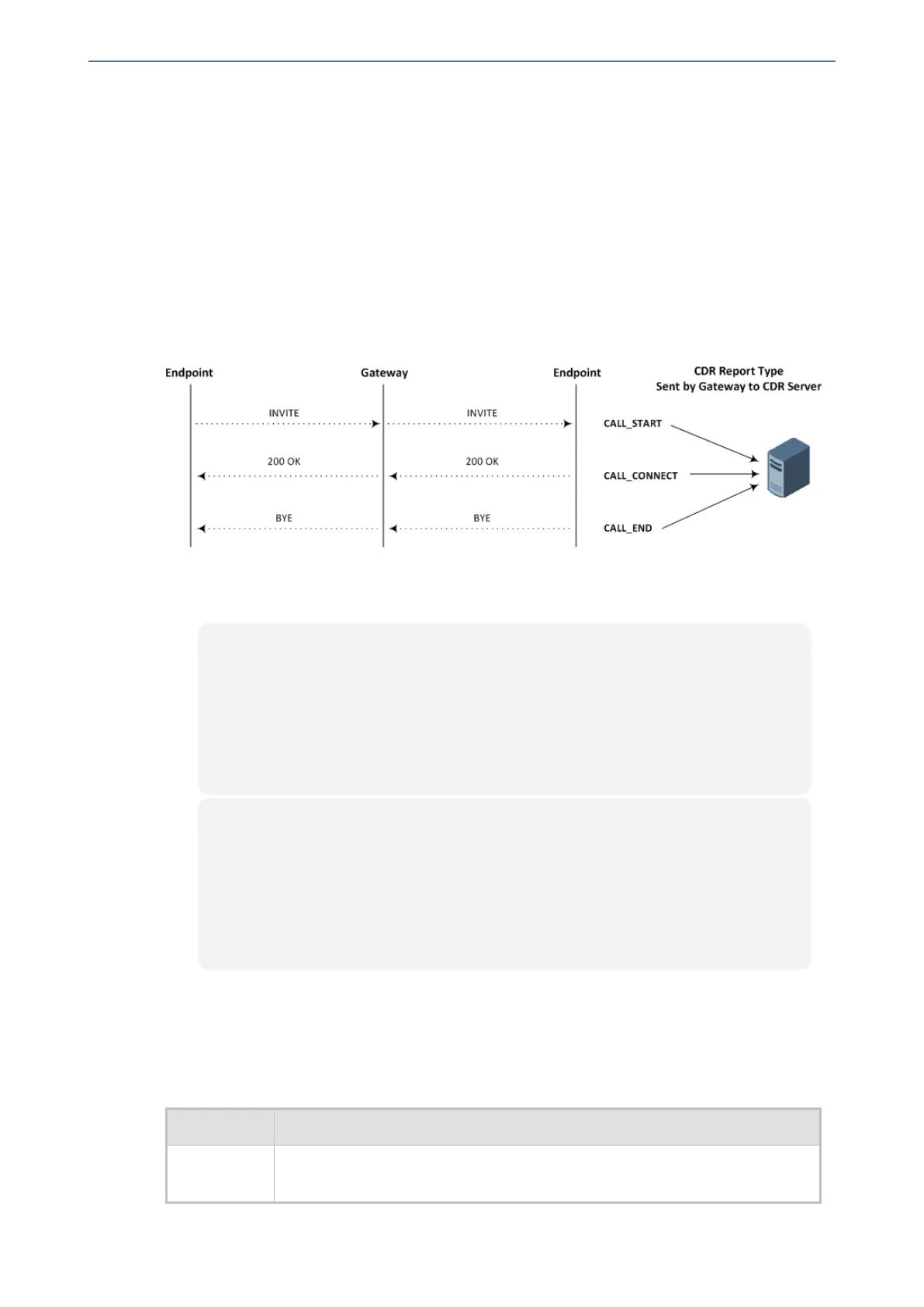

Figure 57-3: Gateway CDR Report Types
The Syslog displays CDRs in tabular format, whereby the CDR field names are displayed on the
first lines and their corresponding values on the subsequent lines, as shown in the example below
of an SBC signaling CDR sent at the end of a normally terminated call:
[S=40] |CDRReportType |EPTyp |SIPCallId |SessionId |Orig |SourceIp |SourcePort
|DestIp |DestPort |TransportType |SrcURI |SrcURIBeforeMap |DstURI
|DstURIBeforeMap |Durat |TrmSd |TrmReason |TrmReasonCategory |SetupTime
|ConnectTime |ReleaseTime |RedirectReason |RedirectURINum
|RedirectURINumBeforeMap |TxSigIPDiffServ|IPGroup (description) |SrdId (name)
|SIPInterfaceId (name) |ProxySetId (name) |IpProfileId (name) |MediaRealmId (name)
|DirectMedia |SIPTrmReason |SIPTermDesc |Caller |Callee
[S=40] |CALL_END |SBC |20767593291410201017029@10.33.45.80
|1871197419|LCL |10.33.45.80 |5060 |10.33.45.72 |5060 |UDP |9001@10.8.8.10
|9001@10.8.8.10 |6001@10.33.45.80 |6001@10.33.45.80 |15 |LCL |GWAPP_
NORMAL_CALL_CLEAR |NORMAL_CALL_CLEAR |17:00:29.954 UTC Thu Oct 14
2014 |17:00:49.052 UTC Thu Oct 14 2014 |17:01:04.953 UTC Thu Oct 14 2014 |-1 | |
|40 |1 |0 (SRD_GW) |1 |1 |1 () |0 (MR_1) |no |BYE |Q.850 ;cause=16 ;text="loc |user
9928019 |
If all CDR field values are within a specific number of characters, they appear aligned under their
corresponding field names. However, if some of the values exceed their specific number of
characters for Syslog tabular alignment, the values do not appear fully aligned with their
corresponding field names. The maximum number of characters for Syslog tabular alignment are
given in the table below.
Table 57-2: CDR Field Descriptions
Field Description
Accounting
Status Type
Displays the CDR Report Type in numeric representation (integer), used
mainly for the RADIUS Accounting Status Type attribute (40):
- 980 -
