CHAPTER65 Testing SIP Signaling Calls
Mediant 1000 Gateway & E-SBC | User's Manual
◆ Called URI: "201"
◆ Route By: Dest Address
◆ Destination Address: "10.13.4.12"
◆ SIP Interface: SIPInterface_0
◆ Call Party: Caller
◆ Maximum Channels for Session: "3" (configures three endpoints - "101", "102" and
"103)
◆ Call Duration: "5" (seconds)
◆ Calls per Sec: "1"
◆ Test Mode: Continuous
◆ Test Duration: "3" (minutes)
◆ Schedule Interval: "180" (minutes)
● Test Call Rules table configuration at Device B:
◆ Endpoint URI: "201"
◆ Maximum Channels for Session: "3" (configures three endpoints - "201", "202" and
"203)

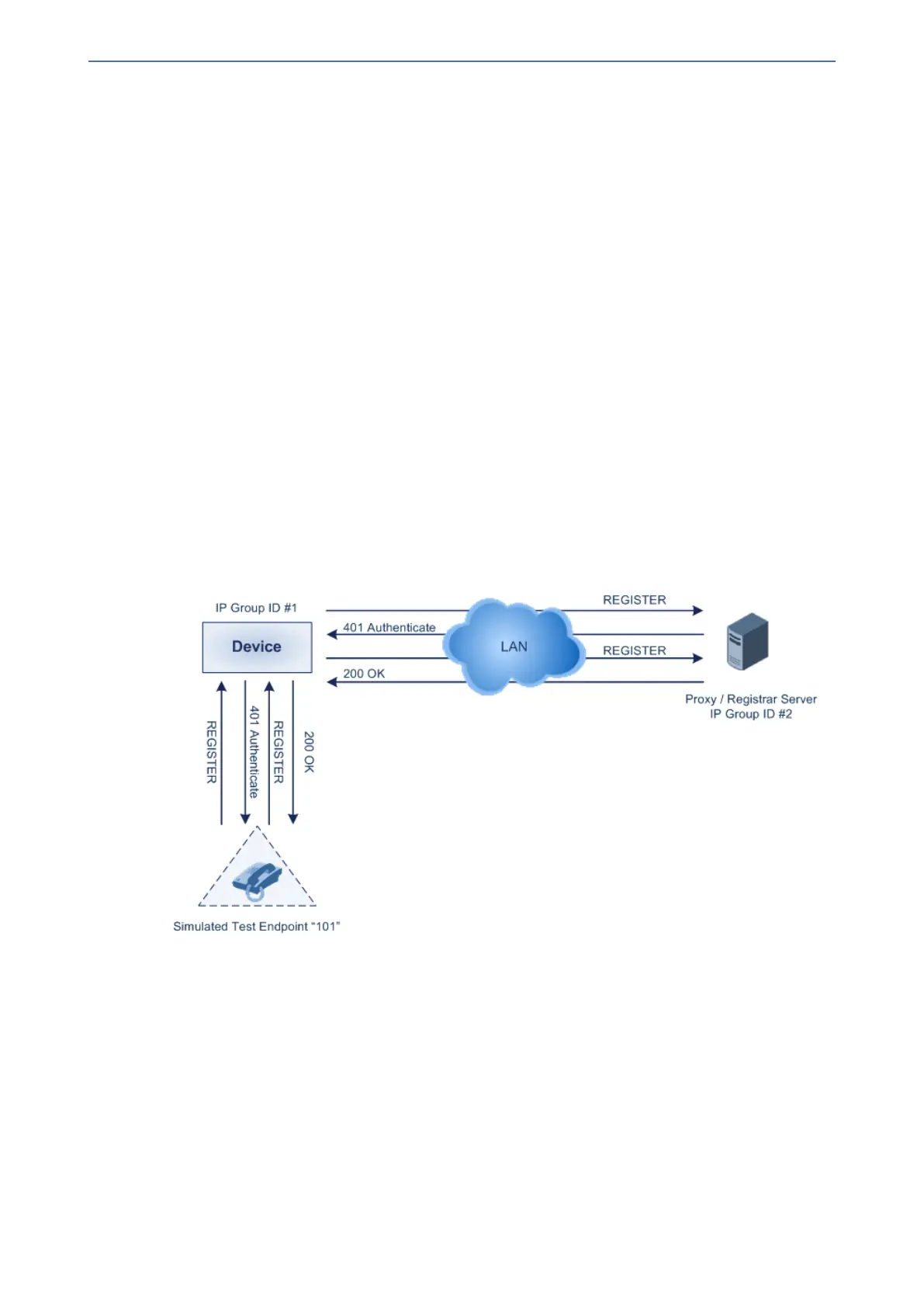

■ Registration Test Call Scenario: This example describes the configuration for testing the
registration and authentication (i.e., username and pas,sword) process of a simulated test
endpoint on the device with an external proxy/registrar server. This is useful, for example, for
verifying that endpoints located in the LAN can register with an external proxy and
subsequently, communicate with one another.
This example assumes that you have configured your device for communication between LAN
phone users such as IP Groups to represent the device (10.13.4.12) and the proxy server, and
IP-to-IP routing rules to route calls between these IP Groups.
● Test Call Rules table configuration:
◆ Endpoint URI: "101"
◆ Called URI: "itsp"
◆ Route By: Dest Address
◆ Destination Address: "10.13.4.12" (this is the IP address of the device itself)
◆ SIP Interface: SIPInterface_0
◆ Auto Register: Enable
◆ User Name: "testuser"
- 1082 -
