■ (SBC application only) IP-to-IP Routing rules for specifying the destination SIP Interface to
where you want to route the call. For more information, see Configuring SBC IP-to-IP Routing
Rules.
■ (SBC application only) Classification rules for specifying the SIP Interface as a matching
characteristic of the incoming call. This is especially useful for the single SRD-configuration
topology, where each SIP Interface represents a Layer-3 network (SIP entity). Therefore,
classification of calls to IP Groups (SIP entities) can be based on SIP Interface.
The SIP Interface can also be used for tag-based classification of incoming SIP dialogs if the
SIP Interface is configured with a Call Setup Rule Set ID that determines the source tag. For
more information, see Configuring Classification Based on Tags on page770.
For more information on classification, see Configuring Classification Rules.
■ (Gateway application only) Tel-to-IP Routing rules for specifying the destination SIP Interface
to where you want to route Tel-to-IP calls. For more information, see Configuring Tel-to-IP
Routing Rules.
■ (Gateway application only) IP-to-Trunk Group Routing rules for specifying the SIP Interface as
a matching characteristics for the incoming IP call.
The device terminates active calls associated with a SIP Interface if you do one of the
following:
● Delete the associated SIP Interface.
● Edit any of the following fields of the associated SIP Interface: 'Application Type',
'UDP Port, 'TCP Port', 'TLS Port' or 'SRD' fields.
● Edit or delete a network interface in the IP Interfaces table that is associated with
the SIP Interface.
The following procedure describes how to configure SIP interfaces through the Web interface. You
can also configure it through ini file [SIPInterface] or CLI ( configure voip > sip-
interface).
➢ To configure a SIP Interface:
1. Open the SIP Interfaces table (Setup menu > Signaling & Media tab > Core Entities folder
> SIP Interfaces).

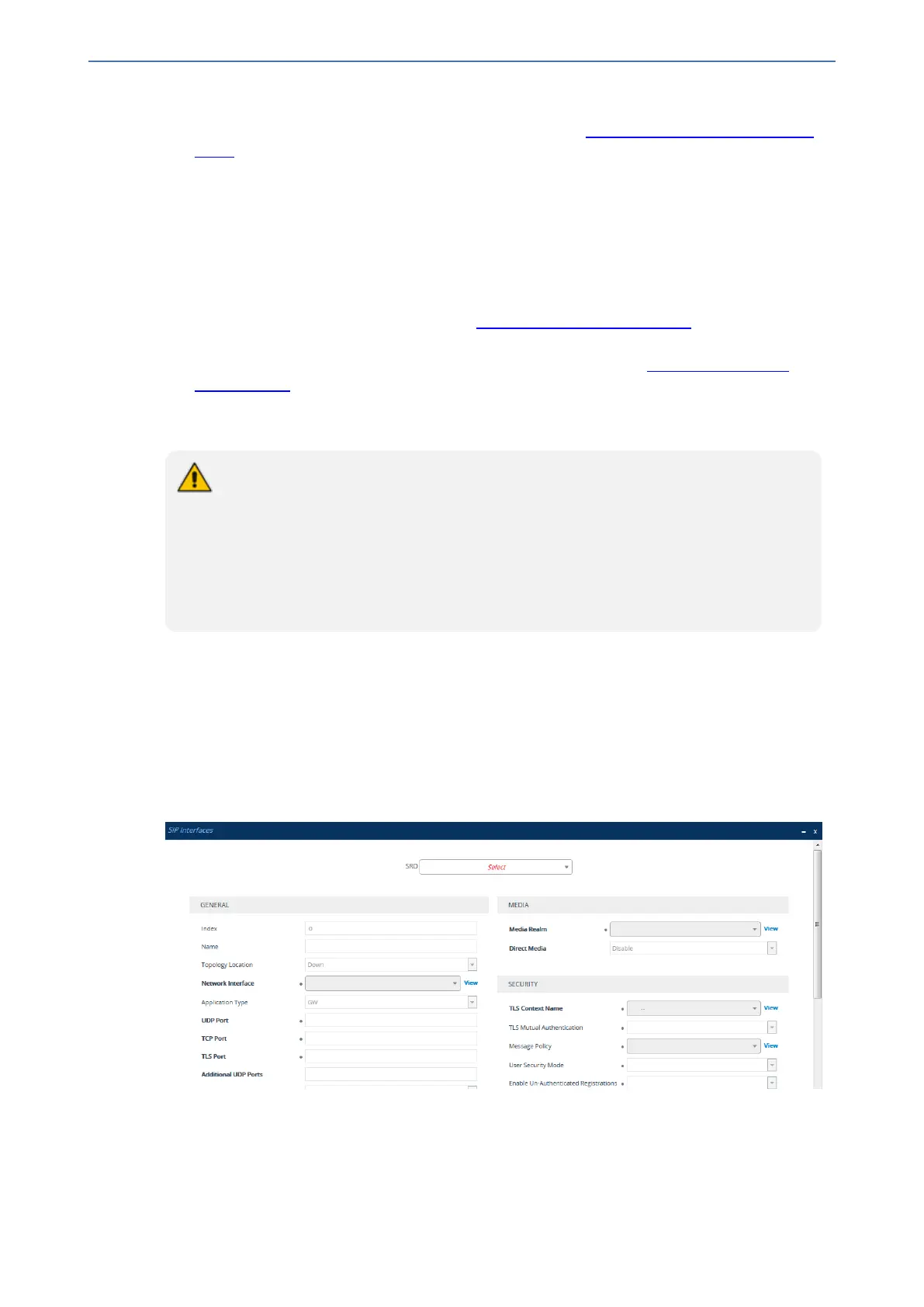

2. Click New; the following dialog box appears:
3. Configure a SIP Interface according to the parameters described in the table below.
4. Click Apply.
