Version 6.6 413 October 2014

Installation & Operation Manual 34. Performance Measurements

7. Unlock the Threshold Alarm to activate it.

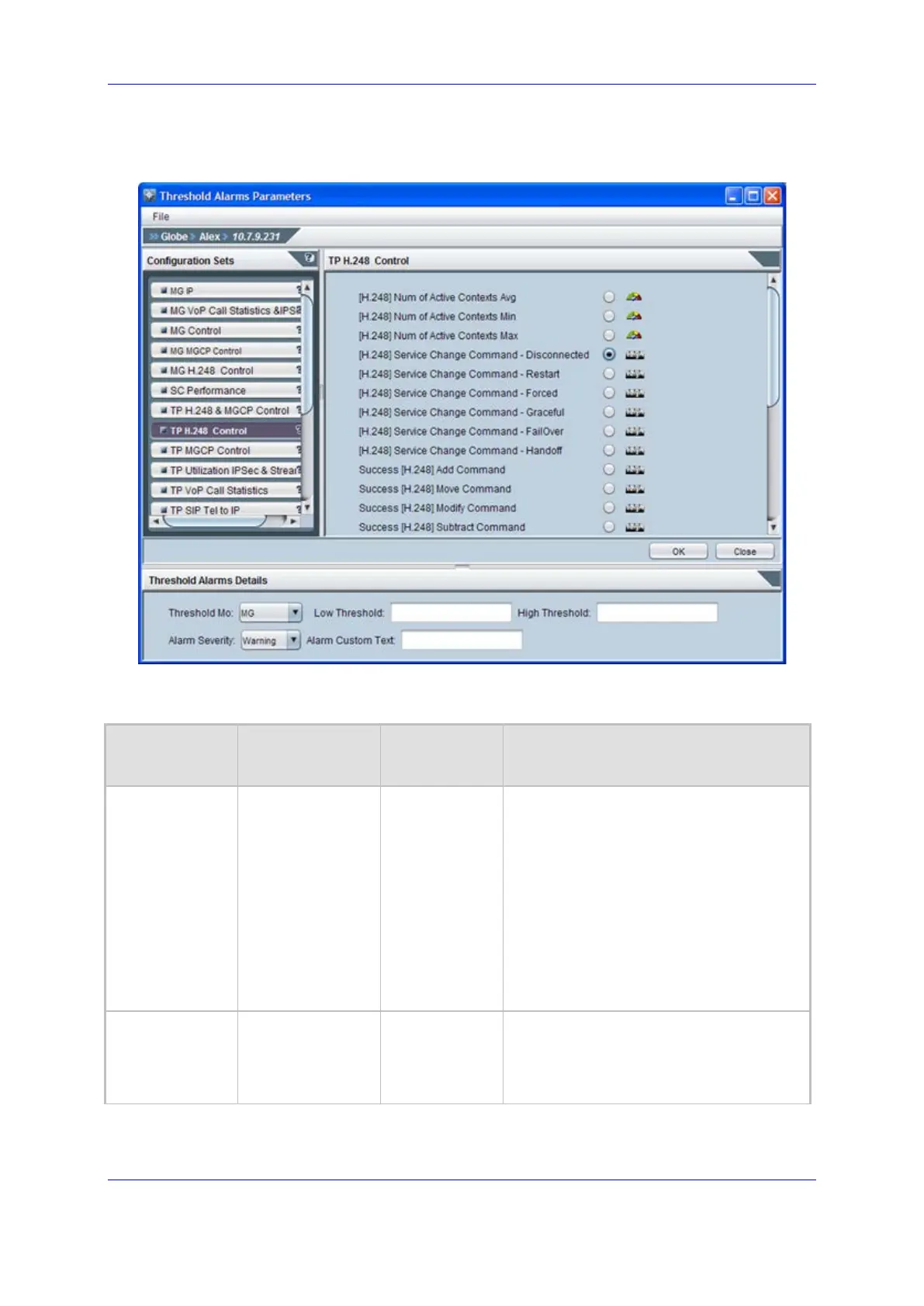

Figure

34-10: Threshold Alarms Parameters Screen

Table 34-1: PM Threshold Alarm Settings

Parameter Name Type

Provisioning

Type

Description

Threshold MO Enum. Online Defines the MO to which the threshold is

applied.

MG – threshold is applied to all PM

instances (e.g. in case of a History PM

parameter on Media GatewayMedia

Gateway boards, threshold is applied to all

boards)

Board#x – threshold is applied to PM

instances on a specific Media Gateway

board only.

High Threshold Counter64 Online Defines the high threshold value. When

the PM value exceeds the high threshold,

the corresponding Threshold Alarm is

raised.
